CLGR® Metric Collared Eyebolt BS 4278 Table 1

Name: CLGR® Metric Collared Eyebolt BS 4278 Table 1
Brand: CLGR®

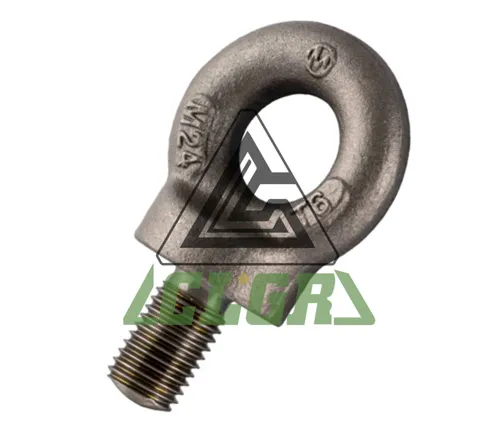

CLGR® Metric Collared Eyebolt BS 4278 Table 1, also called eye bolt metric collared.

Metric Collared Eyebolts BS 4278 Table 1 are typically used as removable lifting points where a rated female thread or nut is available. They can also serve as a termination for chains, wire ropes, and other assemblies when required.

Constructed from high-tensile steel 1045 and featuring a zinc-plated finish, these bolts are manufactured with a smaller eye compared to DIN-type bolts.

They conform to the BS4278 standard and are marked with the manufacturer's identification, axial and transverse working load limits in tonnes, direction indication arrows, thread type, nominal size, and batch number.

To Get A Quote >

Overview of CLGR® Metric Collared Eyebolt BS 4278 Table 1

Brand	CLGR®
Material	High Tensile Steel 1045
Processing	Forged + Machining + Quenched and Tempered
Finish	Self-color / Electric Galvanized
Size	6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 27mm 30mm, 33mm, 36mm, 39mm, 42mm, 45mm, 48mm, 52mm, 56mm, 64mm
Marking	Size, WLL& CE.
Note	Not recommended for lifting.

Specifications of CLGR® Metric Collared Eyebolt BS 4278 Table 1

drawing-clgr-of-metric-collared-eyebolt-bs-4278-table-1-china-supplier

Part No.	SWL	Dia. Thread	Dia. Base	Dia. Eye outside	Dia. Eye inside	thickness collar	height	Thread length	Weight each



		a	b	c	e	f	g	h
	t	mm							kg
CR-4278-T1-S-06	0.1	6	22	33	15	7	36	18	0.06
CR-4278-T1-S-08	0.15	8	22	33	15	7	36	18	0.06
CR-4278-T1-S-10	0.25	10	22	33	15	7	36	18	0.06
CR-4278-T1-S-12	0.4	12	22	33	15	7	36	18	0.06
CR-4278-T1-S-14	0.5	14	29	44	20	10	48	23	0.15
CR-4278-T1-S-16	0.8	16	29	44	20	10	48	23	0.15
CR-4278-T1-S-18	1	18	36	52	24	12	58	28	0.27
CR-4278-T1-S-20	1.6	20	40	59	27	14	65	32	0.38
CR-4278-T1-S-22	1.6	22	45	64	30	14	73	35	0.54
CR-4278-T1-S-24	2.5	24	52	77	35	17	84	40	0.85
CR-4278-T1-S-27	2.5	27	58	85	39	20	94	46	1.13
CR-4278-T1-S-30	4	30	65	96	44	22	106	51	1.62
CR-4278-T1-S-33	4	33	72	106	48	24	117	56	2.37
CR-4278-T1-S-36	6.3	36	81	118	54	27	131	63	3.12
CR-4278-T1-S-39	6.3	39	86	123	57	29	137	67	3.81
CR-4278-T1-S-42	8	42	101	148	68	34	164	79	6.27
CR-4278-T1-S-45	8	45	101	148	68	34	164	79	6.45
CR-4278-T1-S-48	10	48	101	148	68	34	164	79	6.51
CR-4278-T1-S-52	12.5	52	115	168	76	38	186	89	9.58
CR-4278-T1-S-56	16	56	128	188	86	43	208	100	12.99
CR-4278-T1-S-64	20	64	144	212	96	48	234	112	18.2

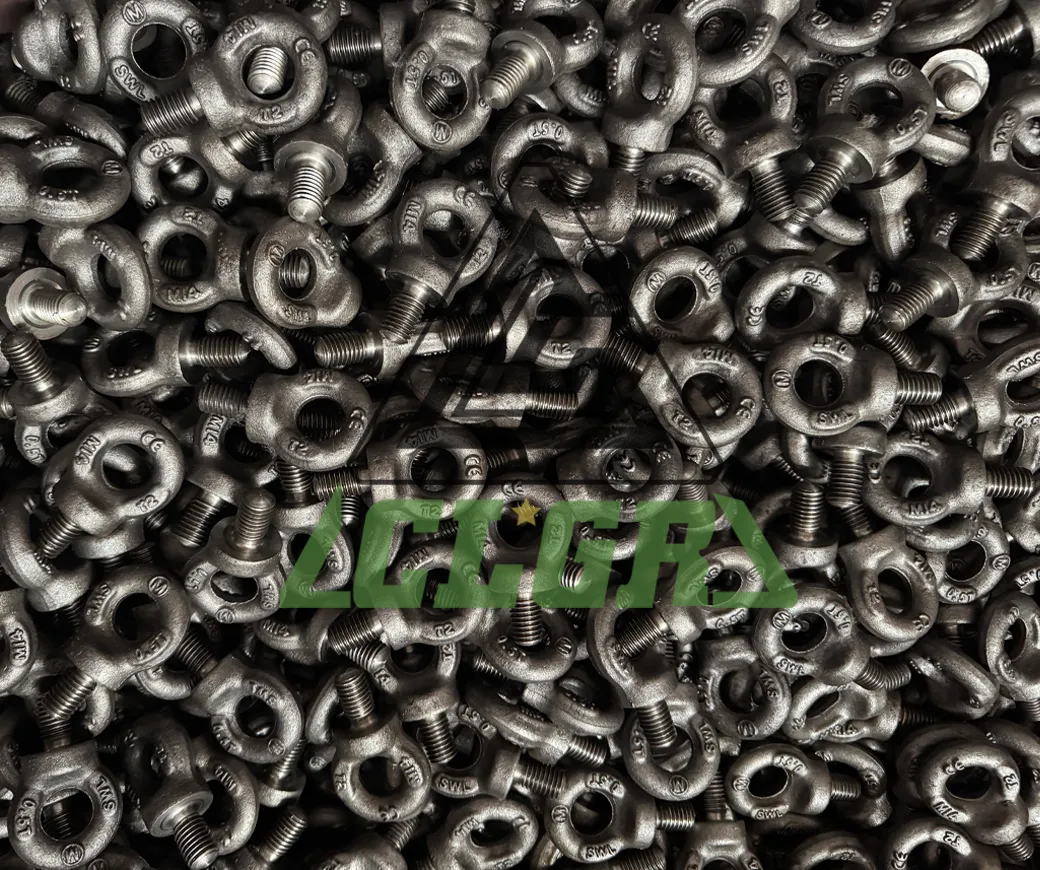

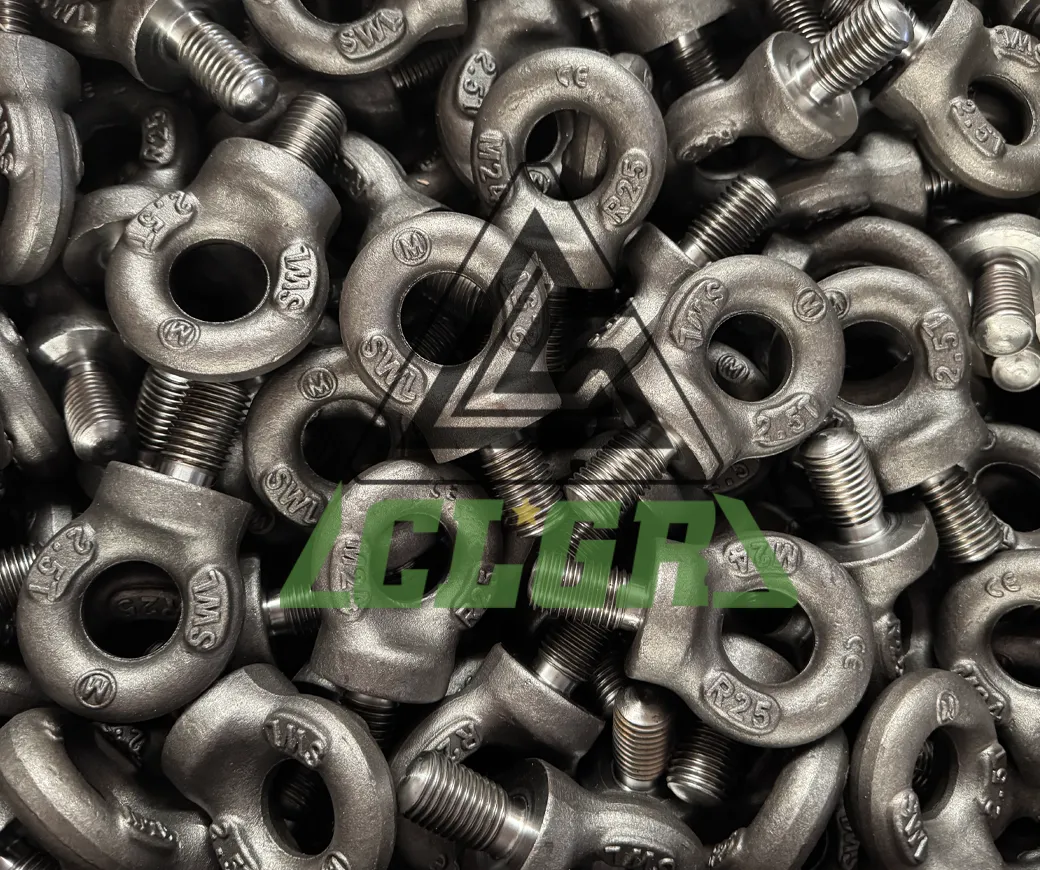

Bulk Photos of Metric Collared Eyebolt BS 4278 Table 1
