CLGR® Lag Screw Eye Bolt, Welded

Name: CLGR® Lag Screw Eye Bolt, Welded
Brand: CLGR®

CLGR® Lag Screw Eye Bolt, Welded also known as Bolt with Round Ring.

Our Welded Lag Screw Eye Bolts provide heavy-duty anchoring solutions for wood applications, featuring carbon steel construction with galvanized coating and deep-cut lag threads for superior grip.

These bolts are ideal for securing docks and marine equipment, fastening structural timbers in construction, installing heavy-duty fencing, and anchoring playground equipment.

Available in 5/8", 3/4" and 1" sizes, they offer reliable connection points for industrial and residential projects where strong wood fastening is required.

Important: These are for anchoring purposes only and not rated for overhead lifting applications.

To Get A Quote >

Overview of Lag Screw Eye Bolt, Welded

Brand	CLGR®
Origin	China
Material	Carbon steel
Processing	Forged
Finish	Surface treatment for lag screw Eye bolt: Galvanized or according to your requirements.
Size	5/8"x 3-7/8", 3/4"x 3-1/8", 1"x 3-1/2" Lag Eye Bolt, Lag Screw Eyes, Lag Screw Eye Bolts.
Lag Thread	Lag screw threads
Tips	Designed for anchoring applications in wood and is NOT RATED FOR OVERHEAD LIFTING.
Application	Designed for home and industrial applications.

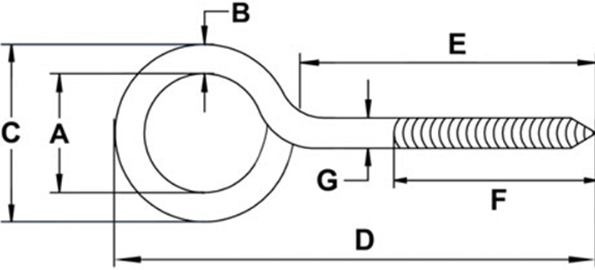

Specifications of Lag Screw Eye Bolt, Welded

Part.No.	Size	Weight (lbs)	A	B	C	D	E	F	G
CRLSEBW101	5/8″ × 3-7/8″	0.1	0.645	0.249	1.133	3.98	2.648	1.868	0.249
CRLSEBW102	3/4″ × 3-1/8″	0.1	0.773	0.271	1.309	3.115	1.614	1.059	0.285
CRLSEBW103	1″ × 3-1/2″	0.14	0.995	0.29	1.574	3.63	1.905	1.561	0.296
