CLGR® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

Name: CLGR® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel
Brand: CLGR®

CLGR® JIS 1168 Eye Bolt Forged Galvanized Carbon Steel also known as JIS B 1168 Eye Bolt, lifting eye bolt.

Our JIS 1168 Eye Bolt certified eye bolts deliver reliable lifting solutions for industrial and marine applications. Manufactured from high-grade carbon steel through drop forging, they ensure exceptional strength and durability.

Available in sizes from M8 to M100 with multiple finish options including yellow chromate, zinc plating, and hot-dip galvanizing.

These eye bolts are ideal for wire rope fittings, chain connections, and marine hardware applications.

All products undergo rigorous quality control with custom sizes and finishes available upon request.

To Get A Quote >

jis 1168 eye bolt forged galvanized carbon steel

jis 1168 eye bolt forged galvanized carbon steel china wholesale

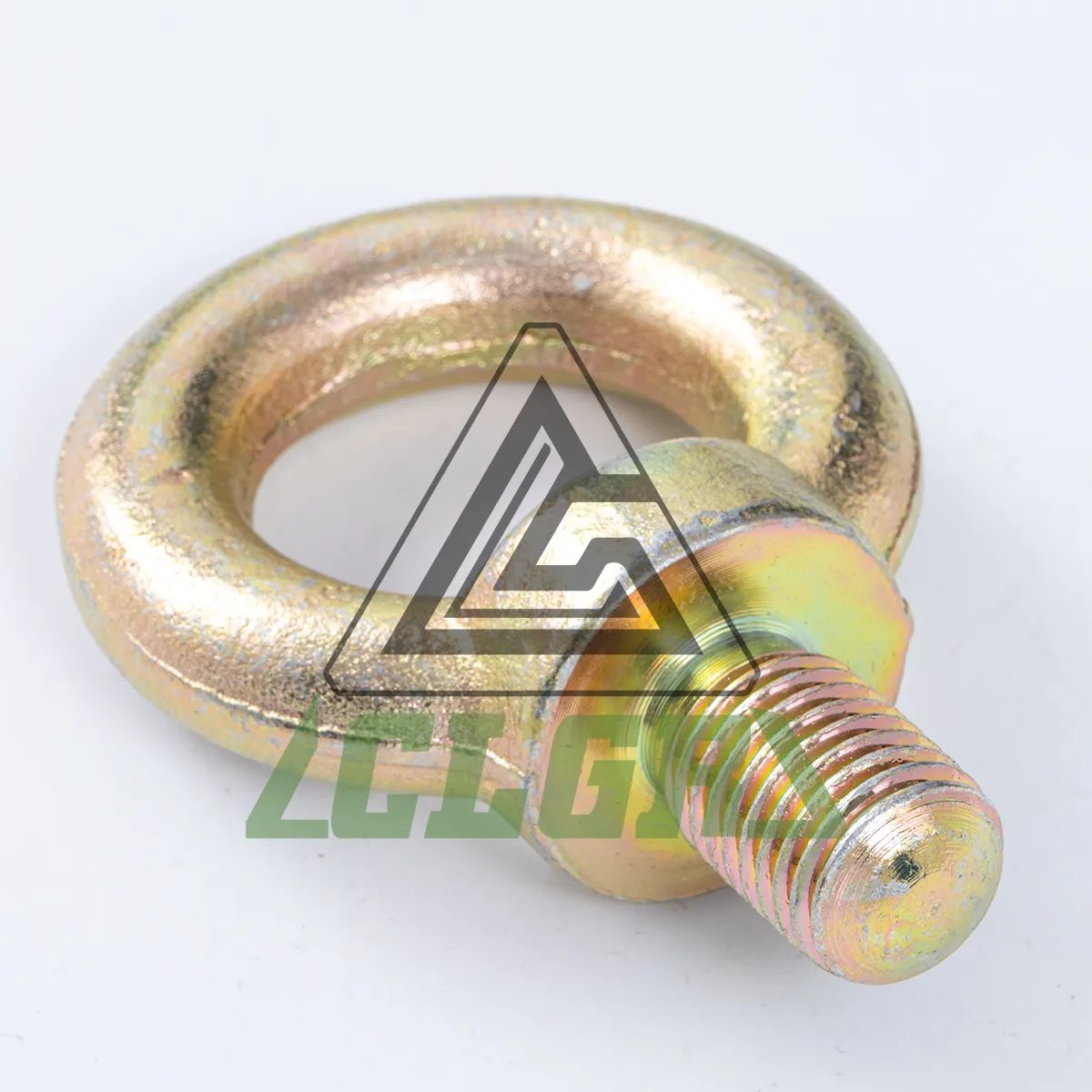

jis 1168 eye bolt forged galvanized carbon steel china supplier

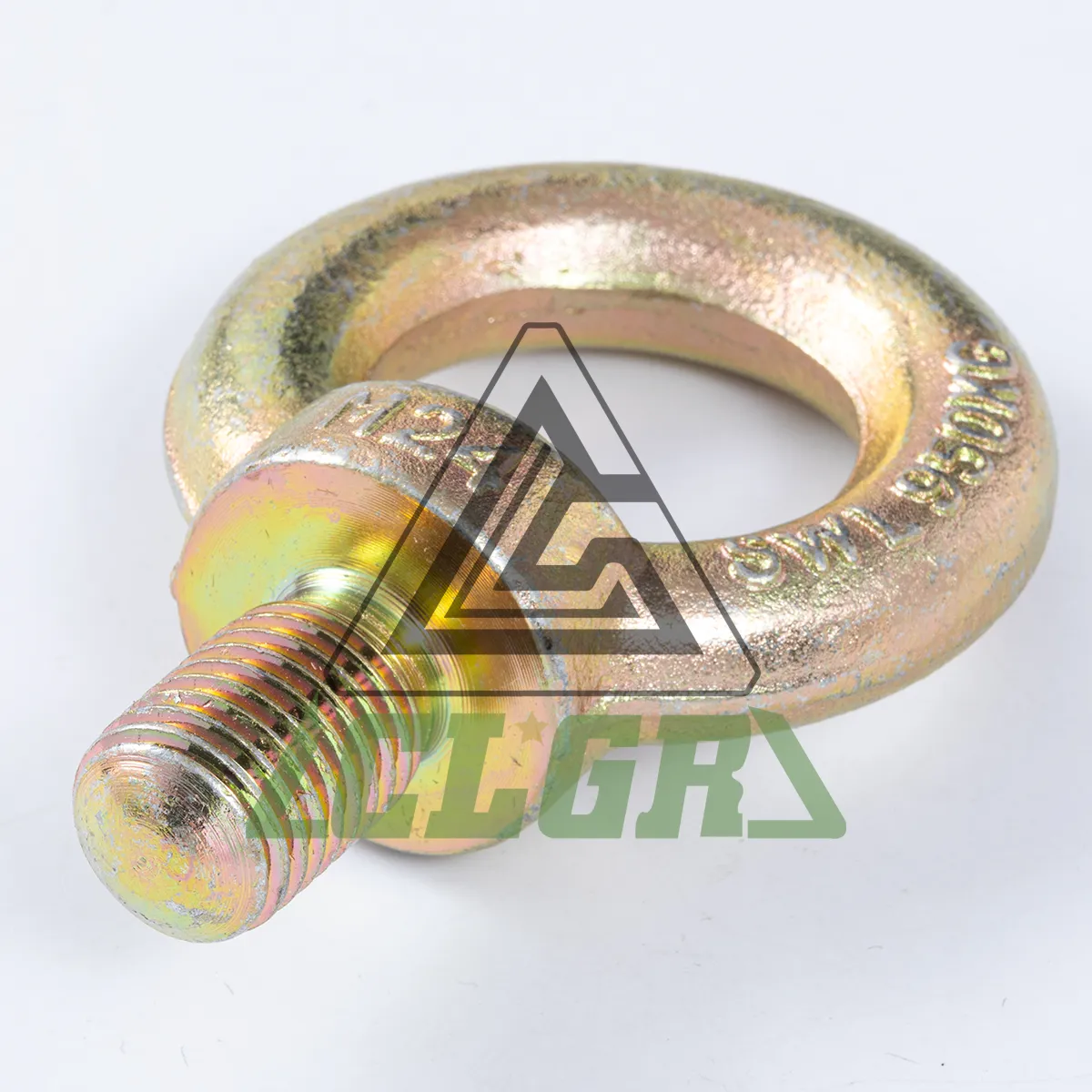

jis 1168 eye bolt forged galvanized carbon steel china manufacturer

 

Overview of JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

Brand	CLGR®
Origin	China
Technical Notes	Eye Bolt conformed To JIS B 1168
Material	Carbon Steel
Processing	Drop Forged
Finish	Yellow Chromate, Zinc plated, Hot dipped galvanized
Size	M8, M10, M12, M16, M20, M24, M30, M36, M42, M48, M64, M80, M90, M100
Usage	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings.

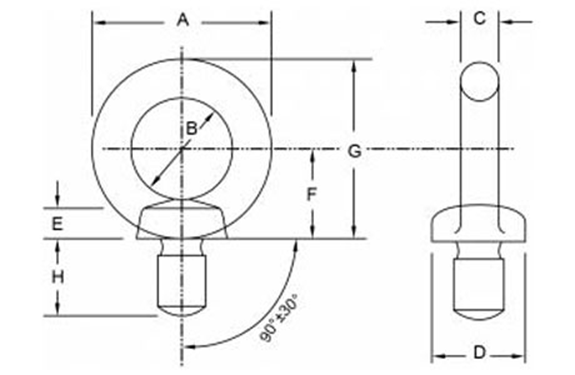

Specifications of JIS 1168 Eye Bolt Forged Galvanized Carbon Steel

Part No.	Size	A	B	C	D	E	F	G	H	SWL(kg/KN)
Part No.	Size	A	B	C	D	E	F	G	H	Vertical		45°
CR-JIS1168-8	M8	32.6	20	6.3	16	5	17	33.3	15	80	0.785	80	0.785
CR-JIS1168-10	M10	41	25	8	20	7	21	41.5	18	150	1.47	150	1.47
CR-JIS1168-12	M12	50	30	10	25	9	26	51	22	220	2.16	220	2.16
CR-JIS1168-16	M16	60	35	12.5	30	11	30	60	27	450	4.41	450	4.41
CR-JIS1168-20	M20	72	40	16	35	13	35	71	30	630	6.18	630	6.18
CR-JIS1168-24	M24	90	50	20	45	18	45	90	38	950	9.32	950	9.32
CR-JIS1168-30	M30	110	60	25	60	22	55	110	45	1500	14.7	1500	14.7
CR-JIS1168-36	M36	133	70	31.5	70	26	65	131.5	55	2300	22.6	2300	22.6
CR-JIS1168-42	M42	151	80	35.5	80	30	75	150.5	65	3400	33.3	3400	33.3
CR-JIS1168-48	M48	170	90	40	90	35	85	170	70	4500	44.1	4500	44.1
CR-JIS1168-61	M64	210	110	50	110	42	105	210	90	9000	88.3	9000	88.3
CR-JIS1168-80	M80	266	140	63	130	50	130	263	105	15000	147	15000	147
CR-JIS1168-90	M90	302	160	71	150	55	150	301	120	18000	177	18000	177
CR-JIS1168-100	M100	340	180	80	170	60	165	335	130	20000	196	20000	196

PLS NOTE

Always inspect eye bolt before use.

Never use eye bolt that shows signs of wear or damage.

Never machine, grind, or cut eye bolt.

Always screw eye bolt down completely for proper seating.

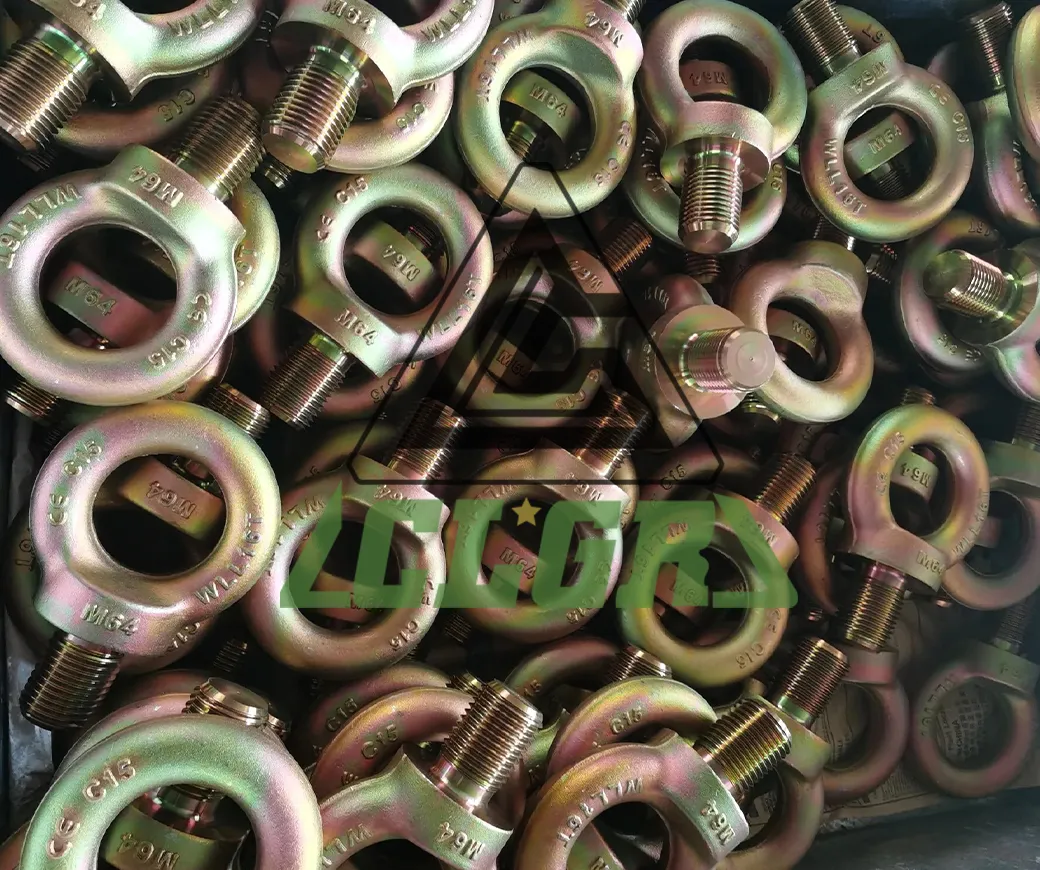

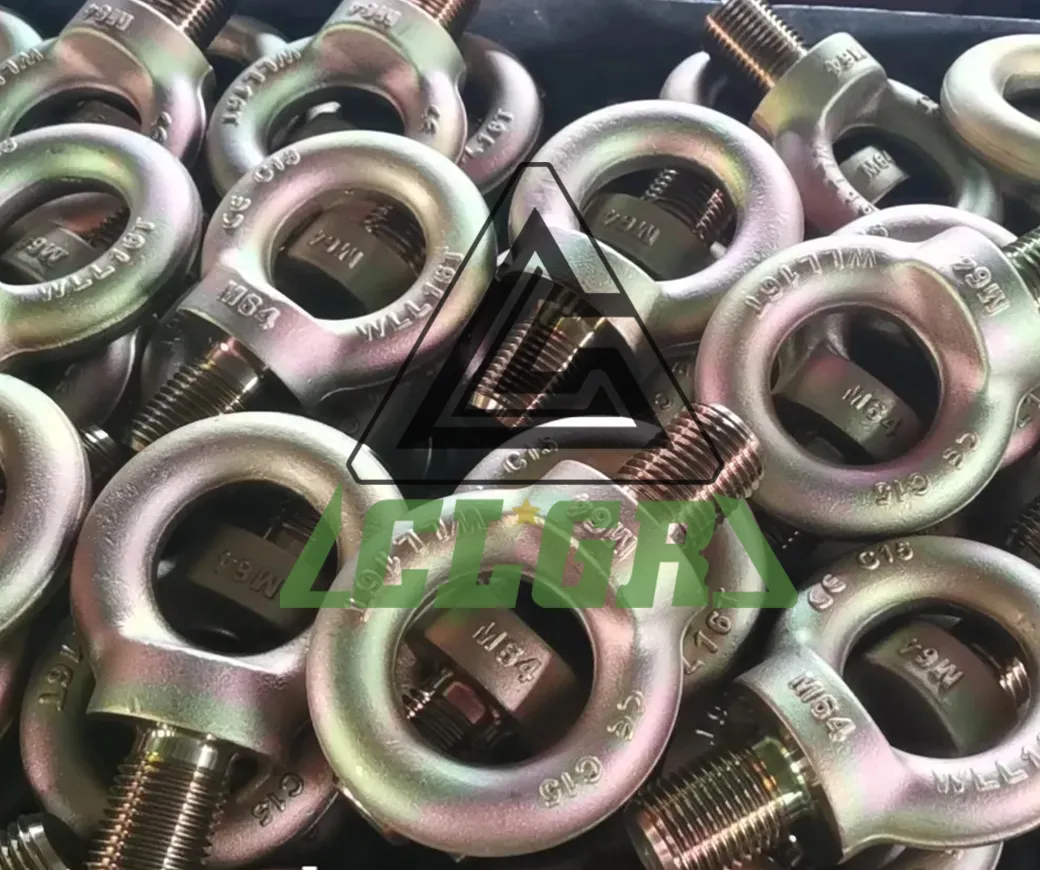

Bulk Photos of JIS 1168 Eye Bolt Forged Galvanized Carbon Steel
