CLGR® Rectangular Base Deck Eye Plates

Name: CLGR® Rectangular Base Deck Eye Plates
Brand: CLGR®

CLGR® Rectangular Base Deck Eye Plates also known as Rectangular Base Eye Plate, Weld On Deck Plate, CE certified weld on eye plate 50mm and Rectangular lifting eye plate for marine use.

Our Rectangular Base Deck Eye Plates are forged from high-tensile C1045 steel with quenched and tempered processing, featuring self-color finish and CE marking with proof load certification.

These weld-on plates provide secure lifting and lashing points for marine and industrial applications, including ship deck cargo lashing, structural steelwork lifting points, and platform safety line anchors.

Available in sizes from 3/8" to 2" with marked proof loads, their rectangular base ensures optimal welding surface contact.

Important: Working load limit requires proper welding procedures by qualified personnel.

To Get A Quote >

rectangular base deck eye plates china wholesale

rectangular base deck eye plates china supplier

rectangular base deck eye plates china manufacturer

 

Overview of Rectangular Base Deck Eye Plates

Brand	CLGR®
Origin	China
Technical Notes	BS Standard
Material	High tensile C1045
Processing	Forged / Quenched and Tempered
Finish	Self-colour finish
Size	3/8″ (10mm) , 1/2″ (12.5mm) , 5/8″ (16mm) , 3/4″ (19mm) , 7/8″ (22mm) , 1″ (25mm) 1.1/8″ (28mm) , 1.1/4″ (32mm) , 1.1/2″ (38mm) , 1.3/4″ (44mm) , 2″ (50mm)
Note	Marked with CE, size, and proof load This product has a proof load applied, however the working load limit is subject to the correct welding procedure being carried out..

Specifications of Rectangular Base Deck Eye Plates

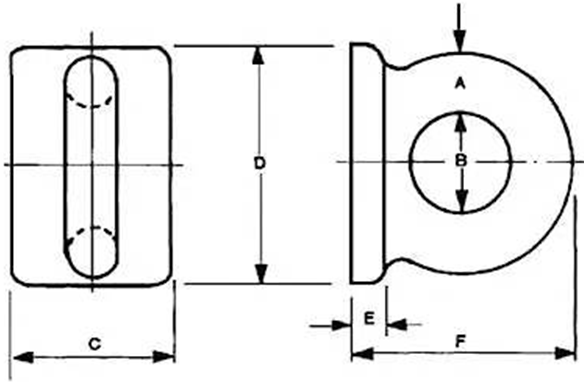

Part No.	A	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Proof Load	Weight
							Proof Load	Weight
							(tonnes)	(kgs)
CR-RBD-10	3/8″ (10mm)	20	25	45	6	38	2	0.14
CR-RBD-12.5	1/2″ (12.5mm)	25	35	60	8	50	3.5	0.31
CR-RBD-16	5/8″ (16mm)	32	45	70	10	64	5.5	0.45
CR-RBD-19	3/4″ (19mm)	338	50	85	12	76	7.5	0.79
CR-RBD-22	7/8″ (22mm)	44	61	102	12	88	9.6	1.36
CR-RBD-25	1″ (25mm)	50	70	115	16	100	13	1.82
CR-RBD-28	1.1/8″ (28mm)	56	76	130	18	114	15.75	2.95
CR-RBD-32	1.1/4″ (32mm)	64	85	145	19	128	20	3.86
CR-RBD-38	1.1/2″ (38mm)	76	100	170	22	152	29	6.58
CR-RBD-44	1.3/4″ (44mm)	89	121	200	27	178	39	18
CR-RBD-50	2″ (50mm)	102	137	229	30	203	50	25
