CLGR® Forged Screw Eye Bolts LG-275 also known as Lag Eye Bolt, G-275 hot dipped galvanized lag eye bolt, Forged Screw Eye Bolts G-275 and Shoulder screw eye bolt for wood lifting.
Our G-275 Forged Screw Eye Bolts are hot-dip galvanized lag bolts designed for secure wood fastening applications, featuring a cone point for easy installation and large threads for maximum holding power in timber.
Manufactured from quenched & tempered forged steel, these shoulder-type eye bolts comply with ASME B30.26 standards for rigging hardware.
Unlike standard lifting eye bolts, these lag screws do not carry a rated working load limit as their capacity depends entirely on wood density and installation conditions.
Ideal for creating lifting points in timber structures, these corrosion-resistant eye bolts provide reliable performance when properly installed in solid wood materials.
| Brand | CLGR® |
| Origin | China |
| Technical Notes | Eye bolt meets or exceeds all requirements of ASME B30.26. |
| Processing | Forged, Quenched & Tempered |
| Finish | Hot Dip Galvanized |
| Tips | Working Load Limits shown are for in-line pull. |

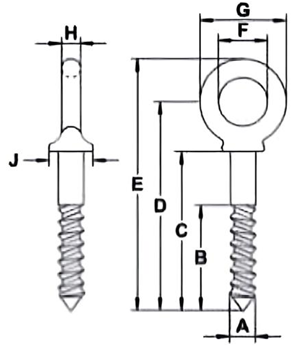

Part No. | Size | Dimensions (in.) | Weight (lbs) | ||||||||
A | B | C | D | E | F | G | H | J | |||
CRLG275EB101 | 1/4 × 2″ | 0.25 | 1.5 | 2 | 2.5 | 2.94 | 0.5 | 0.88 | 0.19 | 0.47 | 0.05 |
CRLG275EB102 | 5/16 × 2-1/4″ | 0.31 | 1.69 | 2.25 | 2.94 | 3.5 | 0.63 | 1.13 | 0.25 | 0.56 | 0.1 |
CRLG275EB103 | 3/8 × 2-1/2″ | 0.38 | 1.88 | 2.5 | 3.28 | 3.97 | 0.75 | 1.38 | 0.31 | 0.66 | 0.19 |
CRLG275EB104 | 1/2 × 3-1/4″ | 0.5 | 2.44 | 3.25 | 4.25 | 5.12 | 1 | 1.75 | 0.38 | 0.91 | 0.38 |
CRLG275EB105 | 5/8 × 4″ | 0.63 | 3 | 4 | 5.31 | 6.44 | 1.25 | 2.25 | 0.5 | 1.12 | 0.86 |
CRLG275EB106 | 3/4 × 4-1/2″ | 0.75 | 3.5 | 4.5 | 6.25 | 7.44 | 1.5 | 2.75 | 0.62 | 1.38 | 1.38 |
