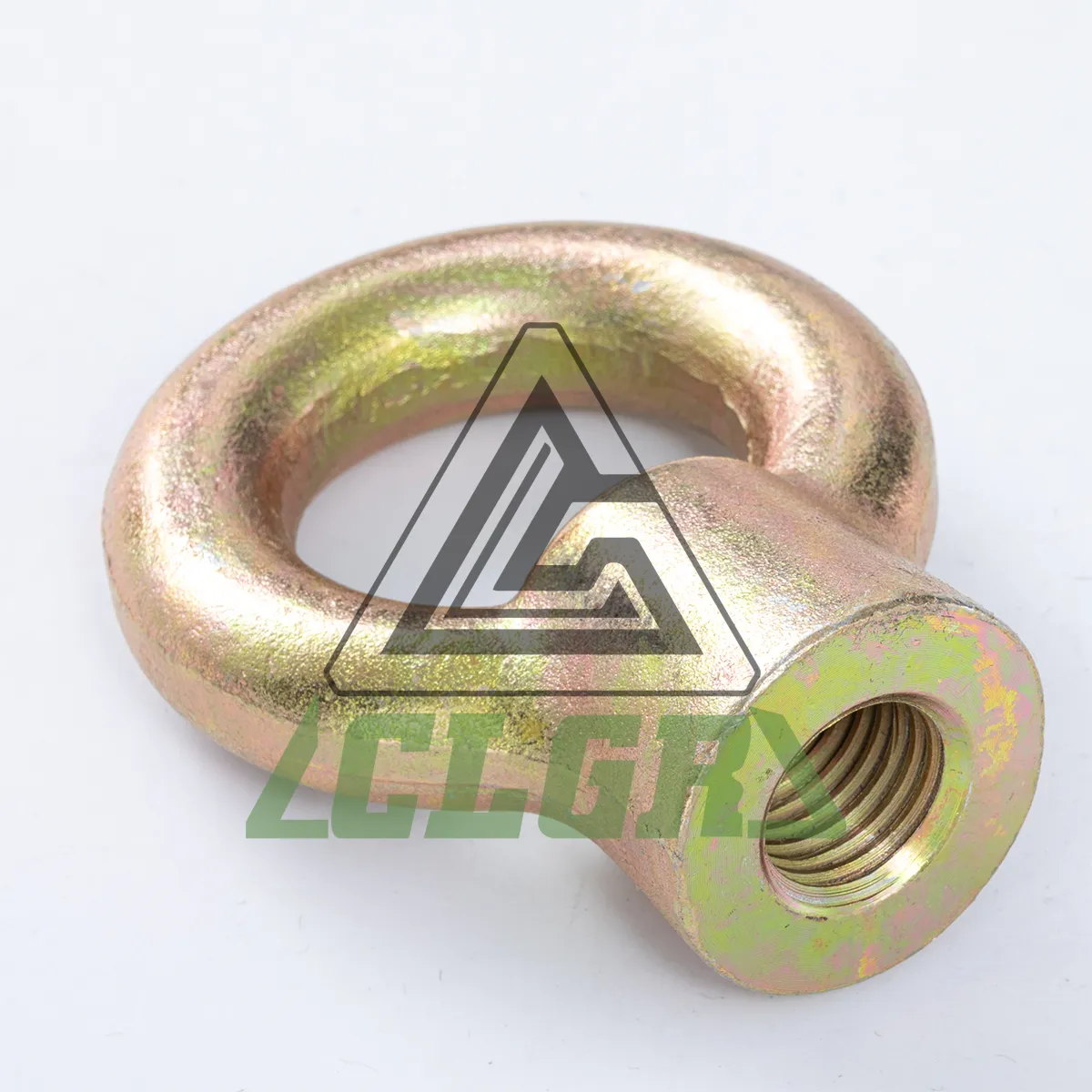

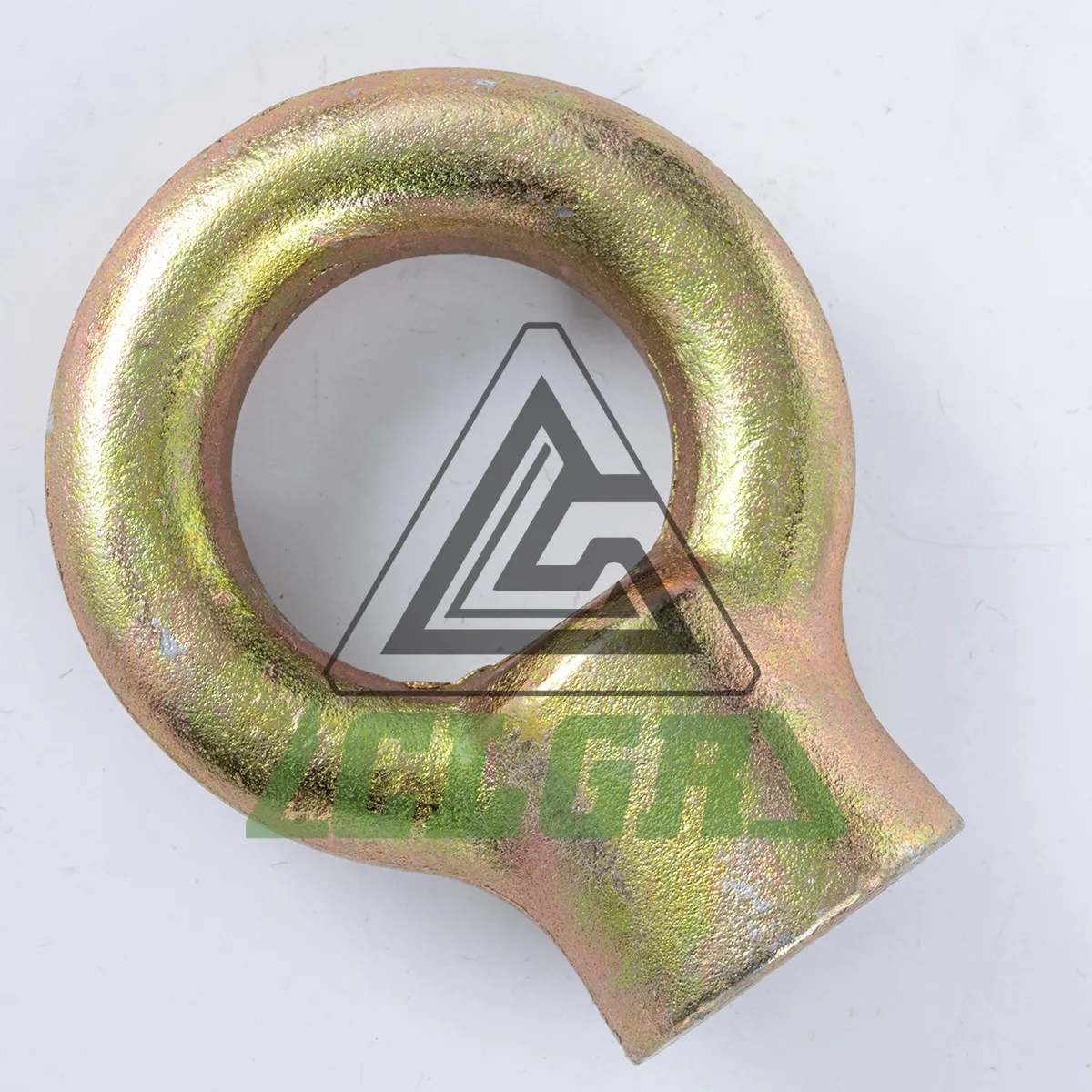

CLGR® JIS B 1169 Forged Eye Nut

Name: CLGR® JIS B 1169 Forged Eye Nut
Brand: CLGR®

CLGR® JIS B 1169 Forged Eye Nut also known as JIS B 1169 Eye Nut, JIS 1169 Lifting Eye Nuts and JIS B 1169 Forged Eye Nut with Hot-Dipped Galvanized Finish.

Our JIS B 1169 certified forged eye nuts are manufactured from high-grade carbon steel through drop forging process, ensuring superior strength and durability for demanding lifting applications.

Available in sizes from M8 to M80 with multiple finish options including yellow chromate, zinc plating, and hot-dip galvanizing to provide reliable corrosion protection in various industrial environments.

These eye nuts are ideal for creating secure lifting points when used with different types of lifting gear, and can be customized according to specific customer requirements for special applications and marking needs.

To Get A Quote >

jis b 1169 forged eye nut china supplier

 

Overview of JIS B 1169 Forged Eye Nut

Brand	CLGR®
Origin	China
Technical Notes	Eye Nut conformed To JIS B 1169
Material	Carbon Steel
Processing	Drop Forged
Finish	Yellow Chromate, Zinc plated, Hot dipped galvanized
Size	M8, M10, M12, M16, M20, M24, M36 ,M42, M48, M64, M80

Specifications of JIS B 1169 Forged Eye Nut

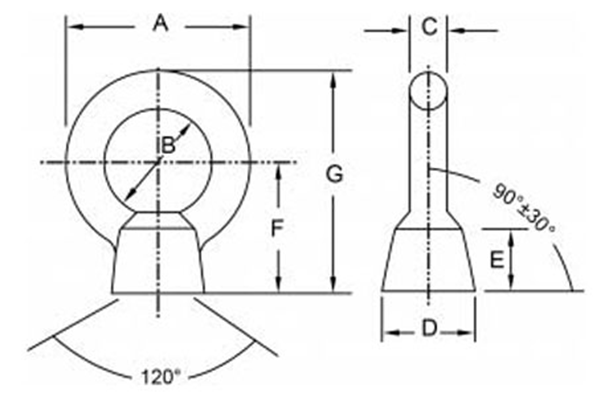

drawing-clgr-of-jis-b-1169-forged-eye-nut-china-supplier

Part No.	Size	A	B	C	D	E	F	G	SWL（KGS/KN)
Part No.	Size	A	B	C	D	E	F	G	Vertical		45°
CR-JIS1169-8	M8	32.6	20	6.3	16	12	23	39.3	80	0.785	80	0.785
CR-JIS1169-10	M10	41	25	8	20	15	28	48.5	150	1.47	150	1.47
CR-JIS1169-12	M12	50	30	10	25	19	36	61	220	2.16	220	2.16
CR-JIS1169-16	M16	60	35	12.5	30	23	42	72	450	4.41	450	4.41
CR-JIS1169-20	M20	72	40	16	35	28	50	86	630	6.18	630	6.18
CR-JIS1169-24	M24	90	50	20	45	38	66	111	950	9.32	950	9.32
CR-JIS1169-36	M36	133	70	31.5	70	55	95	161.5	2300	22.6	2300	22.6
CR-JIS1169-42	M42	151	80	35.5	80	64	109	184.5	3400	33.3	3400	33.3
CR-JIS1169-48	M48	170	90	40	90	73	123	208	4500	44.1	4500	44.1
CR-JIS1169-64	M64	210	110	50	110	90	151	256	9000	88.3	9000	88.3
CR-JIS1169-80	M80	266	140	63	130	108	184	317	15000	147	15000	147
