CLGR® High Tensile Bolt Type Anchor Shackle U.S. Type LG-2130 for Trawling

Name: CLGR® High Tensile Bolt Type Anchor Shackle U.S. Type LG-2130 for Trawling
Brand: CLGR®

CLGR® High Tensile Bolt Type Anchor Shackle U.S. Type, also called Anchor Shackle with Safety Pin Nut.

The body of high tensile Bolt Type Anchor Shackle LG-2130 is made of superior carbon steel. CLGR® shackles are built to withstand higher weight and strength and more durable than standard shackles. Bolt Type Bow Shackle provides an additional layer of security, preventing accidental loosening and ensuring a stable connection point between rigging equipment, such as chains, ropes, or slings. It is commonly used in construction and maritime.

Meets the performance requirements of Federal Specification RR-C-27ID Type IVA, Grade A, Class 3.

Bolt Type Anchor Shackle is available in a range of sizes. Special specifications and marks can be made according to customers' requirements.

To Get A Quote >

clgr® high tensile bolt type anchor shackle u

 

Overview of CLGR® High Tensile Bolt Type Anchor Shackle U.S. Type for Trawling

Brand	CLGR®
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/2”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”
Standard	U.S. Federal Specification (ASME B30.26)
Safety Factor	6:1 / 4:1
Material	Superior Carbon Steel
Surface Finish	Body: Hot Dipped Galvanized, Powder Coated, Zinc Plated Screw Pin: Powder Coated, Zinc Plated
Processing	Drop Forged, Heat Treatment
Important Note	Not suitable for lifting applications

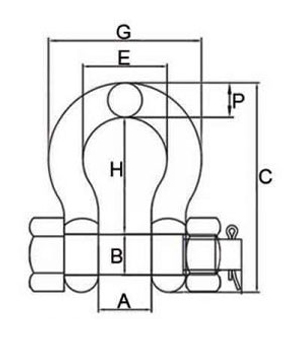

Specification of CLGR® High Tensile Bolt Type Anchor Shackle U.S. Type for Trawling

Part No.	Size	WLL	Weight	Dimensions (in.)						Tolerance+/-
Part No.	(in.)	(t)*	Weight	A	B	C	E	G	K	G	A
CRG2130BSBP1/4	1/4	1/2	0.11	0.47	0.31	0.25	0.97	0.97	1.59	0.06	0.06
CRG2130BSBP5/16	5/16	3/4	0.17	0.53	0.38	0.31	1.15	1.07	1.91	0.06	0.06
CRG2130BSBP3/8	3/8	1	0.28	0.66	0.44	0.38	1.42	1.28	2.31	0.13	0.06
CRG2130BSBP7/16	7/16	1 - 1/2	0.43	0.75	0.5	0.44	1.63	1.48	2.67	0.13	0.06
CRG2130BSBP1/2	1/2	2	0.59	0.81	0.63	0.5	1.81	1.66	3.03	0.13	0.06
CRG2130BSBP5/8	5/8	3 - 1/4	1.25	1.06	0.75	0.63	2.32	2.04	3.76	0.13	0.06
CRG2130BSBP3/4	3/4	4 - 3/4	2.63	1.25	0.88	0.81	2.75	2.4	4.53	0.25	0.06
CRG2130BSBP7/8	7/8	6 - 1/2	3.16	1.44	1	0.97	3.2	2.86	5.33	0.25	0.06
CRG2130BSBP1/1	1	8 - 1/2	4.75	1.69	1.13	1	3.69	3.24	5.94	0.25	0.06
CRG2130BSBP1-1/8	1 - 1/8	9 - 1/2	6.75	1.81	1.25	1.25	4.07	3.61	6.78	0.25	0.06
CRG2130BSBP1-1/4	1 - 1/4	12	9.06	2.03	1.38	1.38	4.53	3.97	7.5	0.25	0.13
CRG2130BSBP1-3/8	1 - 3/8	13 - 1/2	11.63	2.25	1.5	1.5	5.01	4.43	8.28	0.25	0.13
CRG2130BSBP1-1/2	1 - 1/2	17	15.95	2.38	1.63	1.62	5.38	4.84	9.05	0.25	0.13
CRG2130BSBP1-3/4	1 - 3/4	25	26.75	2.88	2	2.12	6.38	5.78	10.97	0.25	0.13
CRG2130BSBP2/1	2	35	42.31	3.25	2.25	2.36	7.25	6.77	12.74	0.25	0.13
CRG2130BSBP2-1/2	2 - 1/2	55	71.75	4.12	2.75	2.63	9.38	8.07	14.85	0.25	0.25
