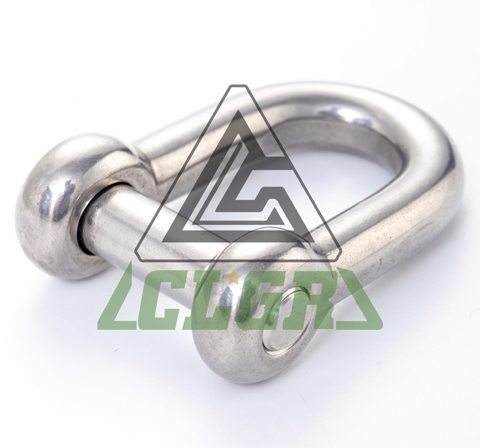

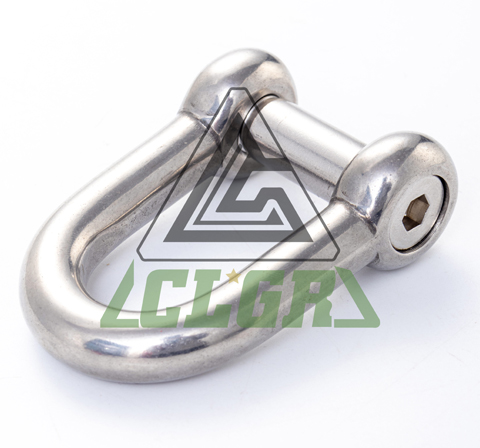

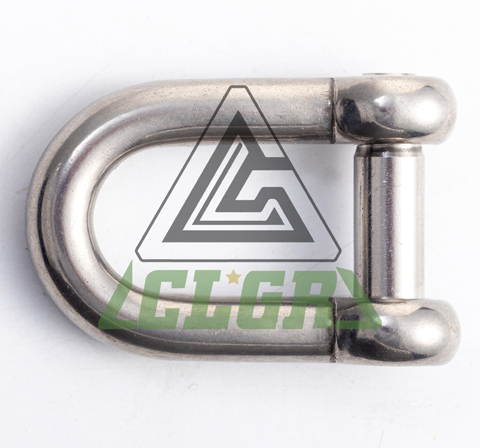

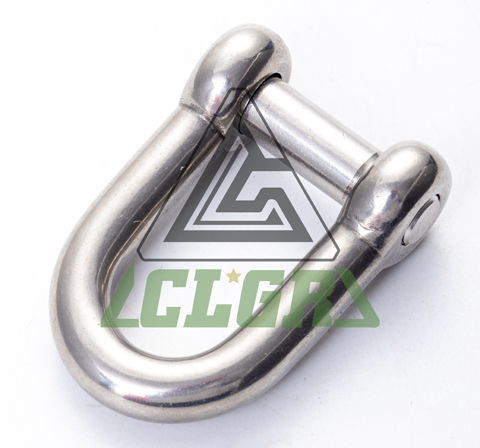

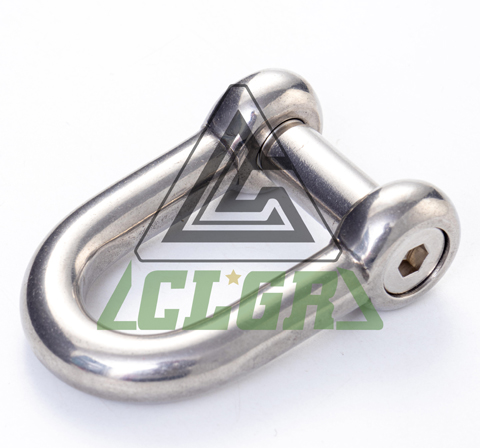

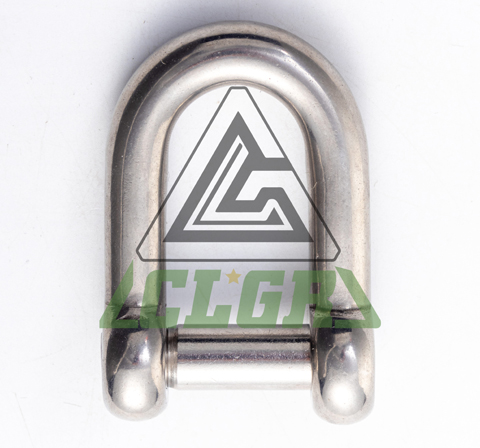

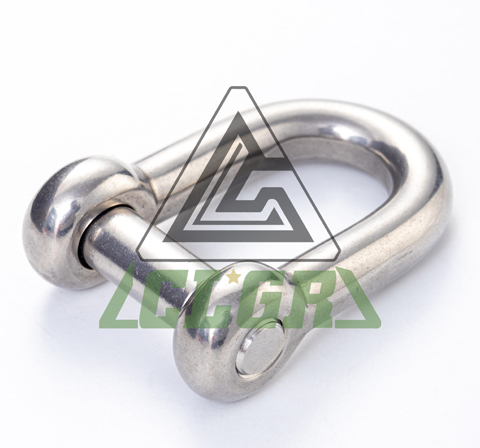

CLGR® Stainless Steel D Shackle with Hexagon Socket Pin is also known as D Shackles with a No-Snag Pin.
D Shackles with a No-Snag Pin are designed to sit flush with the shackle body. Forged from 316-grade stainless steel solid bar, the shackles for sale offer maximum corrosion resistance and durability.

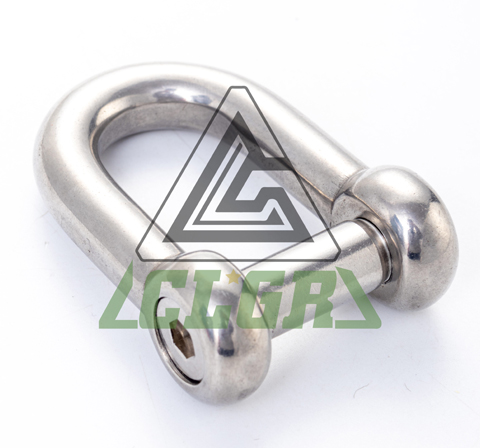

The pin requires a hex head key to tighten or loosen and is ideal for resistant environments. Also, we have done stress testing for samples of each batch. It meets European specifications for strength and durability.
CLGR® Stainless Steel D Shackle with Hexagon Socket Pin is available in a range of sizes. Special specifications and marks can be made according to customers' requirements.
| Brand | CLGR® |
| Size | 5mm, 6mm, 8mm, 10mm, 12mm, 14mm |
| Standard | European Type |
| Material | Stainless steel 304 or 316 |
| Surface Finish | Forged, Stamping |
| Processing | Highly Polishing, Electrophoretic Coating |
| Important Note | Not suitable for lifting applications |

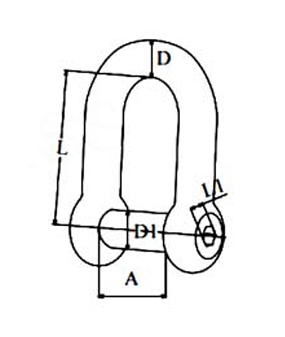

| Part No. | D (mm) | A (mm) | L (mm) | D1 (mm) | L1 (mm) | Min.BL (KN) |
| CRSSDSHSP05 | 5 | 10 | 20 | 5 | 25 | 91 |
| CRSSDSHSP06 | 6 | 12 | 24 | 6 | 30 | 132 |
| CRSSDSHSP08 | 8 | 16 | 32 | 8 | 40 | 237 |
| CRSSDSHSP10 | 10 | 20 | 40 | 10 | 50 | 373 |
| CRSSDSHSP12 | 12 | 24 | 48 | 12 | 60 | 549 |
| CRSSDSHSP14 | 14 | 28 | 56 | 14 | 60 | 748 |
