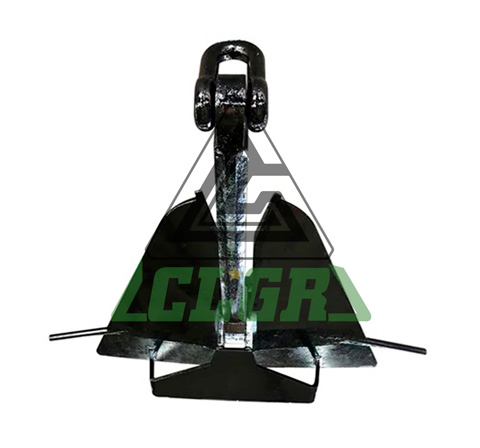

Name: CLGR® HHP MK3 Stevin Anchor for Marine and Offshore - The China Manufacturer Supplier, Factory
Brand: CLGR®

The CLGR® HHP MK3 Stevin Anchor, also known as HHP Stephen Anchor MK3.

The MK3 High Holding Power (HHP) Stevin Anchor is a crucial piece of mooring equipment in offshore applications, particularly for maintaining the position of floating structures.

It works by being lowered to the seabed and then connected to the floating structure via mooring lines, which can be chains, wires, or synthetic ropes. These mooring lines transmit the forces from the structure to the anchor, effectively keeping it in place.

To Get A Quote >

CLGR® HHP MK3 Stevin Anchor for Marine and Offshore - The China Manufacturer Supplier, Factory

Overview of CLGR® HHP MK3 Stevin Anchor for Marine and Offshore

Brand	CLGR®
Type	High Holding Power HHP MK3 Stevin Anchor
Material	Steel
Surface Finish	Black Bituminous Painting, Hot Dip Galvanized
Origin	China

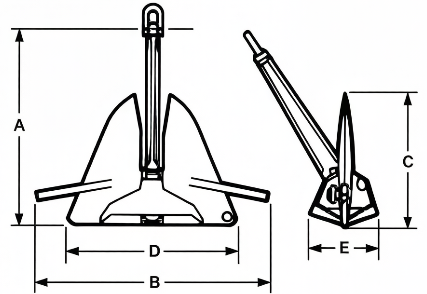

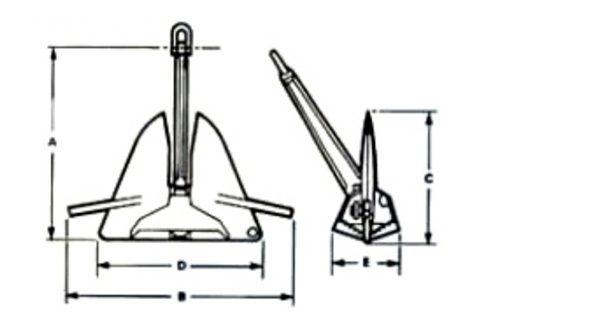

Specifications of CLGR® HHP MK3 Stevin Anchor for Marine and Offshore

Part No.	Nominal Weight/kg	Dimensions (mm)
Part No.	Nominal Weight/kg	A	B	C	D	E	K	S
CRMK301	1000	2429	2654	1559	2023	737	1010	60
CRMK302	1500	2774	3038	1785	2316	843	1156	65
CRMK303	3000	3493	3828	2249	2918	1063	1456	80
CRMK304	5000	4120	4538	2667	3460	1260	1727	80
CRMK305	7000	4602	5077	2983	3871	1409	1932	90
CRMK306	9000	5012	5521	3244	4209	1533	2100	100
CRMK307	12000	5516	6076	3570	4632	1687	2312	110
CRMK308	15000	5942	6545	3846	4990	1817	2490	120
CRMK309	20000	6372	6986	4100	5324	2048	2674	160
CRMK310	30000	7289	7997	4694	6094	2345	3061	180
