CLGR® HHP D-Hone Anchor for Marine - The China Manufacturer Supplier, Factory

Name: CLGR® HHP D-Hone Anchor for Marine - The China Manufacturer Supplier, Factory
Brand: CLGR®

The HHP D-HONE Anchor, also known as D'HONE anchor, is a specialized high-holding-power anchor and stockless high holding power anchor, allowing it to weigh less than conventional anchors.

Its robust structure makes it ideal for fitting into anchor pockets. The anchor is fully balanced, ensuring it always returns to an upright position, which prevents it from getting stuck in the pocket.

It can be finished with hot-dip galvanization, paint, or a clean bitumen coating.

To Get A Quote >

CLGR® HHP D-Hone Anchor for Marine - The China Manufacturer Supplier, Factory

Overview of CLGR® HHP D-Hone Anchor for Marine

Brand	CLGR®
Type	High Holding Power D-Hone Anchor
Material	Steel
Surface Finish	Black Bituminous Painting, Hot Dip Galvanized
Origin	China

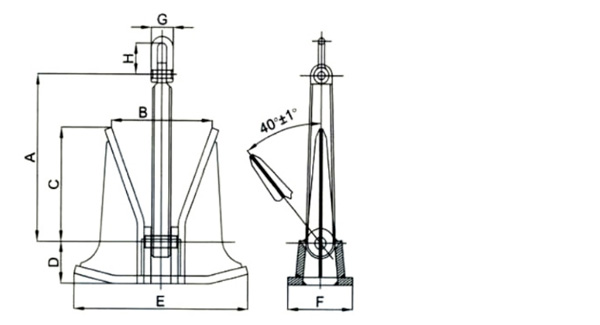

Specifications of CLGR® HHP D-Hone Anchor for Marine

Part No.	Nominal Weight/kg	A/mm	B/mm	C/mm	D/mm	E/mm	F/mm	G/mm	H/mm
CRDH01	200	789	495	566	182	847	313	110	145
CRDH02	500	1070	670	765	250	1150	425	163	215
CRDH03	850	1280	800	915	295	1370	507	200	255
CRDH04	1400	1510	945	1080	350	1620	600	215	280
CRDH05	2000	1700	1065	1220	390	1825	675	236	310
CRDH06	3000	1950	1220	1400	445	2090	770	279	380
CRDH07	4500	2224	1395	1590	510	2385	880	310	410
CRDH08	5800	2430	1525	1745	560	2610	965	370	480
CRDH09	7400	2635	1650	1890	605	2825	1045	377	500
CRDH10	9200	2830	1775	2030	650	3030	1120	418	580
CRDH11	10000	2920	1830	2090	670	3126	1157	437	600
CRDH12	13500	3200	2010	2290	740	3435	1270	468	640
CRDH13	15500	3360	2100	2410	770	3600	1330	498	680
