CLGR® N Type HHP Ship Pool Anchor - The China Manufacturer Supplier, Factory

Name: CLGR® N Type HHP Ship Pool Anchor - The China Manufacturer Supplier, Factory
Brand: CLGR®

The N Type HHP Ship Pool Anchor, also known as SSN HHP Ship Anchor, Bohr HHP Anchor and Stockless Anchor, is a high-performance mooring anchor designed to deliver exceptional holding power in diverse seabed conditions. This robust anchor is manufactured using high-strength steel and precision welding techniques, ensuring durability and reliability for professional marine applications, including use as a bower anchor for large vessels or a positioning anchor for working ships such as dredgers.

A key feature of the SSN HHP Anchor is its smooth and sharp flukes, which are meticulously engineered to minimize resistance during anchoring while maximizing penetration efficiency. This design allows the anchor to adapt seamlessly to various submarine geologies, ensuring a secure and stable grip on different seabed substrates. The sharpness of the flukes enhances digging capability, further improving holding capacity, while the smooth surface facilitates quick and effortless penetration even in challenging conditions.

To Get A Quote >

Overview of CLGR® N Type HHP Ship Pool Anchor

Brand	CLGR®
Type	SSN HHP Ship Anchor
Material	Casting Steel
Nominal Weight	60kg to 28875kg
Finishing	Black bitumen paint, anti-rusting paint or customized
Packing	Carton, Plywood Case, Plywood Pallet or Nude Packing;
Origin	China

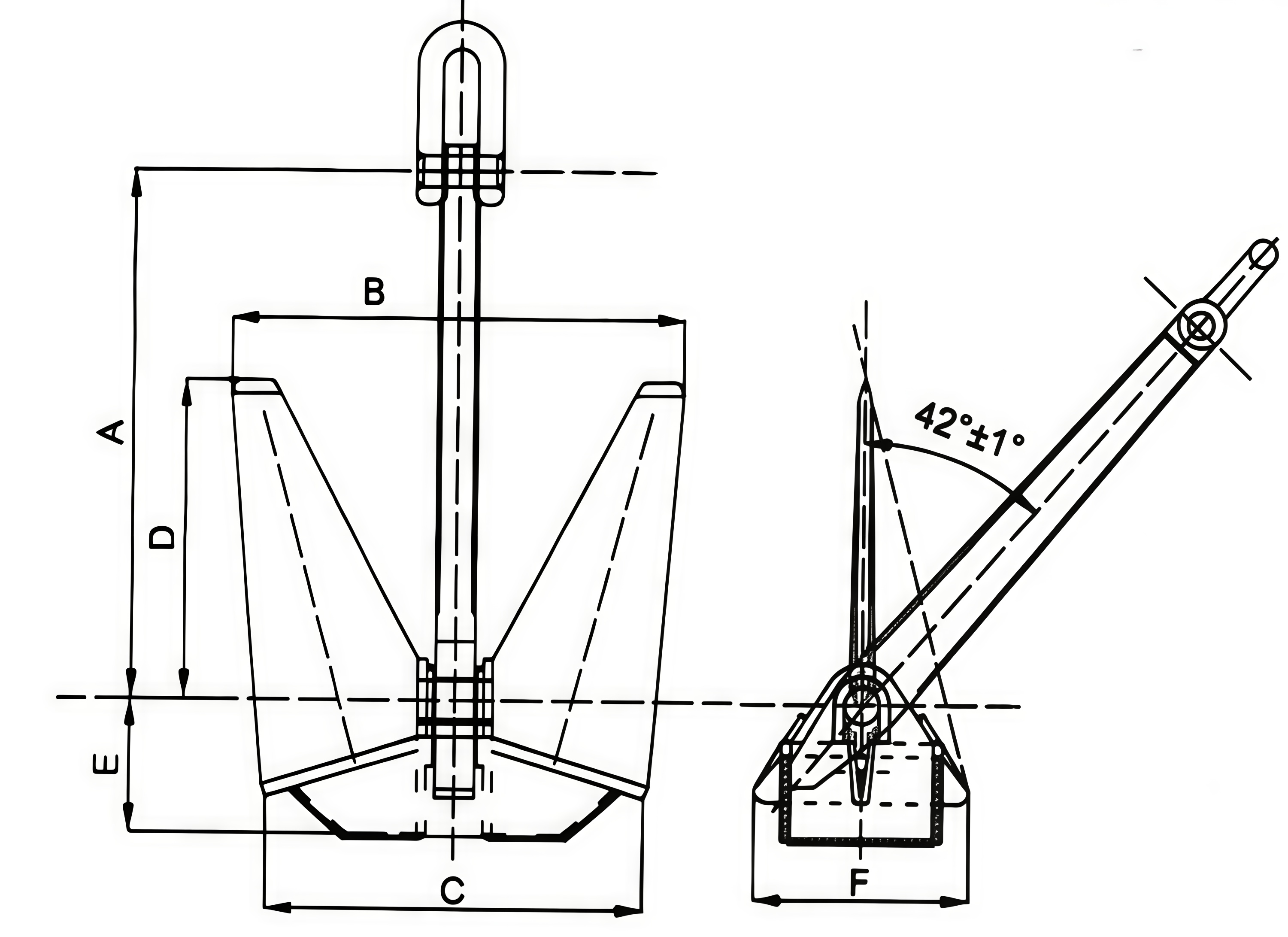

Specifications of CLGR® N Type HHP Ship Pool Anchor

Part No.	Nominal Weight(KG)	Dimensions (mm)
Part No.	Nominal Weight(KG)	A	B	C	D	E	F
CRHHPSSN01	60	590	555	470	364	157	270
CRHHPSSN02	80	664	605	515	410	176	295
CRHHPSSN03	100	712	655	555	440	190	320
CRHHPSSN04	160	835	765	650	516	223	370
CRHHPSSN05	200	885	825	700	546	236	400
CRHHPSSN06	280	1008	925	780	622	269	450
CRHHPSSN07	360	1096	1005	855	677	292	490
CRHHPSSN08	480	1186	1105	940	728	314	535
CRHHPSSN09	600	1300	1190	1010	802	347	580
CRHHPSSN10	765	1410	1290	1096	870	375	610
CRHHPSSN11	1000	1526	1395	1185	942	404	660
CRHHPSSN12	1080	1580	1446	1230	975	421	685
CRHHPSSN13	1195	1636	1485	1270	1010	436	708
CRHHPSSN14	1305	1680	1541	1308	1037	448	730
CRHHPSSN15	1440	1738	1592	1352	1073	464	754
CRHHPSSN16	1575	1769	1640	1386	1092	472	777
CRHHPSSN17	1710	1840	1686	1455	1137	491	798
CRHHPSSN18	1845	1890	1729	1469	1168	504	819
CRHHPSSN19	1980	1935	1770	1504	1195	516	836
CRHHPSSN20	2140	1985	1816	1543	1226	530	860
CRHHPSSN21	2295	2030	1860	1580	1254	540	880
CRHHPSSN22	2655	2140	1954	1684	1322	566	926
CRHHPSSN23	2835	2188	1996	1700	1351	580	945
CRHHPSSN24	3000	2238	2042	1736	1382	592	968
CRHHPSSN25	3240	2287	2086	1773	1412	605	988
CRHHPSSN26	3940	2442	2226	1892	1508	646	1055
CRHHPSSN27	4500	2553	2328	1976	1576	675	1103
CRHHPSSN28	5175	2675	2439	2072	1651	708	1155
CRHHPSSN29	5515	2730	2491	2116	1686	722	1180
CRHHPSSN30	5850	2786	2541	2159	1720	737	1204
CRHHPSSN31	6225	2838	2594	2204	1750	756	1229
CRHHPSSN32	6525	2880	2635	2239	1780	768	1248
CRHHPSSN33	6975	2948	2695	2290	1820	786	1276
CRHHPSSN34	7425	3010	2760	2338	1858	802	1303
CRHHPSSN35	7875	3069	2805	2384	1895	818	1329
CRHHPSSN36	8775	3180	2908	2471	1964	848	1376
CRHHPSSN37	9225	3235	2968	2512	1997	862	1401
CRHHPSSN38	9675	3286	3004	2553	2029	876	1423
CRHHPSSN39	10125	3337	3060	2592	2060	890	1445
CRHHPSSN40	10575	3386	3095	2630	2090	902	1468
CRHHPSSN41	12075	3538	3236	2748	2184	943	1533
CRHHPSSN42	12675	3596	3288	2794	2220	958	1556
CRHHPSSN43	13350	3658	3346	2842	2258	975	1585
CRHHPSSN44	14100	3726	3406	2894	2300	993	1614
CRHHPSSN45	15000	3804	3476	2954	2348	1014	1646
CRHHPSSN46	17250	3985	3634	3095	2460	1062	1726
CRHHPSSN47	20825	4240	3837	3285	2618	1130	1832
CRHHPSSN48	24750	4495	4109	3491	2775	1198	1947
CRHHPSSN49	28875	4717	4324	3675	2912	1258	2049
