CLGR® D type End Joining Shackle Grade U2 & U3

Name: CLGR® D type End Joining Shackle Grade U2 & U3
Brand: CLGR®

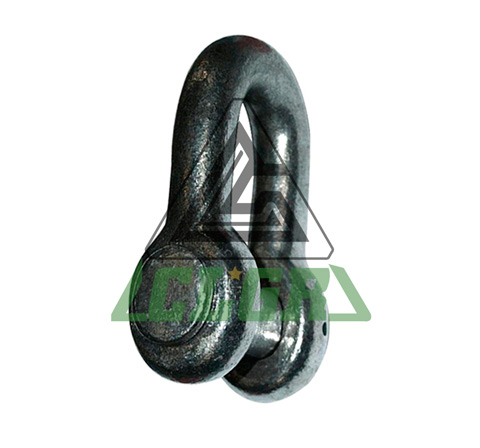

The D type End Joining Shackle, commonly called the 'D' Type Anchor Shackles (Lugged), Lugged Joining Shackle, and D Joining Shackle.

This D type End Joining Shackle, featuring an oval pin, serves as a critical component to connect the anchor's crown shackle to the chain's swivel forerunner. Constructed from alloy steel with black paint or hot-dip galvanization (H.D.G.) finishing, it spans nominal diameters of 11mm to 162mm in Grades 2 and 3, with custom specifications available. As an essential assembly unit in anchor chains, it links the swivel ring set to the anchor shackle.

The Type D End Shackle is designed to connect anchor cables to both the anchor and chain fastening devices. Its oval cross-section pin—fixed in an unloading position by a positioning pin—enhances strength, making it suitable for demanding marine applications.

To Get A Quote >

CLGR® D type End Joining Shackle Grade U2 & U3 Company

Overview of CLGR® D type End Joining Shackle Grade U2 & U3

Brand	CLGR®
Type	Type D End Shackle
Grade	Grades 2 & 3
Material	Alloy steel or stainless steel
Surface Finish	Black painting or hot-dip galvanized
Nominal Diameter	12.5mm to 162mm
Certificate	DNV, GL, ABS, LRS, RINA, BV, NK, KR, IRS, RS, etc.

Specification of CLGR® D type End Joining Shackle Grade U2 & U3

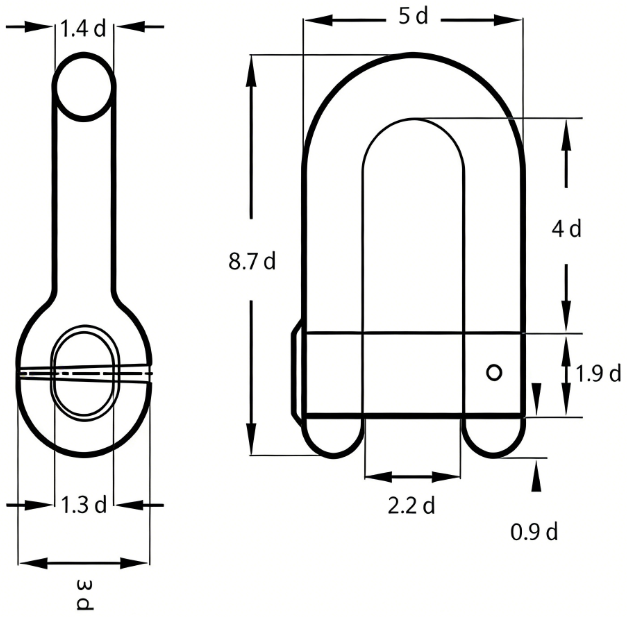

drawing-clgr-of-clg-d-type-end-joining-shackle-grade-u2-u3

M2/M3

Part No.	Nominal DIA. mm d	Weight kg	Part No.	Nominal DIA. mm d	Weight kg	Part No.	Nominal DIA. mm d	Weight kg
CRAJS011	11	0.53	CRAJS050	50	31.60	CRAJS100	100	252.00
CRAJS012.5	12.5	0.60	CRAJS052	52	34.00	CRAJS102	102	267.00
CRAJS014	14	0.67	CRAJS054	54	38.50	CRAJS105	105	294.00
CRAJS016	16	0.95	CRAJS056	56	46.00	CRAJS107	107	305.00
CRAJS017.5	17.5	1.34	CRAJS058	58	46.80	CRAJS111	111	325.00
CRAJS019	19	1.84	CRAJS060	60	51.00	CRAJS114	114	345.00
CRAJS020.5	20.5	2.20	CRAJS062	62	59.20	CRAJS117	117	365.00
CRAJS022	22	2.66	CRAJS064	64	62.70	CRAJS120	120	400.00
CRAJS024	24	3.40	CRAJS066	66	75.00	CRAJS122	122	425.00
CRAJS026	26	4.50	CRAJS068	68	76.70	CRAJS124	124	465.00
CRAJS028	28	5.19	CRAJS070	70	90.00	CRAJS127	127	499.00
CRAJS030	30	6.32	CRAJS073	73	95.00	CRAJS130	130	536.00
CRAJS032	32	8.24	CRAJS076	76	107.00	CRAJS132	132	561.00
CRAJS034	34	9.56	CRAJS078	78	116.00	CRAJS137	137	627.00
CRAJS036	36	11.31	CRAJS081	81	130.00	CRAJS142	142	698.00
CRAJS038	38	13.45	CRAJS084	84	136.00	CRAJS147	147	774.00
CRAJS040	40	15.50	CRAJS087	87	160.00	CRAJS152	152	856.00
CRAJS042	42	18.10	CRAJS090	90	176.00	CRAJS157	157	943.00
CRAJS044	44	20.25	CRAJS092	92	196.00	CRAJS162	162	1036.00
CRAJS044	46	23.33	CRAJS095	95	215.00
CRAJS048	48	27.50	CRAJS097	97	222.00

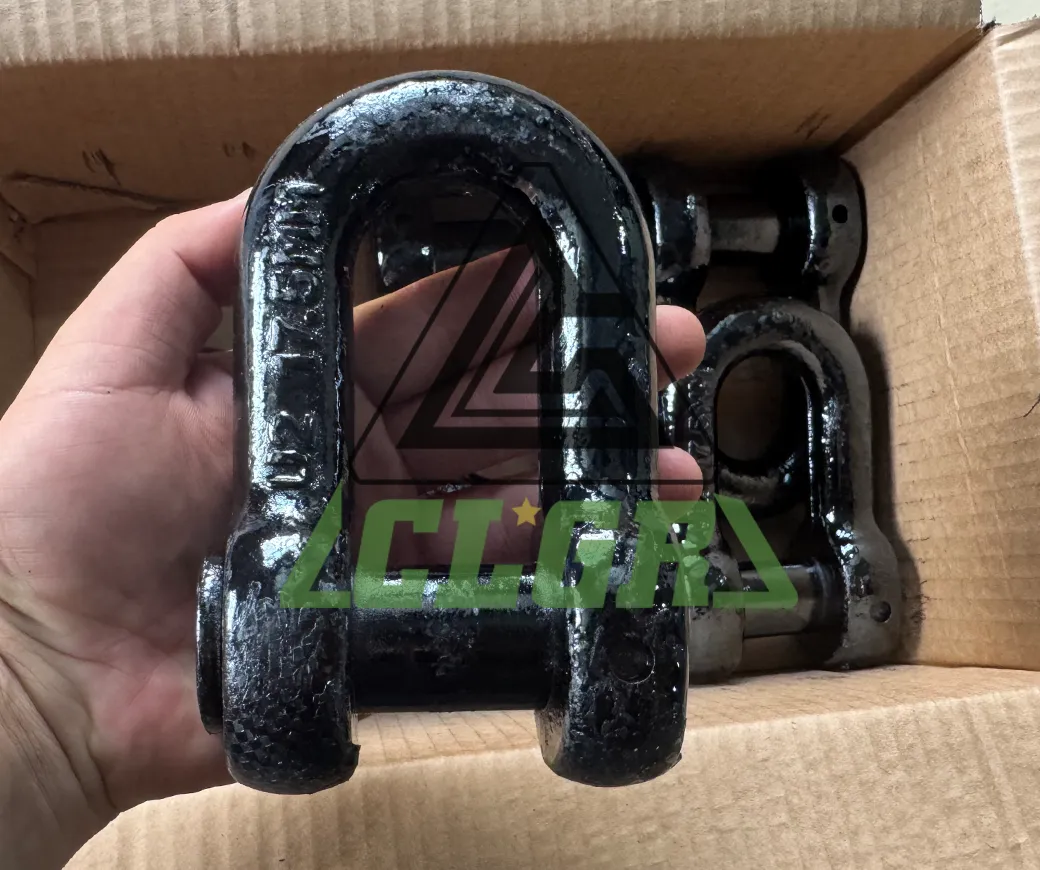

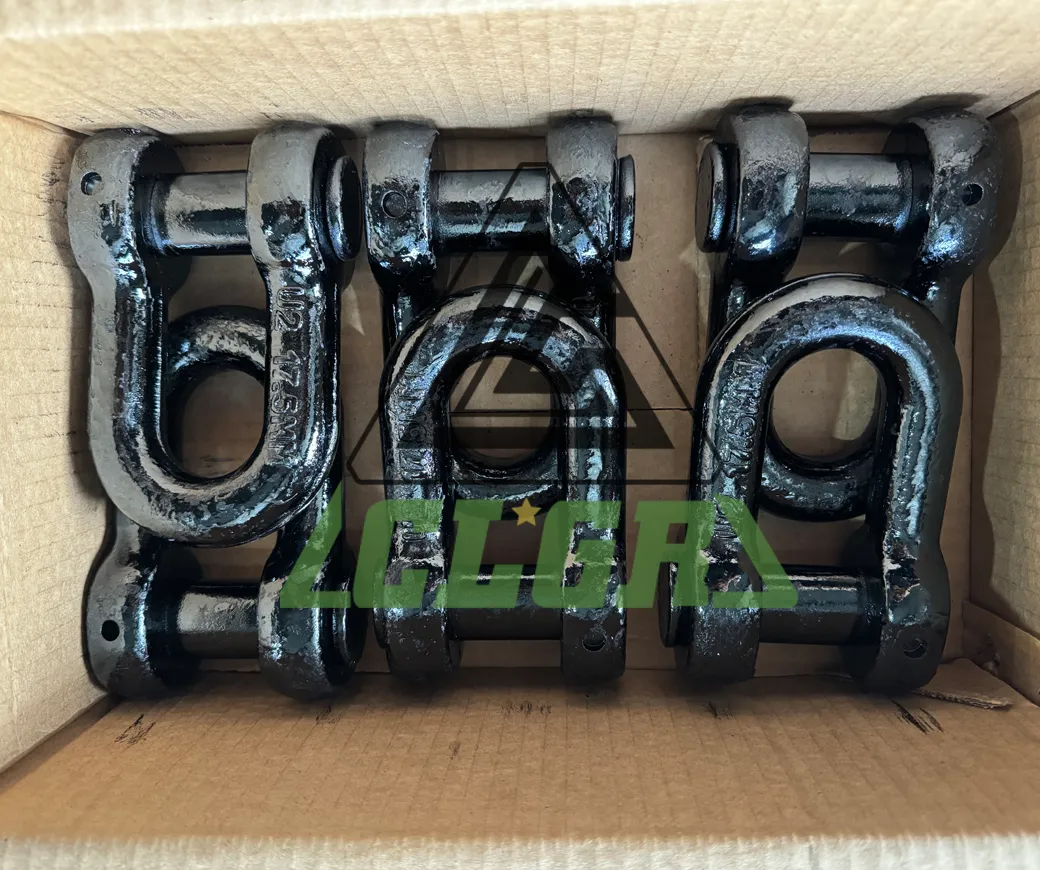

Bulk Photos of D type End Joining Shackle Grade U2 & U3
