CLGR® Pool TW Type HHP Ship Anchor – The China Manufacturer Supplier, Factory

Name: CLGR® Pool TW Type HHP Ship Anchor – The China Manufacturer Supplier, Factory
Brand: CLGR®

CLGR® HHP Pool TW Anchor, also known as TW Pull Anchors, Fluke Anchor, Cargo Ship Anchor, Super/Fully Balanced HHP Pool Anchor, and SHHP Pull TW.

The TW Pull anchor features two large, flat triangular flukes connected to a cast steel shank, making it a reliable option for large commercial or military ships, barges, and other floating structures.

To Get A Quote >

CLGR® Pool TW Type HHP Ship Anchor – The China Manufacturer Supplier, Factory

Overview of CLGR® Pool TW Type HHP Ship Anchor

Brand	CLGR®
Type	High Holding Power TW Pool Anchor
Material	Carbon Steel
Nominal Weight	105kg to 20,000kg
Surface Finish	Black Bituminous Paint or Hot Dip Galvanized
Origin	China

Specifications of CLGR® Pool TW Type HHP Ship Anchor

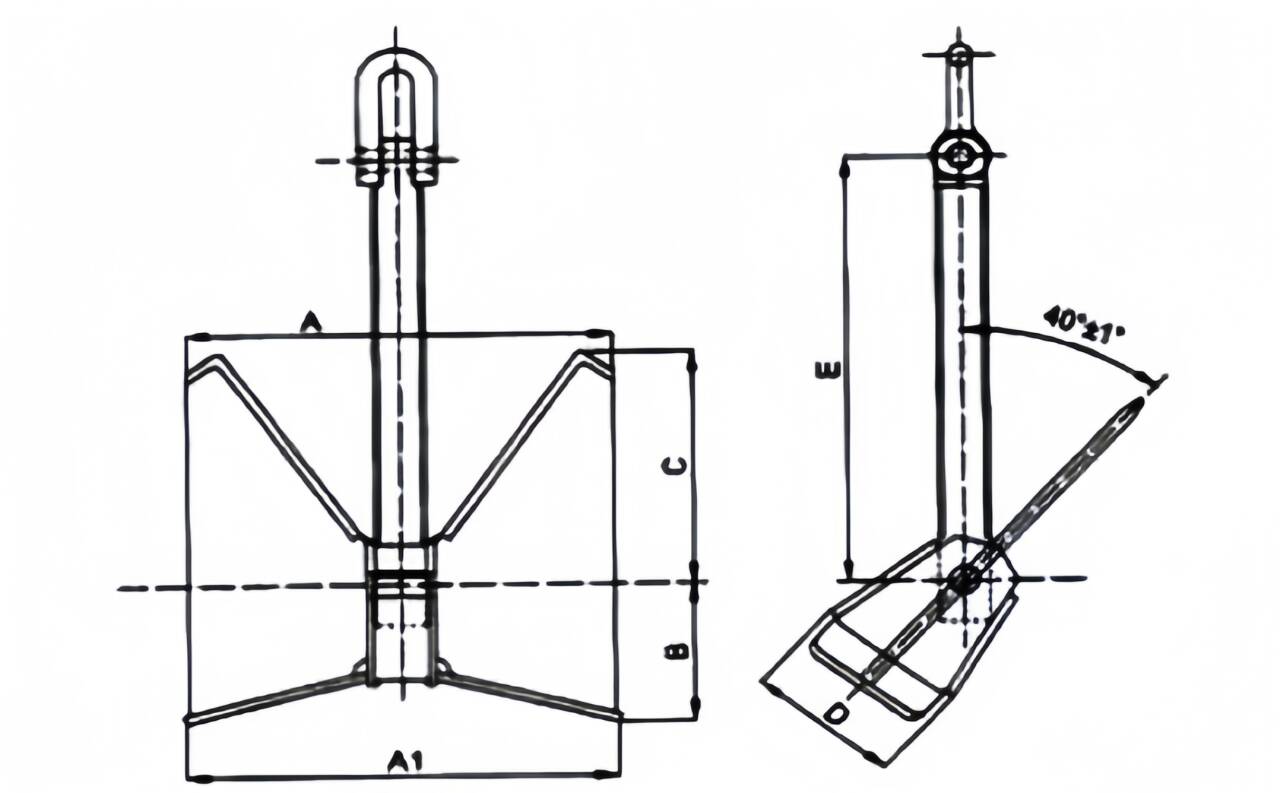

Part No.	Norminal Weight (kg)	Dimensions (mm)						Shackle Model
Part No.	Norminal Weight (kg)	A	A1	B	C	D	E	Shackle Model
CRTWHHP01	105	640	650	250	422	240	705	a6
CRTWHHP02	225	825	837	324	545	310	982	a8
CRTWHHP03	360	965	980	378	638	362	1175	a9
CRTWHHP04	495	1074	1090	420	709	402	1257	a10
CRTWHHP05	855	1306	1327	494	866	496	1575	a13
CRTWHHP06	1305	1490	1512	580	981	558	1814	a14
CRTWHHP07	2295	1802	1829	686	1205	678	2190	a16
CRTWHHP08	3240	2036	2066	770	1351	768	2456	a18
CRTWHHP09	4210	2218	2251	842	1478	838	2680	a20
CRTWHHP10	5175	2334	2367	889	1558	876	2829	a22
CRTWHHP11	6225	2509	2543	980	1640	940	3033	a23
CRTWHHP12	8420	2794	2822	1087	1838	1049	3381	a24
CRTWHHP13	9340	2885	2914	1122	1898	1083	3491	a25
CRTWHHP14	11365	3063	3094	1192	2015	1150	3706	a27
CRTWHHP15	12075	3124	3155	1215	2055	1173	3780	a28
CRTWHHP16	14850	3350	3384	1303	2204	1258	4054	a30
CRTWHHP17	16840	3520	3555	1369	2315	1322	4259	a31
CRTWHHP18	18680	3634	3670	1414	2390	1365	4397	a32
CRTWHHP19	20000	3713	3750	1444	2442	1394	4493	a33
