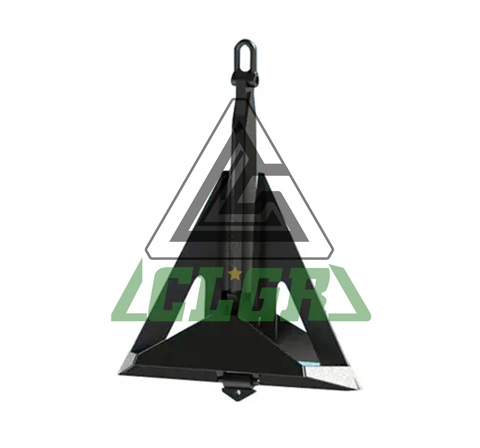

CLGR® Delta Flipper Anchor HHP – The China Manufacturer Supplier, Factory

Name: CLGR® Delta Flipper Anchor HHP – The China Manufacturer Supplier, Factory
Brand: CLGR®

CLGR® Delta Flipper Anchor HHP, also known as HHP Delta Anchor.

Our marine HHP Flipper Delta Anchor, a plow-style anchor, offers robust reliability for offshore and dredging projects, praised for high holding power and efficient performance in various soil conditions.

The surface is made of black asphalt paint, anti-rust paint or customized treatment.

Ranging from 300kg to 100000kg, it suits diverse vessel sizes, and its adjustable fluke/shank angle (35°–50°) optimizes performance for different conditions, ensuring maximum holding power in any anchoring scenario.

To Get A Quote >

CLGR® Delta Flipper Anchor HHP – The China Manufacturer Supplier, Factory

Overview of CLGR® Delta Flipper Anchor HHP

Brand	CLGR®
Type	High Holding Power Delta Flipper Anchor
Material	Steel
Surface Finish	Black Bitumen Painting, Hot Dip Galvanized
Origin	China

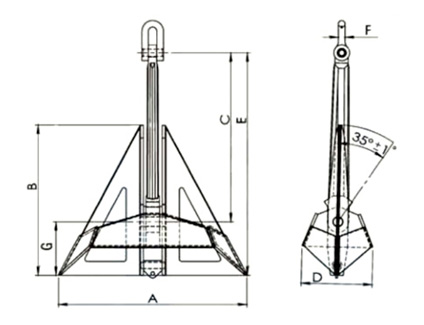

Specifications of CLGR® Delta Flipper Anchor HHP

Part No.	NOMINAL WEIGHT	SIZE（mm）
		SIZE（mm）
		A	B	C	D	E	F
CRDEHHP01	300	1200	960	1080	457	1380	45
CRDEHHP02	500	1500	1200	1350	571	1725	50
CRDEHHP03	750	1780	1400	1600	665	2110	510
CRDEHHP04	1000	1875	1500	1686	714	2155	62
CRDEHHP05	1500	2250	1800	2024	840	2677	68
CRDEHHP06	2000	2363	1890	2124	900	2715	82
CRDEHHP07	2500	2540	2030	2280	965	2880	82
CRDEHHP08	3000	2700	2160	2430	1028	3105	90
CRDEHHP09	4000	2975	2380	2650	1130	3395	100
CRDEHHP10	5000	3250	2600	2922	1238	3735	110
CRDEHHP11	6000	3450	2760	3060	1316	3923	110
CRDEHHP12	7000	3575	2860	3216	1361	4116	117
CRDEHHP13	7500	3650	2925	3290	1390	4210	117
CRDEHHP14	8000	3730	2990	3360	1420	4300	130
CRDEHHP15	9000	3950	3160	3555	1504	4543	135
CRDEHHP16	10000	4100	3280	3690	1561	4715	140
CRDEHHP17	12000	4300	3440	3942	1638	5017	145
CRDEHHP18	13500	4670	3720	4195	1765	5535	150
CRDEHHP19	15000	4845	3875	4355	1830	5513	150
CRDEHHP20	18000	5140	4080	4610	1940	6080	160
CRDEHHP21	20000	5330	4260	4790	2010	6310	170
CRDEHHP22	22500	5490	4360	4905	2060	6470	180
CRDEHHP23	25000	5740	4590	5160	2165	6532	195
CRDEHHP24	30000	6100	4880	5486	2305	7225	195
CRDEHHP25	35000	6424	5138	5775	2426	7605	205
CRDEHHP26	40000	6715	5370	6036	2536	7948	210
CRDEHHP27	45000	6986	5588	6184	2640	8270	220
CRDEHHP28	50000	7230	5785	6500	2730	8560	225
CRDEHHP29	55000	7470	5975	6715	2820	8840	230
CRDEHHP30	60000	7690	6150	6910	2940	9100	240
CRDEHHP31	65000	7900	6315	7100	2980	9350	245
CRDEHHP32	70000	8095	6475	7275	3060	9580	250
CRDEHHP33	75000	8235	6590	7405	3110	9750	255
CRDEHHP34	80000	8460	6770	7610	3195	10020	260
CRDEHHP35	85000	8625	6900	7750	3255	10210	265
CRDEHHP36	90000	8800	7040	7910	3325	10420	270
CRDEHHP37	95000	8960	7170	8055	3385	10610	280
CRDEHHP38	100000	9110	7285	8190	3440	10780	280

CLGR® Are Expecting Your Inquiry!
