Anchor Swivel with Links Swivel Forerunner Grade U2 & 3 CLGR®

Name: Anchor Swivel with Links Swivel Forerunner Grade U2 & 3 CLGR®
Brand: CLGR®

The Anchor Swivel Forerunner, also known as Swivel Forerunner.

The swivel forerunner, a crucial rotating link in marine anchoring systems, serves as the primary connection between the anchor chain and anchor. This ISO 1704-compliant component typically features a five-part construction: end link, enlarged link, swivel shackle, enlarged link, and common link.

Manufactured from durable alloy steel, our swivel forerunners offer multiple surface treatment options including black paint, hot-dip galvanizing, and electro-galvanizing to suit various marine environments.

As the industry-standard solution for grade 2 and grade 3 anchor chains, it delivers both economic and safety advantages during anchor deployment and retrieval operations.

We provide customized configurations to meet specific vessel requirements while maintaining the highest quality standards for this essential marine hardware.

To Get A Quote >

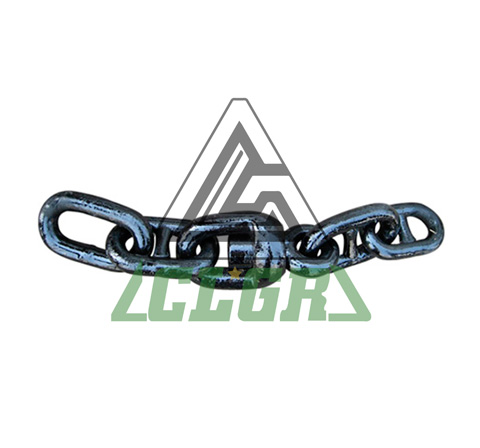

Anchor Swivel with Links Swivel Forerunner Grade U2 & 3 CLGR® Suppliers

Overview of Anchor Swivel with Links Swivel Forerunner Grade U2 & 3 CLGR®

Brand	CLGR®
Standard	ISO 1704 standards
Regular Joining Form	E+EL+SW+EL+C End Link, Enlarged Link, Swivel Shackle, Enlarged Link, Common Link
Grade	Grade U2 & 3
Material	alloy steel/carbon steel/stainless steel
Surface Finish	Black painting/hot dip galvanized/electro-galvanized

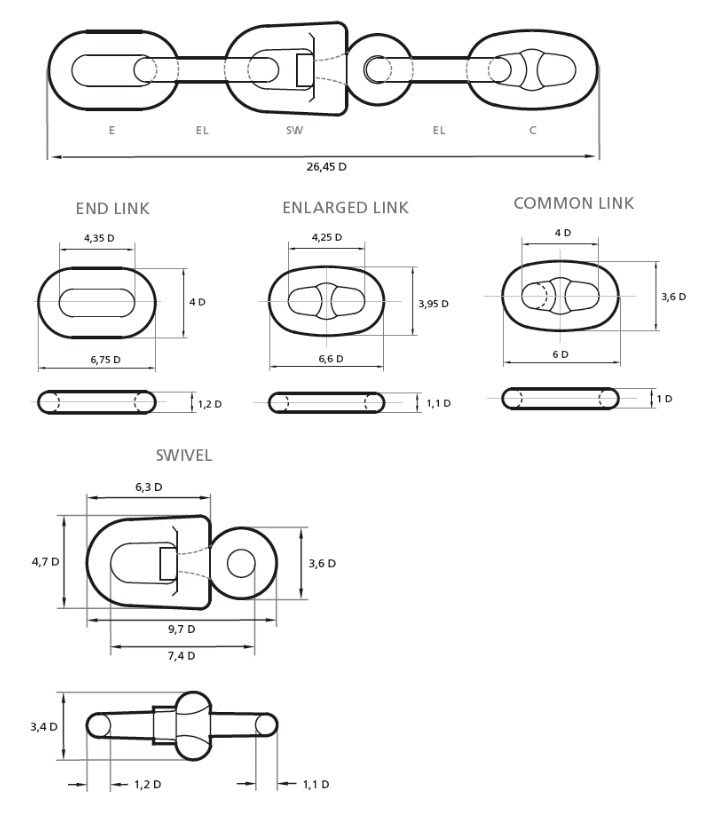

Specifications of Anchor Swivel with Links Swivel Forerunner Grade U2 & 3 CLGR®

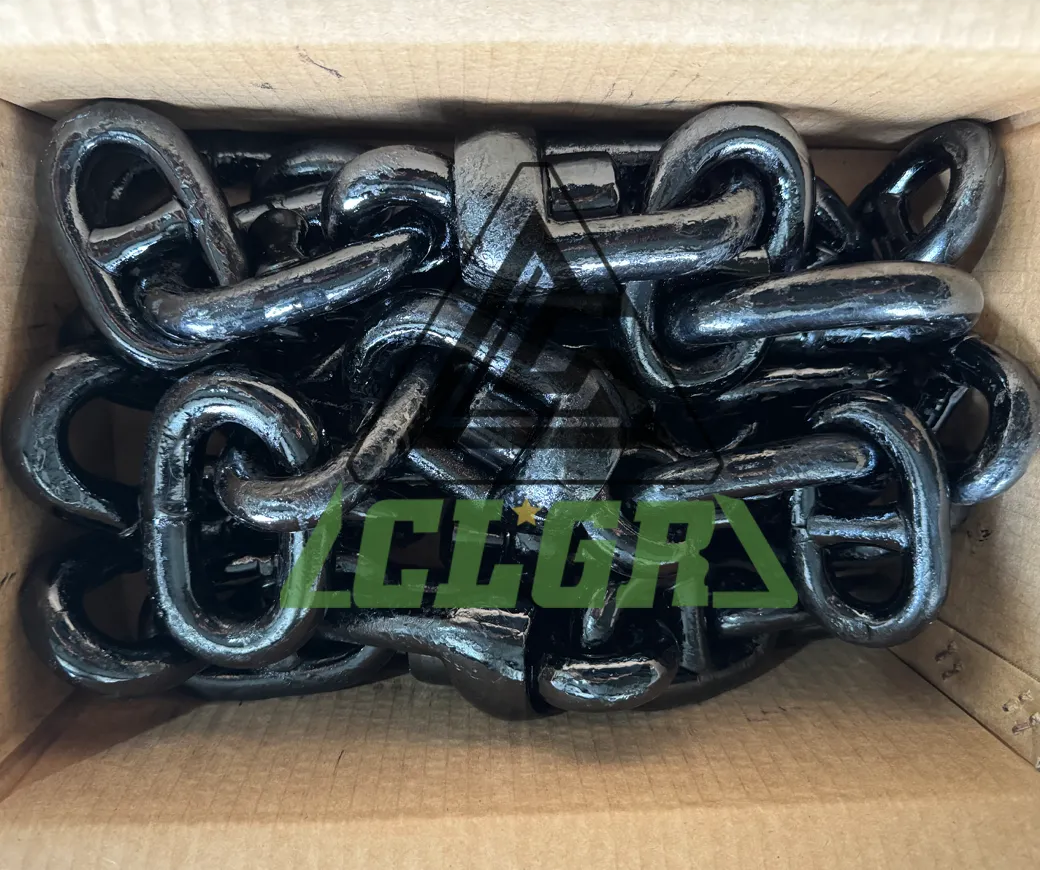

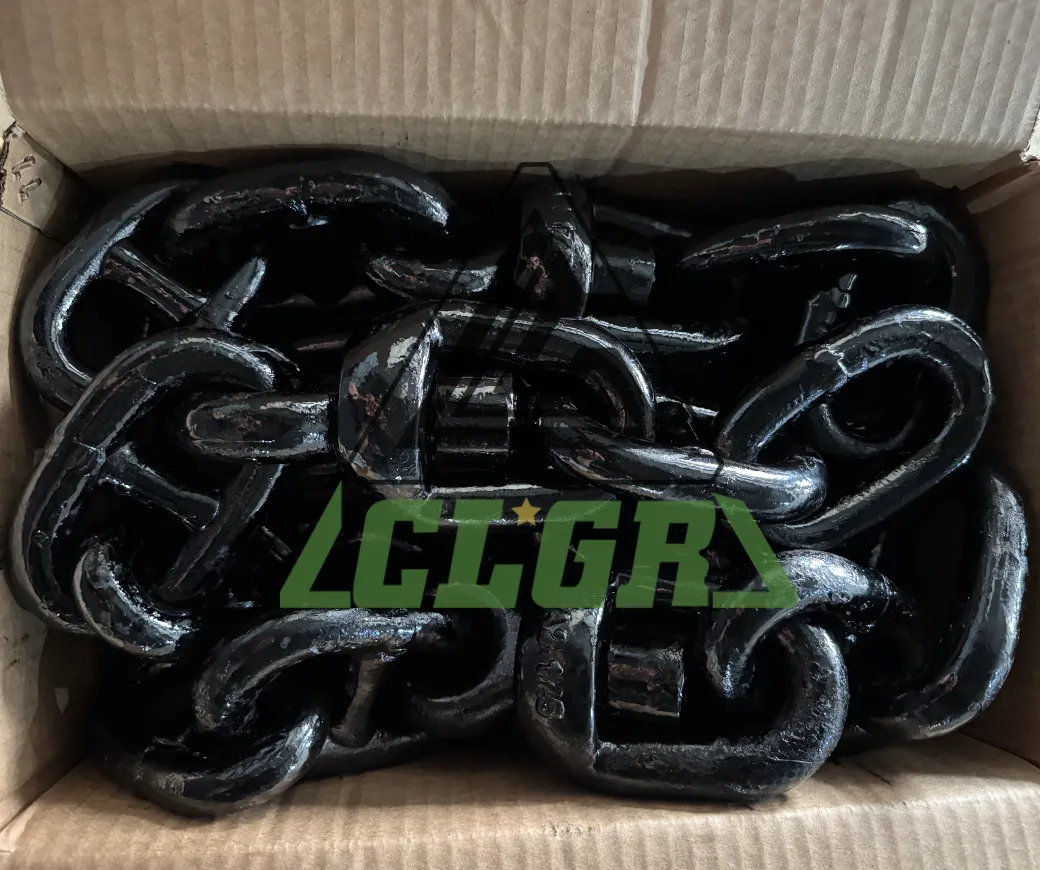

Bulk Photos of Anchor Swivel with Links Swivel Forerunner Grade U2 & 3

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
