CLGR® HHP Moorfast Anchor - Marine Offshore - The China Manufacturer Supplier

Name: CLGR® HHP Moorfast Anchor - Marine Offshore - The China Manufacturer Supplier
Brand: CLGR®

The CLGR® HHP Moorfast Anchor, also known as Offdrill anchor, Moorfast HHP anchor, Marine Anchor and Offshore anchor.

Designed with enlarged flukes and tripping palms, this anchor enables quick and stable penetration in sand or mud bottoms. It bears a resemblance to the Danforth anchor or Stato anchor. In fact, the Stato anchor shares the same structure as the Moorfast, yet features some stiffeners on its fluke.

The Offdrill Anchor is an offshore - type anchor. It is engineered with enlarged flukes and tripping palms, allowing for quick and stable penetration in sand or mud bottoms.

These anchors are of high quality and possess good stability. Their weight ranges from 227 kgs to 31780 kgs.

Should you need more information, please do not hesitate to contact us.

To Get A Quote >

CLGR® HHP Moorfast Anchor - Marine Offshore - The China Manufacturer Supplier

Overview of CLGR® HHP Moorfast Anchor – Marine Offshore

Brand	CLGR®
Material	Carbon Steel
Weight	227kg-31,780kg
Categories	Anchor, Marine Equipment
Finish	Blacking Bitumen Painting
Application	Used for mooring system in the offshore filed, with the feature of High Stability, Easy Handling and Good Performance.

Specifications of CLGR® HHP Moorfast Anchor – Marine Offshore

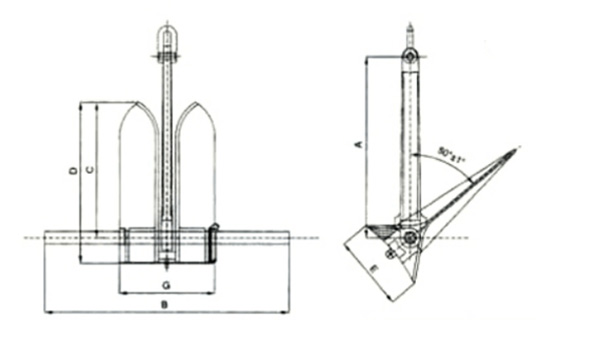

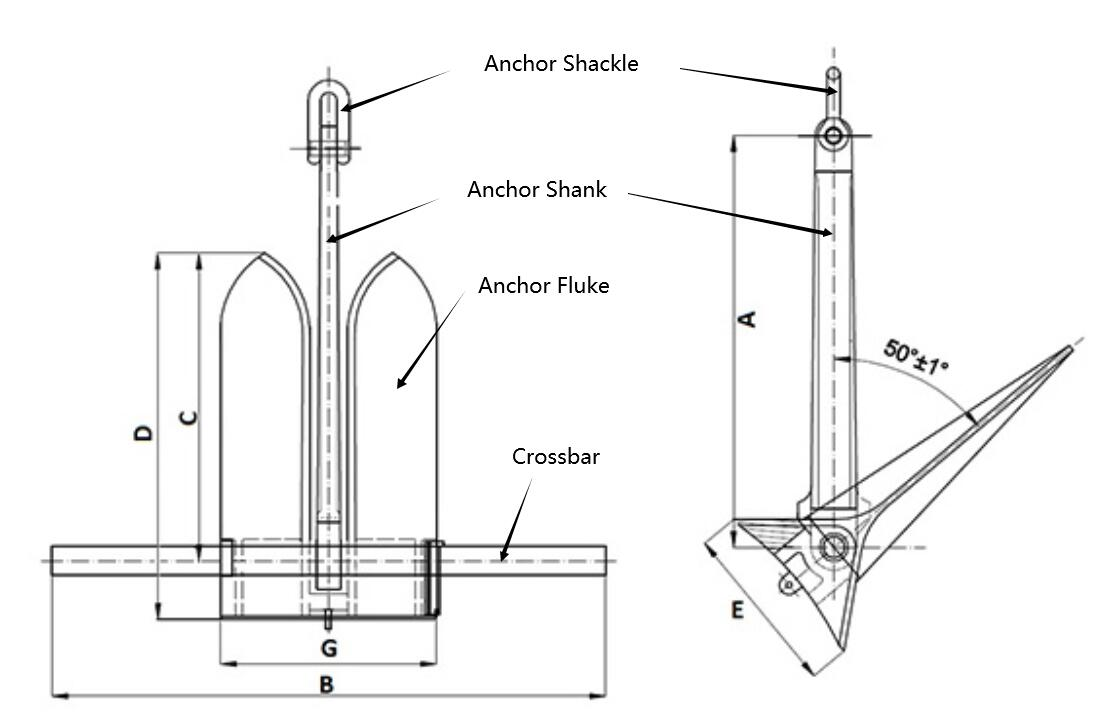

Part No.	Anchor Weight (kg)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	G (mm)	Q (mm)
CROFA227	227	1205	1330	725	865	395	495	35
CROFA454	454	1520	1675	915	1090	500	625	50
CROFA680	680	1770	2120	1050	1250	575	740	50
CROFA908	908	1950	2340	1160	1380	630	815	65
CROFA1135	1135	2100	2520	1250	1485	680	875	65
CROFA1360	1360	2230	2655	1330	1580	725	930	75
CROFA1590	1590	2350	2820	1400	1665	765	980	75
CROFA1815	1815	2500	2945	1460	1740	800	1020	75
CROFA2045	2045	2555	3065	1520	1805	830	1065	80
CROFA2270	2270	2645	3175	1575	1870	860	1100	90
CROFA2725	2725	2815	3375	1675	1990	910	1170	100
CROFA3180	3180	2950	3540	1755	2090	940	1230	100
CROFA3630	3630	3095	3890	1840	2190	1012	1290	100
CROFA4540	4540	3335	4000	1985	2360	1070	1390	115
CROFA5445	5445	3540	4250	2110	2505	1140	1475	115
CROFA6350	6350	3730	4500	2220	2640	1228	1555	130
CROFA6810	6810	3900	4750	2220	2640	1228	1555	130
CROFA7260	7260	3900	4750	2320	2760	1280	1625	130
CROFA9080	9080	4200	4900	2500	2975	1385	1750	130
CROFA11350	11350	4500	5165	2680	3205	1530	1875	130
CROFA13620	13620	4810	5335	2860	3405	1545	2000	130
CROFA15000	15000	4900	5390	2955	3515	1585	2070	140
CROFA18160	18160	5120	5635	3090	3675	1692	2165	155
CROFA20430	20430	5330	5865	3215	3850	1760	2250	155
CROFA22700	22700	5600	6450	3360	4025	1900	2365	155
CROFA27240	27240	5950	6535	3570	4250	1955	2515	170
CROFA31780	31780	6260	6875	3755	4470	2055	2645	185
