CLGR® Stainless Steel Flexible Swivel - WF Type Trawling Gear

Name: CLGR® Stainless Steel Flexible Swivel - WF Type Trawling Gear
Brand: CLGR®

CLGR® Stainless Steel Flexible Swivel -WF Type Trawling Gear, also known as trawling swivel and Stainless Steel Fishing Swivel Flex.

Our Trawling Gear Stainless Steel Flexible Swivel WF type is manufactured from grade 304 or 316 stainless steel with high-polish, featuring a 5:1 safety factor for reliable performance in corrosive environments.

Stainless Steel Flexible Swivel with Flat often used in the fishing and trawling industry. This Stainless-Steel Swivel FLEX prevents chains, ropes, and wires twisted or tangled.

Available in sizes: 13mm,16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm, 45mm with customizable color coding for easy identification.

Important: NOT TO BE USED FOR LIFTING!

To Get A Quote >

2 CLGR® Stainless Steel Flexible Swivel WF Type Trawling Gear

clgr-stainless-steel-flexible-swivel-wf-type-trawling-gear-use

 

Overview of CLGR® Stainless Steel Flexible Swivel-WF Type Trawling Gear

Brand	CLGR®
Size	13mm 16mm 19mm 22mm 25mm 28mm 32mm 38mm 45mm
WLL	5:1
Material	Stainless Steel grade 304 or 316
Finish	Highly Polished
Processing	Welding
Type	WF Type
Important Note	NOT TO BE USED FOR LIFTING

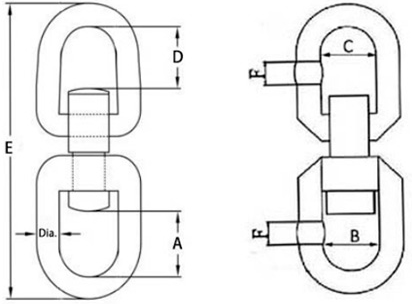

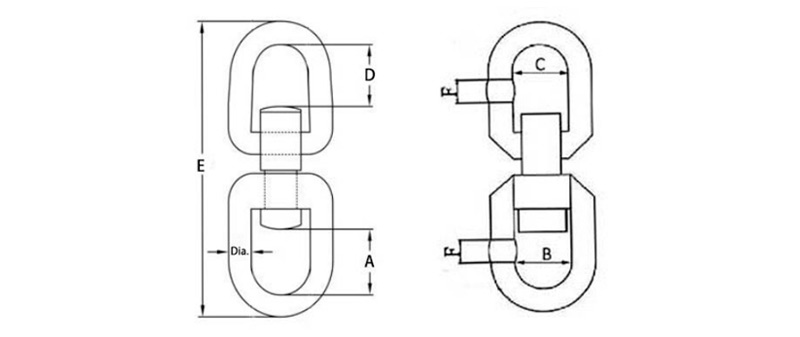

Specifications of CLGR® Stainless Steel Flexible Swivel-WF Type Trawling Gear

Part No.	Size	WLL 5:1	A	B	C	D	E	F	Weight	Flat Thickness
	Size	WLL 5:1	A	B	C	D	E	F	Weight	Flat Thickness
	mm	ton	mm						kg	(mm)
CRSSFWF13	13mm	1.6	30	28	28	34	160	11	0.71	9
CRSSFWF16	16mm	3.2	41	38	37	48	200	20	1.3	12
CRSSFWF19	19mm	4.7	44	40	40	54	235	20	2	15
CRSSFWF22	22mm	6.3	44	40	40	55	255	22	2.7	17
CRSSFWF25	25mm	8.3	55	50	45	70	320	25	4.4	18
CRSSFWF28	28mm	10.4	55	50	50	80	330	32	5.6	20
CRSSFWF32	32mm	12	55	55	54	93	360	40	8.6	24
CRSSFWF38	38mm	18	62	58	60	110	410	40	13.5	29
CRSSFWF45	45mm	28	75	70	70	115	515	53	22.5	35
