CLGR® High Tensile Bolt Type Chain Shackle U.S. Type

Name: CLGR® High Tensile Bolt Type Chain Shackle U.S. Type
Brand: CLGR®

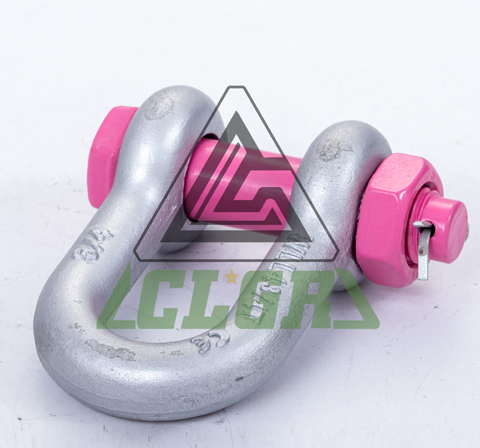

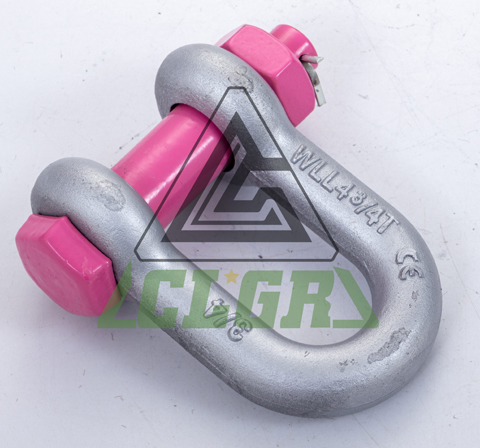

CLGR® Bolt Type Chain Shackle, also known as D/Dee Shackle with Safety Pin.

This Bolt Type Chain Shackle combines a superior carbon steel body and an alloy steel pin, protected by a galvanized finish for durability and corrosion resistance. The shackles for sale meet US federal specifications for strength and durability. Bolt Type Bow Shackle provides an additional layer of security, preventing accidental loosening and ensuring a stable connection point between rigging equipment, such as chains, ropes, or slings. The shackles for sale are commonly used in construction and maritime.

CLGR® Bolt Type Chain Shackle is available in a range of sizes. Special specifications and marks can be made according to customers' requirements.

To Get A Quote >

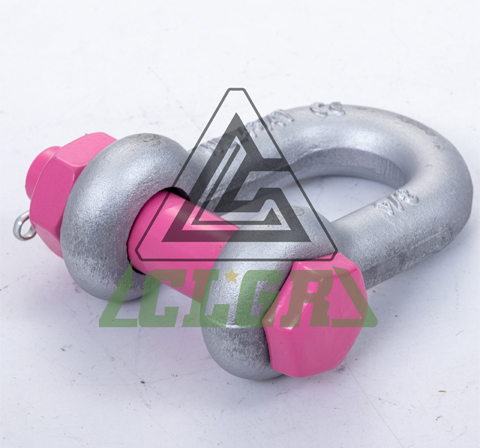

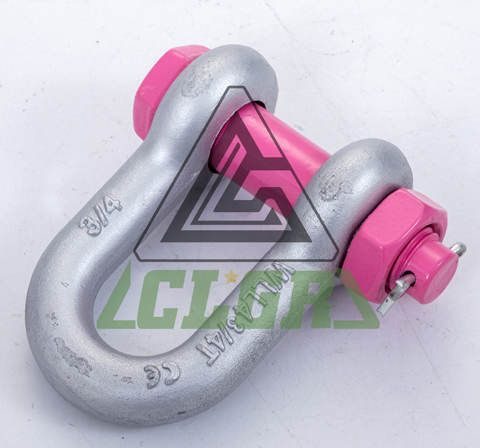

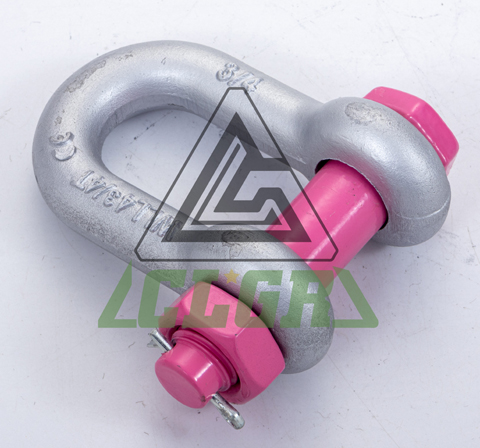

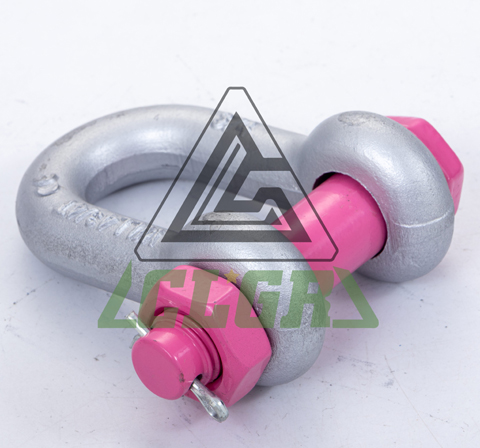

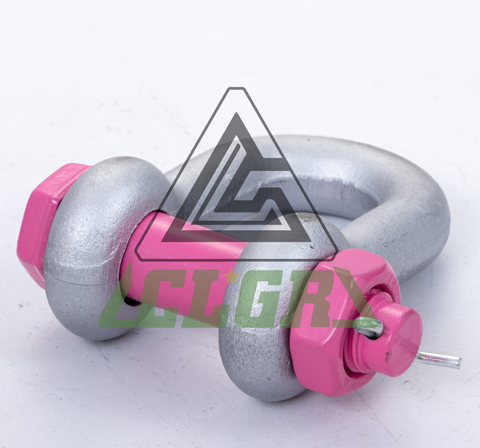

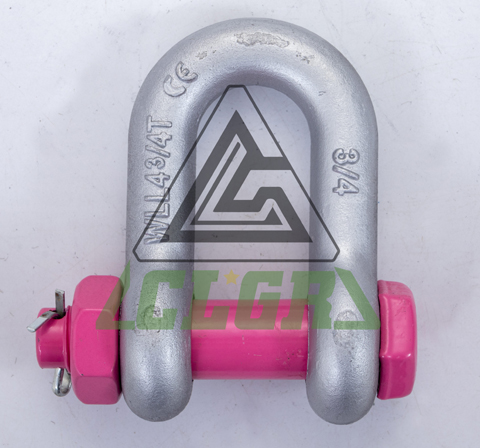

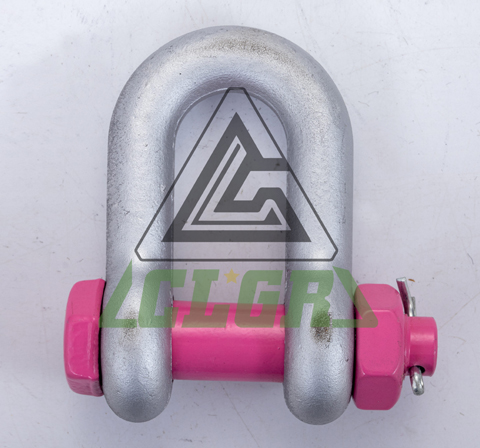

clgr® high tensile bolt type chain shackle u

 

Overview of CLGR® High Tensile Bolt Type Chain Shackle U.S. Type

Brand	CLGR®
Technical Notes	U.S. Federal Specification (ASME B30.26)
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel / Superior Carbon Steel
Shackle Shape	Dee Shackle (Chain Shackle)
Safety Factor	6:1 / 4:1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin: Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated
Size	3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 3-1/2”, 4”
Tips	Special specification and marks can be made according to customers' requirements

Specification of CLGR® High Tensile Bolt Type Chain Shackle U.S. Type

drawing-clgr-high-tensile-bolt-type-chain-shackle-us-type

Part No.	Size	WLL	Weight	Dimensions (in.)									Tolerance +/-(in.)
Part No.	(in)	(t)	(lbs)	A	B	D	F	G	K	M	P	R	G	A
CR2150DSBT3/16	3/16	1/3	0.06	0.38	0.25	0.88	0.19	0.6	0.56	1.47	0.98	0.19	0.06	0.06
CR2150DSBT1/4	1/4	1/2	0.11	0.47	0.31	1.13	0.25	0.78	0.61	1.84	1.28	0.25	0.06	0.06
CR2150DSBT5/16	5/16	3/4	0.22	0.53	0.38	1.22	0.31	0.84	0.75	2.09	1.47	0.31	0.06	0.06
CR2150DSBT3/8	3/8	1	0.33	0.66	0.44	1.44	0.38	1.03	0.91	2.49	1.78	0.38	0.13	0.06
CR2150DSBT7/16	7/16	1 - 1/2	0.49	0.75	0.5	1.69	0.44	1.16	1.06	2.91	2.03	0.44	0.13	0.06
CR2150DSBT1/2	1/2	2	0.79	0.81	0.64	1.88	0.5	1.31	1.19	3.28	2.31	0.5	0.13	0.06
CR-2150-BTDS5/8	5/8	3 - 1/4	1.68	1.06	0.77	2.38	0.63	1.69	1.5	4.19	2.94	0.69	0.13	0.06
CR2150DSBT3/4	3/4	4 - 3/4	2.72	1.25	0.89	2.81	0.75	2	1.81	4.97	3.5	0.81	0.25	0.06
CR2150DSBT7/8	7/8	6 - 1/2	3.95	1.44	1.02	3.31	0.88	2.28	2.09	5.83	4.03	0.97	0.25	0.06
CR2150DSBT1/1	1	8 - 1/2	5.66	1.69	1.15	3.75	1	2.69	2.38	6.56	4.69	1.06	0.25	0.06
CR2150DSBT1-1/8	1 - 1/8	9 - 1/2	8.27	1.81	1.25	4.25	1.13	2.91	2.69	7.47	5.16	1.25	0.25	0.06
CR2150DSBT1-1/4	1 - 1/4	12	11.71	2.03	1.4	4.69	1.29	3.25	3	8.25	5.75	1.38	0.25	0.06
CR2150DSBT1-3/8	1 - 3/8	13 - 1/2	15.83	2.25	1.53	5.25	1.42	3.63	3.31	9.16	6.38	1.5	0.25	0.13
CR2150DSBT1-1/2	1 - 1/2	17	19	2.38	1.66	5.75	1.53	3.88	3.63	10	6.88	1.62	0.25	0.13
CR2150DSBT1-3/4	1 - 3/4	25	33.91	2.88	2.04	7	1.84	5	4.19	12.34	8.8	2.25	0.25	0.13
CR2150DSBT2/1	2	35	52.25	3.25	2.3	7.75	2.08	5.75	4.81	13.68	10.15	2.4	0.25	0.13
CR2150DSBT2-1/2	2 - 1/2	55	98.25	4.13	2.8	10.5	2.71	7.25	5.69	17.9	12.75	3.13	0.25	0.25
CR2150DSBT3-1	3	85	154	5	3.3	13	3.12	7.88	6.5	21.5	14.62	3.62	0.25	0.25
CR2150DSBT3-1/2	3 - 1/2	120	265	5.25	3.76	14.63	3.62	9	8	24.88	17.02	4.38	0.25	0.25
CR2150DSBT4/1	4	150	338	5.5	4.26	14.5	4	10	9	25.68	18	4.56	0.25	0.25

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
