CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye

Name: CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye
Brand: CLGR®

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye, also known as trigger snap shackle.

Crafted from high-resistance 17.4 PH stainless steel, CLGR® Speedlink is the new trigger snap shackle engineered for spinnaker operations on racing boats to ensure exceptional strength and corrosion resistance in marine environments.

Various applications in spinnaker operations: sheets, halyards, peeling.

To Get A Quote >

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye china manufacturer

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye china

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye china wholesale

CLGR® Stainless Steel Speedlink Trigger Snap Shackle Universal Eye china supplier

 

Overview of CLGR® Speedlink Trigger Snap Shackle Universal Eye

Brand	CLGR®
Material	HR stainless steel 17.4 PH
Processing	Forged
Finish	Highly Polishing
Size	134mm Speedlink trigger snap shackle Universal eye 2656
Tips	Not for overhead lifting
Applications	Spinnaker operations: sheets, halyards, peeling
Packaging	Cartons and then on Pallets (customization are available)

Specifications of CLGR® Speedlink Trigger Snap Shackle Universal Eye

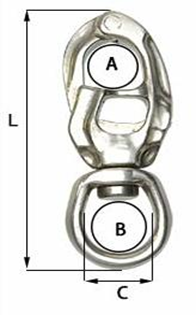

Part No.	Length	A	B	C	Working Load	Breaking Load	Weight
Part No.	(mm)				kgs
CRSTSS2656	134	26	27	32	4300	8700	0.326
