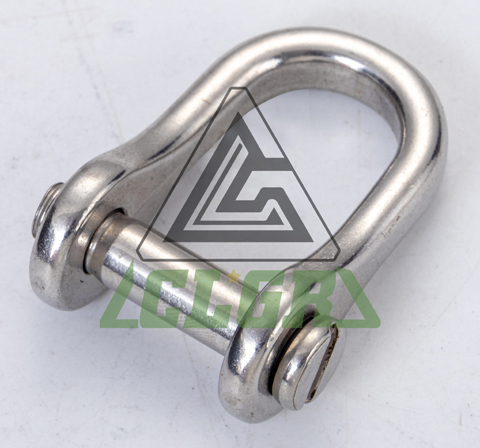

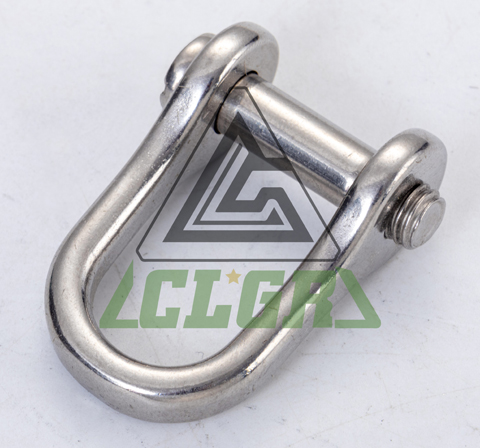

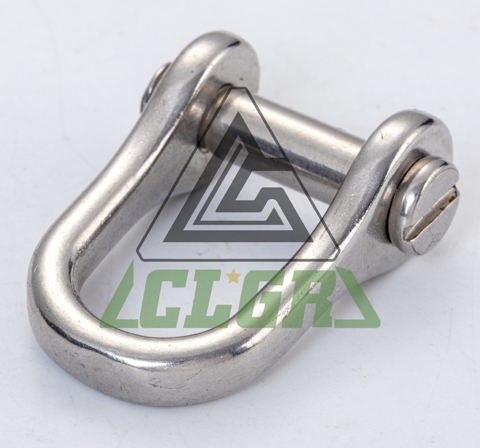

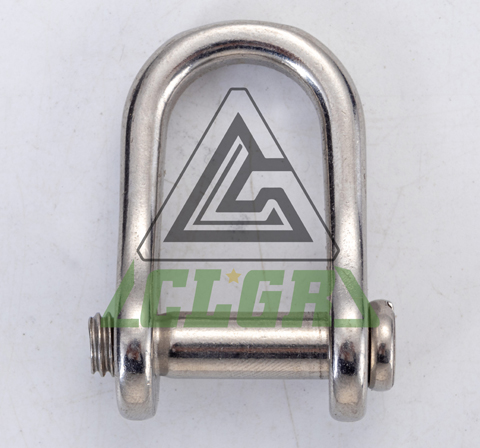

CLGR® Stainless Steel Dee Shackle Countersunk Flush Pin, also known as Stainless Steel Countersunk D Shackle Slotted Head.
D Shackles with Countersunk Slotted Pin is manufactured from marine grade 316 stainless steel for excellent rust and corrosion resistance.
Mainly used in the marine industry and fishing to connect chains or ropes.
Compared to traditional shackle this one comes with a slotted pin that can only be opened with a flathead screwdriver. It meets European specifications for strength and durability.
CLGR® Stainless Steel D Shackle with Countersunk Slotted Pin is available in a range of sizes. Special specifications and marks can be made according to customers‘ requirements.
| Brand | CLGR® |
| Size | 5mm, 6mm, 8mm, 10mm, 12mm |
| Material | Stainless steel 304 or 316 |
| Surface Finish | Forged, Stamping |
| Processing | Highly Polishing, Electrophoretic Coating |
| Important Note | Not suitable for lifting applications |

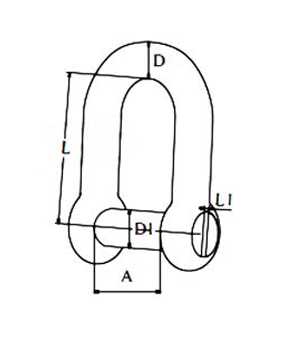

| Part No. | D (mm) | A (mm) | L (mm) | D1 (mm) | L1 (mm) | Min.BL (KN) |
| CRSSDSCSP05 | 5 | 10 | 20 | 5 | 0.8 | 9.1 |
| CRSSDSCSP06 | 6 | 12 | 24 | 6 | 1 | 13.2 |
| CRSSDSCSP08 | 8 | 16 | 32 | 8 | 1.2 | 23.7 |
| CRSSDSCSP10 | 10 | 20 | 40 | 10 | 1.2 | 37.3 |
| CRSSDSCSP12 | 12 | 24 | 48 | 12 | 2 | 54.9 |
