CLGR® Stainless Steel Fixed Snap Shackle

Name: CLGR® Stainless Steel Fixed Snap Shackle
Brand: CLGR®

CLGR® Stainless Steel Fixed Snap Shackle also known as Fixed bail snap shackle, Snap Shackle With Fixed Eye and Quick release 316 stainless steel fixed eye snap shackle for marine applications.

Crafted from Type 316 or 304 stainless steel through precision casting, these fixed snap these rated stainless steel shackles deliver exceptional corrosion resistance and durability for demanding marine environments. Featuring a fixed eye design and quick-release plunger pin mechanism, these rated stainless steel shackles enable rapid connections and disconnections while maintaining secure, reliable performance. The captive pin is permanently set during assembly to prevent detachment, ensuring safety during operation.

Ideal for halyards, safety tethers, and offshore rigging applications, these rated stainless steel shackles' fixed design minimizes movement and wear in static setups.

Finished with a high-polish surface for enhanced corrosion protection and aesthetic appeal.

Available in sizes 52mm, 66mm, and 96mm, these premium snap rated stainless steel shackles combine robust construction with effortless operation.

Custom specifications and markings can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

Stainless Steel Fixed Snap Shackle china manufacturer

Stainless Steel Fixed Snap Shackle China Supplier

 

Overview of Stainless Steel Fixed Snap Shackle

Brand	CLGR®
Origin	China
Material	Type 316 or 304 Stainless steel Fixed Snap Shackle
Processing	Cast
Finish	Highly Polished
Size	52mm, 66mm, 96mm

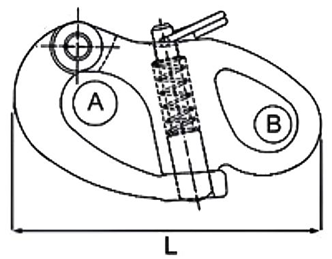

Specifications of Stainless Steel Fixed Snap Shackle

Part No.	L	A	B	WLL	WT
Part No.	mm	mm	mm	kgs	kgs
CRSSFSS001	52	12	9	0.45	0.04
CRSSFSS002	66	16	12	0.65	0.08
CRSSFSS003	96	22	16	0.95	0.235

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
