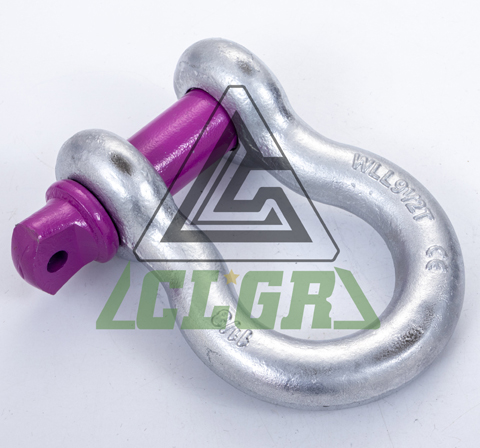

CLGR® Anchor Shackle Screw Pin High Tensile US Type

Name: CLGR® Anchor Shackle Screw Pin High Tensile US Type
Brand: CLGR®

CLGR® High Tensile Anchor Shackle Screw Pin from China, also known as Bow Shackles with Screw Pin.

Constructed from heat-treated forged carbon steel with alloy pins, these shackles for sale are built to endure.

The Working Load Limits (WLL) are clearly marked on each shackle, featuring the industry's highest safety factor of 6 to 1. The shackles for sale come with a convenient screw pin that can be fastened by hand. Reduced working load limits are necessary for side-loading applications.

CLGR® provides a wide range of sizes. Special specifications and markings can be customized according to customers' requirements.

The shackles for sale are identified with a heat number, ensuring full traceability throughout their lifecycle.

To Get A Quote >

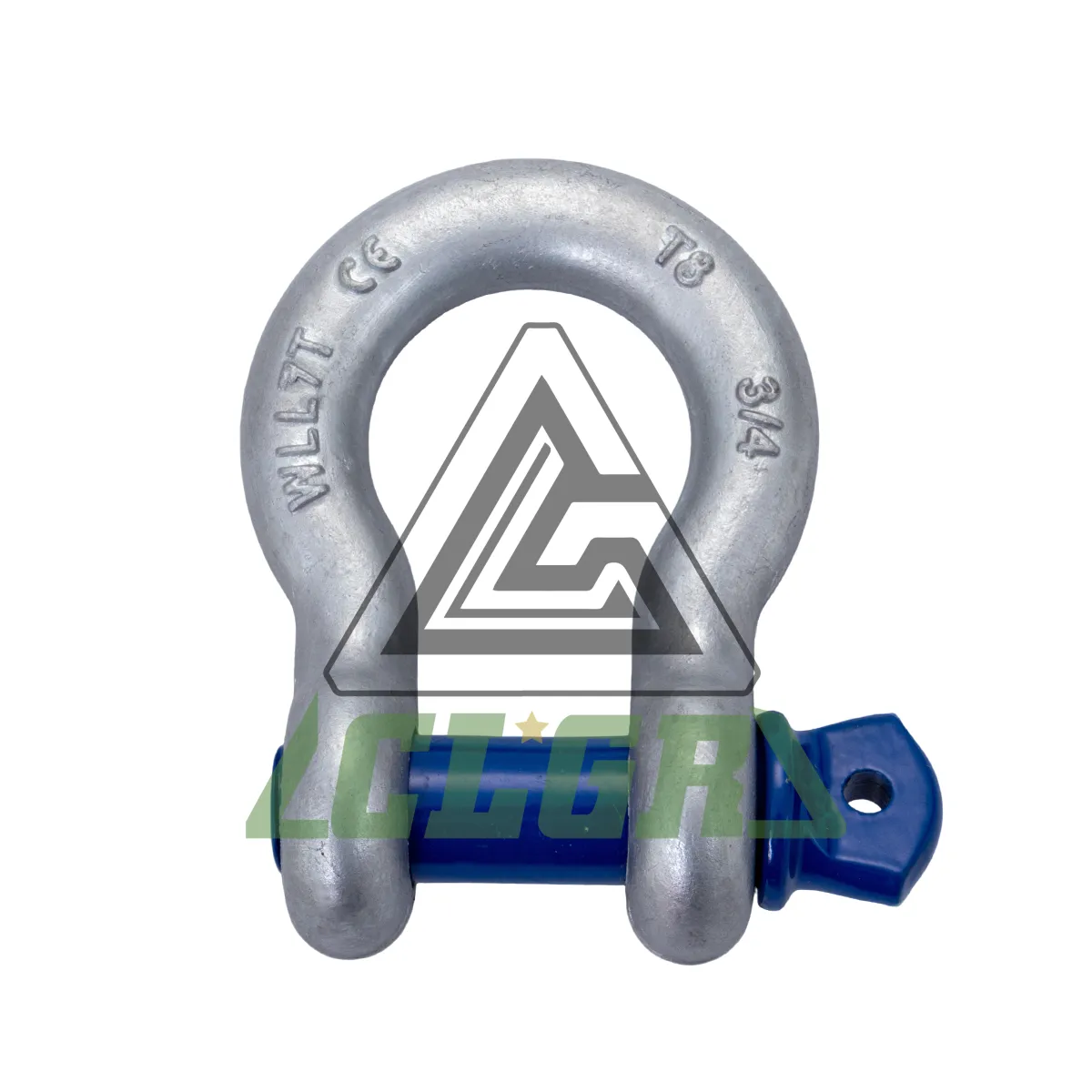

4 CLGR® Anchor Shackle Screw Pin High Tensile US Type

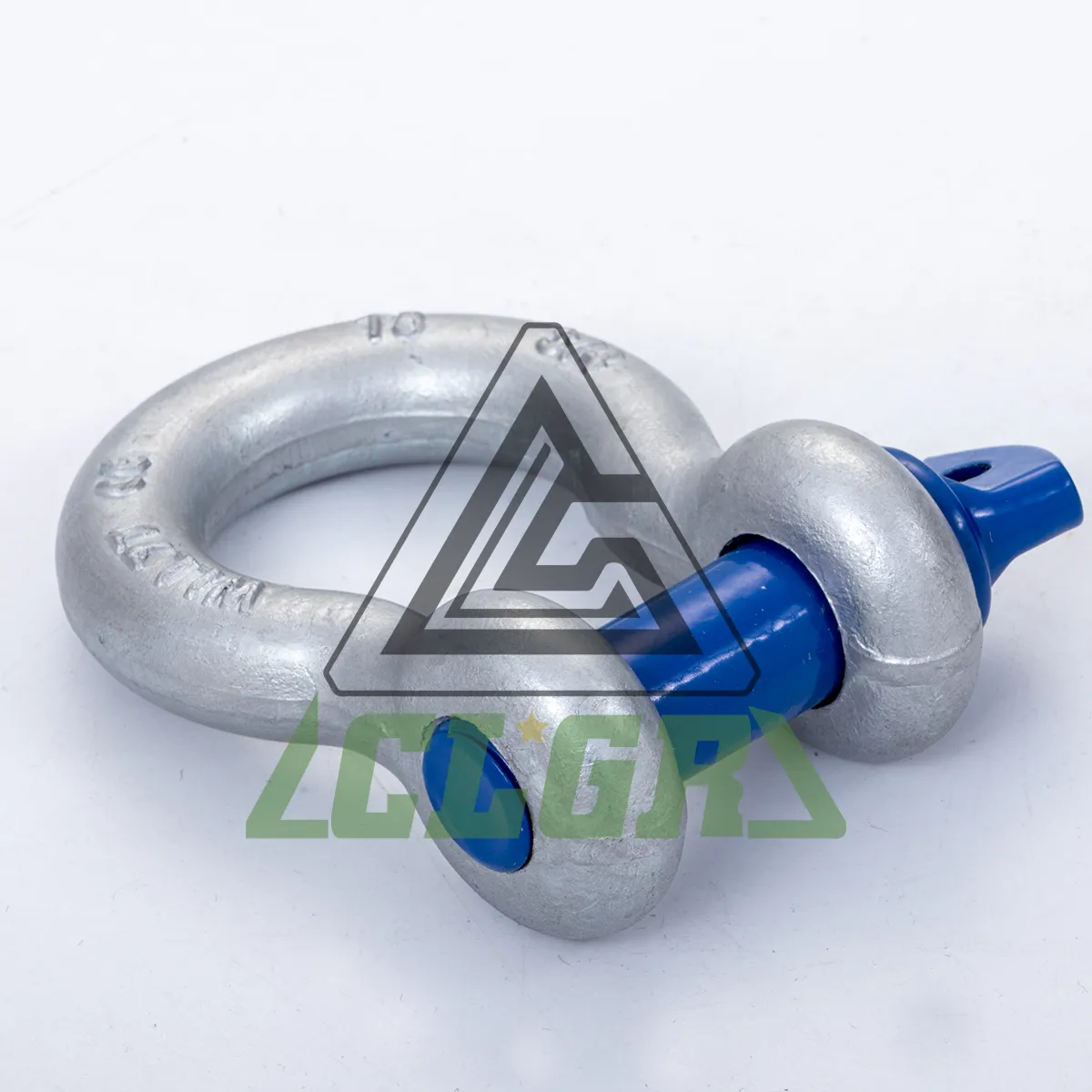

anchor shackle screw pin high tensile us type

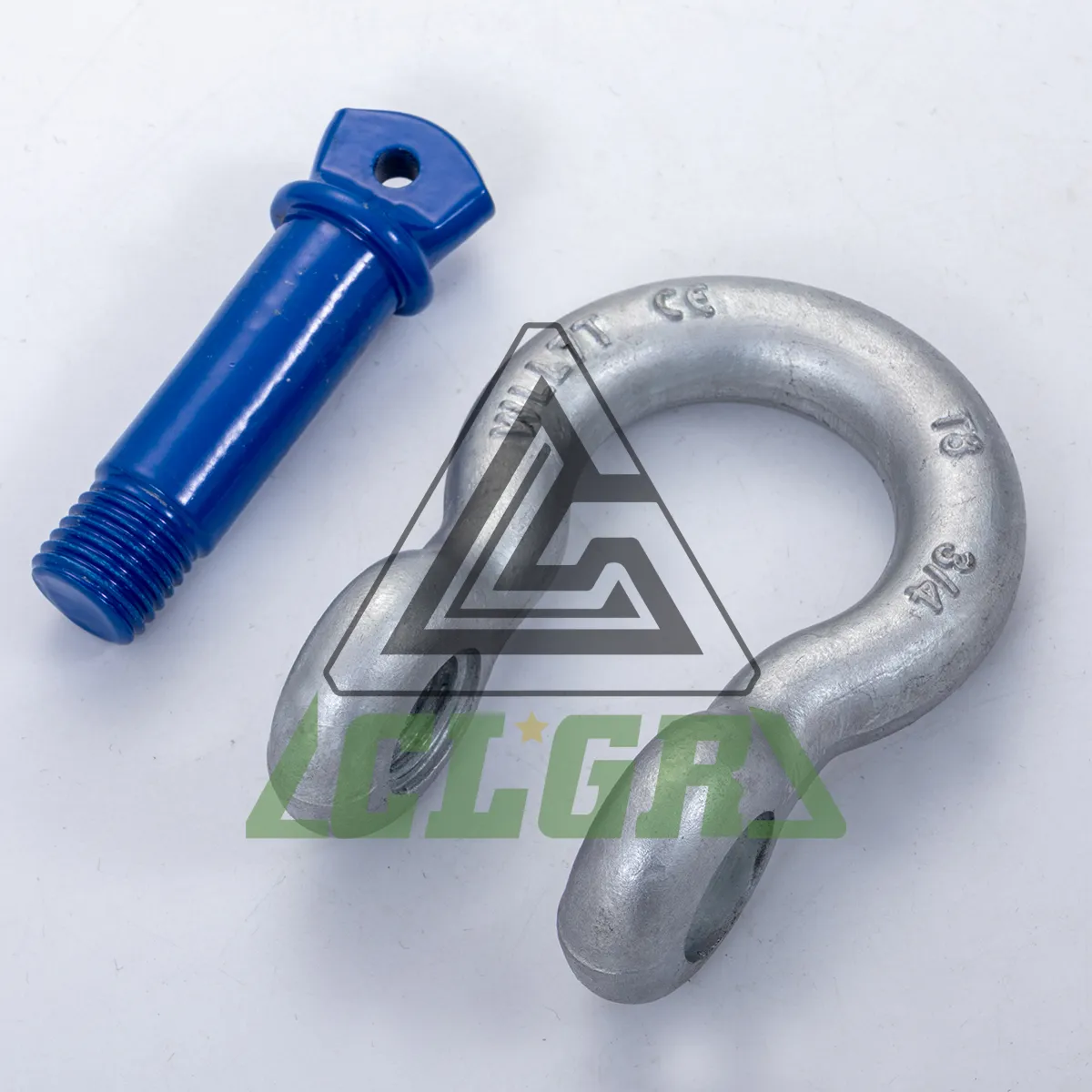

anchor shackle screw pin high tensile us type china supplier

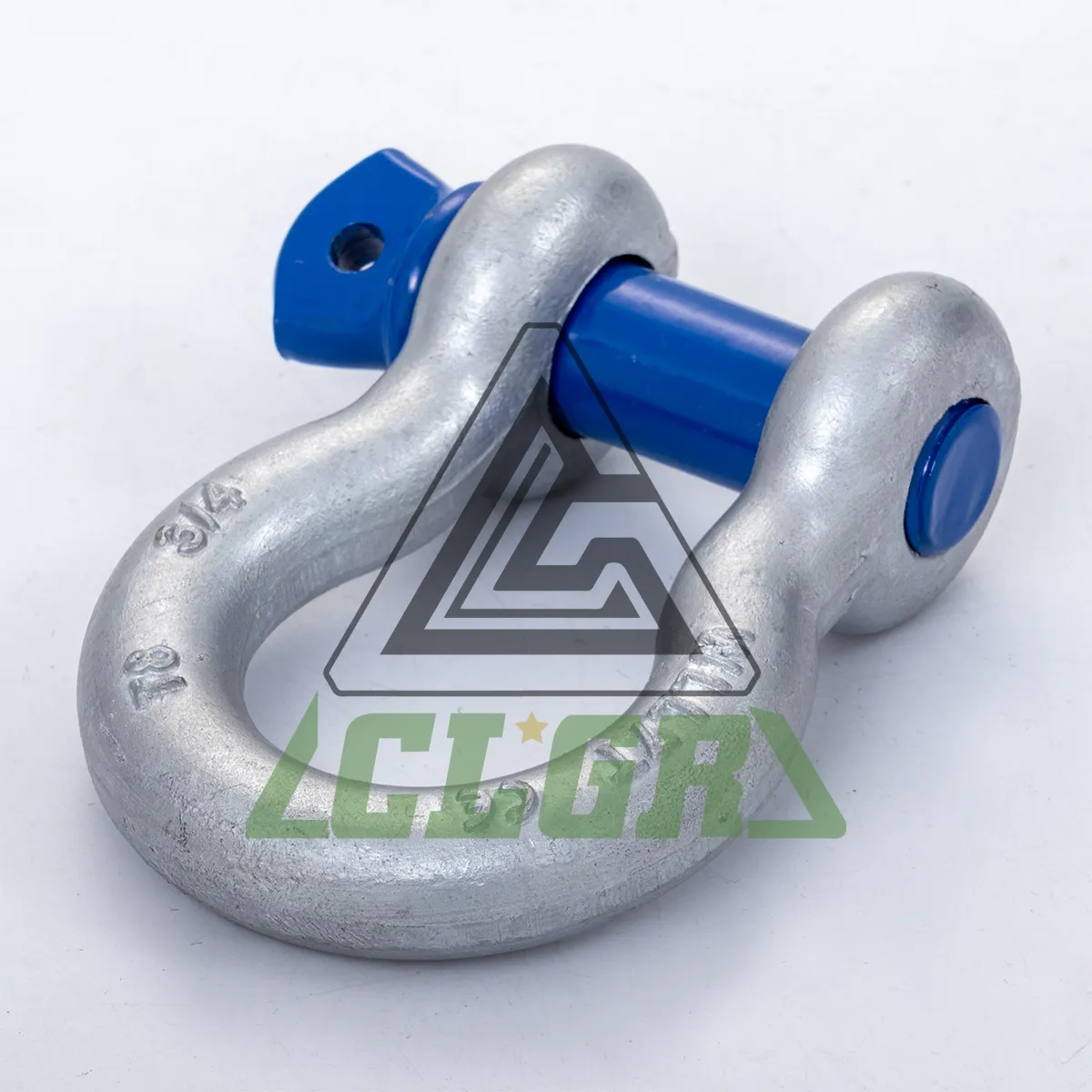

anchor shackle screw pin high tensile us type china manufacturer

 

Overview of CLGR® Anchor Shackle Screw Pin High Tensile US Type

Brand	CLGR®
Size	3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”
Standard	U.S. Federal Specification (ASME B30.26)
Safety Factor	6:1/4:1
Material	Body Superior Carbon Steel, Screw Pin Alloy Steel
Surface Finish	Zinc Plated, Hot Dipped Galvanized, Powder Coating, Self-Colored
Processing	Drop Forged, Heat Treatment

Specification of CLGR® Anchor Shackle Screw Pin High Tensile US Type

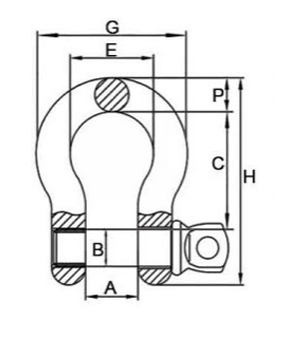

Specification of CLGR® Anchor Shackle Screw Pin G-209 US TYPE

Part No.	Size	WLL	Weight	Dimensions (in.)							Tolerance +/-
Part No.	(in.)	(t)	(lbs)	A	B	C	E	G	H	P	C	A
CR209HT-BS-SP3/16	3/16	1/3	0.06	0.38	0.25	0.88	0.6	0.98	1.47	0.19	0.06	0.06
CR209HT-BS-SP1/4	1/4	1/2	0.1	0.47	0.31	1.13	0.78	1.28	1.84	0.25	0.06	0.06
CR209HT-BS-SP5/16	5/16	3/4	0.19	0.53	0.38	1.22	0.84	1.47	2.09	0.31	0.06	0.06
CR209HT-BS-SP3/8	3/8	1	0.31	0.66	0.44	1.44	1.03	1.78	2.49	0.38	0.13	0.06
CR209HT-BS-SP7/16	7/16	1-1/2	0.38	0.75	0.5	1.69	1.16	2.03	2.91	0.44	0.13	0.06
CR209HT-BS-SP1/2	1/2	2	0.72	0.81	0.63	1.88	1.31	2.31	3.28	0.5	0.13	0.06
CR209HT-BS-SP5/8	5/8	3-1/4	1.37	1.06	0.75	2.38	1.69	2.94	4.19	0.69	0.13	0.06
CR209HT-BS-SP3/4	3/4	4-3/4	2.35	1.25	0.88	2.81	2	3.5	4.97	0.81	0.25	0.06
CR209HT-BS-SP7/8	7/8	6-1/2	3.62	1.44	1	3.31	2.28	4.03	5.83	0.97	0.25	0.06
CR209HT-BS-SP1/1	1	8-1/2	5.03	1.69	1.13	3.75	2.69	4.69	6.56	1.06	0.25	0.06
CR209HT-BS-SP1-1/8	1-1/8	9-1/2	7.41	1.81	1.25	4.25	2.91	5.16	7.47	1.25	0.25	0.06
CR209HT-BS-SP1-1/4	1/1/4	12	9.5	2.03	1.38	4.69	3.25	5.75	8.25	1.38	0.25	0.06
CR209HT-BS-SP1-3/8	1-3/8	13-1/2	13.53	2.25	1.5	5.25	3.63	6.38	9.16	1.5	0.25	0.13
CR209HT-BS-SP1-1/2	1-1/2	17	17.2	2.38	1.63	5.75	3.88	6.88	10	1.62	0.25	0.13
CR209HT-BS-SP1-3/4	1-3/4	25	27.78	2.88	2	7	5	8.86	12.34	2.25	0.25	0.13
CR209HT-BS-SP2/1	2	35	45	3.25	2.25	7.75	5.75	9.97	13.68	2.4	0.25	0.13
CR209HT-BS-SP2-1/2	2-1/2	55	85.75	4.13	2.75	10.5	7.25	12.87	17.84	3.13	0.25	0.25
