CLGR® Stainless Steel Eye Swivel Snap Shackle

Name: CLGR® Stainless Steel Eye Swivel Snap Shackle
Brand: CLGR®

CLGR® Stainless Steel Eye Swivel Snap Shackle also known as quick release snap shackle with swivel eye, Swivel eye snap shackle, Stainless steel snap shackle, Rotating eye snap shackle and Electrophoretic coating 316 stainless steel swivel eye snap shackle for marine rigging.

Precision-cast from marine-grade AISI 304/316 stainless steel, these eye swivel snap rated stainless steel shackles deliver exceptional corrosion resistance and durability for tough marine/industrial use. These rated stainless steel shackles' 360° swivel eye, spring-loaded quick-release, and captive pin enable one-handed operation, fast tensioned connections, and secure, anti-accidental-detachment engagement.

Ideal for trawling, sailboat rigging, halyards, and industrial lifting systems, these rated stainless steel shackles' welded ring pulls and smooth swivel action minimize wear on ropes and cables.

Finished with a high-polish surface for enhanced corrosion protection and aesthetic appeal, these rated stainless steel shackles combine superior functionality with reliability in harsh environments.

Available in sizes 70mm, 87mm, and 128mm, these premium swivel snap rated stainless steel shackles offer excellent working loads and breaking strength.

Custom specifications can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

Stainless Steel Eye Swivel Snap Shackle china supplier

Stainless Steel Eye Swivel Snap Shackle wholesale

Stainless Steel Eye Swivel Snap Shackle China Manufacturer

Stainless Steel Eye Swivel Snap Shackle China Factory

 

Overview of Stainless Steel Eye Swivel Snap Shackle

Brand	CLGR®
Origin	China
Material	Stainless steel 304 or 316 eye swivel snap shackle
Processing	Cast
Finish	Highly polishing
Size	70mm, 87mm, 128mm
Tips	Ideal for marine or industrial use.

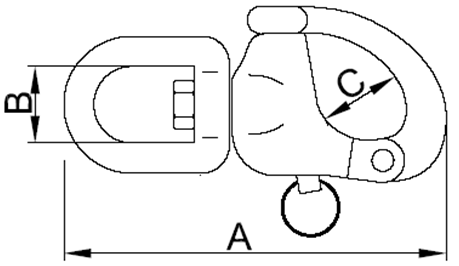

Specifications of Stainless Steel Eye Swivel Snap Shackle

Part No.	A	B	C	WLL
Part No.	mm	mm	mm	kgs
CRSSQRSSE01	70	12	12	450
CRSSQRSSE02	87	16	16	650
CRSSQRSSE03	128	22	22	950

Please note we supply a huge variety of stainless steel parts.

And also available in carbon/alloy steel shackles.

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
