CLGR® Screw Pin Long D Shackle Stainless Steel

Name: CLGR® Screw Pin Long D Shackle Stainless Steel
Brand: CLGR®

CLGR® Screw Pin Long D Shackle Stainless Steel is also known as stainless steel long dee shackle, Long pattern D shackle and Electrophoretic coating 316 stainless steel long D shackle for marine rigging.

Conforming to European standards, these rated stainless steel shackles feature a practical screw pin design for easy installation and removal while maintaining secure connections in demanding applications. Crafted from AISI 304/316 stainless steel through forging and stamping processes, these rated stainless steel shackles offer exceptional corrosion resistance for marine, offshore, and industrial environments. These rated stainless steel shackles undergo highly polished or electrophoretic coating finishes for enhanced durability and aesthetic appeal.

Ideal for sailing, rigging, and lifting systems where frequent connections and disconnections are required, the long D-shape design of these rated stainless steel shackles accommodates straight-line load configurations while providing extended reach and clearance. The screw pin mechanism ensures reliable performance in various applications, from marine hardware to industrial equipment.

Available in sizes from 4mm to 16mm, these CLGR® European-type rated stainless steel shackles combine functionality with corrosion resistance for both temporary and permanent installations.

Custom specifications and markings can be provided to meet specialized project requirements.

To Get A Quote >

screw pin long d shackle stainless steel china wholesale

screw pin long d shackle stainless steel

screw pin long d shackle stainless steel china

screw pin long d shackle stainless steel china supplier

 

Overview of Screw Pin Long D Shackle Stainless Steel

Brand	CLGR®
Origin	China
Technical Notes	Stainless steel D shackle conform to European Type
Material	Stainless steel 304 or 316 D shackle
Pin	Screw Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm

Specifications of Screw Pin Long D Shackle Stainless Steel

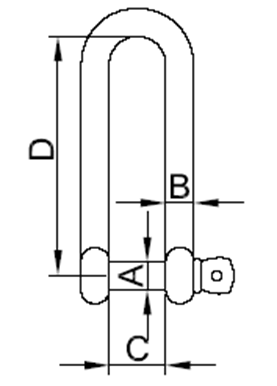

Part No.	B	C	D	A	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSLDSSP04	4	8	32	4	58
CRSSLDSSP05	5	10	40	5	91
CRSSLDSSP06	6	12	48	6	132
CRSSLDSSP08	8	16	64	8	237
CRSSLDSSP10	10	20	80	10	373
CRSSLDSSP12	12	24	96	12	549
CRSSLDSSP16	16	32	128	16	977
