CLGR® Twist Shackle Screw Pin Stainless Steel also known as Stainless Steel Twist Shackle, 90 degree twist shackle and Marine twist shackle.
Engineered for specialized rigging applications, the twist-release rated stainless steel shackles are forged with a precise 90-degree rotation that enables perpendicular attachments without requiring torque—ideal for side-mount connections where traditional shackles cannot reach.
Crafted from Type 316 stainless steel with molybdenum enhancement, these rated stainless steel shackles deliver superior resistance to pitting and crevice corrosion in aggressive environments like seawater and highly chlorinated settings. The screw pin design allows complete removal from the shackle body, facilitating rapid and repetitive connections and disconnections. Featuring a key hole for easy tightening and loosening, these rated stainless steel shackles are optimized for temporary applications, dynamic load scenarios, and systems requiring frequent adjustments.
These rated stainless steel shackles are perfect for marine, offshore, and industrial uses where corrosion resistance, flexibility, and ease of use are critical.
These CLGR® rated stainless steel shackles are available in multiple sizes with custom options upon request.
| Brand | CLGR® |
| Origin | China |
| Material | Stainless steel 304 or 316 twist shackle |
| Pin | Screw Pin |
| Processing | Forged / Stamping |
| Finish | Highly Polishing / Electrophoretic Coating |
| Size | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |

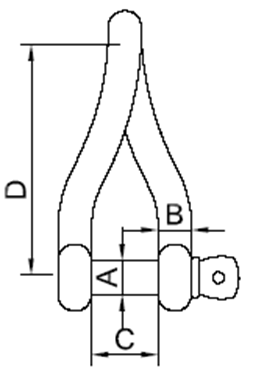

Part No. | B | C | D | A | Min.BL |
(mm) | (mm) | (mm) | (mm) | (KN) | |
CRSSTSSP04 | 4 | 8 | 24 | 4 | 58 |
CRSSTSSP05 | 5 | 10 | 30 | 5 | 91 |
CRSSTSSP06 | 6 | 12 | 36 | 6 | 132 |
CRSSTSSP08 | 8 | 16 | 48 | 8 | 237 |
CRSSTSSP10 | 10 | 20 | 60 | 10 | 373 |
CRSSTSSP12 | 12 | 24 | 72 | 12 | 549 |
