CLGR® Strip D Shackle with Flat Pin Stainless Steel is also known as Stainless Steel Strip Dee Shackle.
Crafted from marine-grade AISI 304/316 stainless steel through forging and stamping, these low-profile D-rated stainless steel shackles feature a flat screw pin design that minimizes protrusion and reduces snagging risks in tight spaces.
The dee-rated stainless steel shackles undergo highly polished or electrophoretic coating finishes, providing exceptional corrosion resistance and a sleek appearance for demanding marine environments.
Note that these rated stainless steel shackles are designed for non-lifting applications and should not be used for overhead lifting or load-bearing purposes. Ideal for sailboat halyards, sail attachments, and marine accessory connections, the compact design of these rated stainless steel shackles ensures secure fastening without interfering with equipment operation.
Available in sizes from 4mm to 8mm, these lightweight yet durable rated stainless steel shackles combine functionality with aesthetics for specialized marine and sailing applications.
Custom markings and packaging options provided by CLGR® are available upon request.
| Brand | CLGR® |
| Origin | China |
| Material | Stainless steel 304 or 316 D shackle |
| Pin | Flat Screw Pin |
| Processing | Forged / Stamping |
| Finish | Highly Polishing / Electrophoretic Coating |
| Size | 4mm, 5mm, 6mm, 8mm |

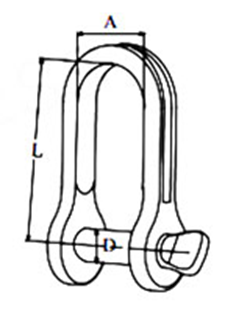

Part No. | D | A | L | Min.BL |
| (mm) | (mm) | (mm) | (KN) | |
CRSSSDPFP04 | 4 | 90 | 20 | 36 |
CRSSSDPFP05 | 5 | 105 | 21 | 60 |
CRSSSDPFP06 | 6 | 135 | 28 | 90 |
CRSSSDPFP08 | 8 | 200 | 45 | 192 |
