CLGR® Screw Pin Wide D Shackle Stainless Steel also known as Stainless steel wide D shackle and stainless steel wide jaw d shackle, fitted with screw collar pin.
Engineered for superior performance in demanding applications, these Wide D-rated stainless steel shackles feature a practical screw pin design that allows for easy installation and removal while maintaining secure connections. The screw pin mechanism ensures reliable performance in various applications, from marine hardware to industrial equipment.
Crafted from AISI 304/316 stainless steel through forging and stamping processes, these rated stainless steel shackles offer exceptional corrosion resistance for marine, offshore, and industrial environments.
These rated stainless steel shackles undergo highly polished or electrophoretic coating finishes for enhanced durability and aesthetic appeal.
Ideal for sailing, rigging, and lifting systems where frequent connections and disconnections are required, the wide D-shape design of these rated stainless steel shackles provides increased bearing surface and accommodates larger diameter connections while reducing wear on slings and ropes.
Available in sizes from 5mm to 12mm, the rated stainless steel shackles combine functionality with corrosion resistance for both temporary and permanent installations.
Custom specifications and markings can be provided by CLGR® to meet specialized project requirements.
| Brand | CLGR® |
| Origin | China |
| Material | Stainless steel 304 or 316 Wide D shackle |
| Pin | Screw Pin |
| Processing | Forged / Stamping |
| Forged / Stamping | Highly Polishing / Electrophoretic Coating |
| Size | 5mm, 6mm, 8mm, 10mm, 12mm |

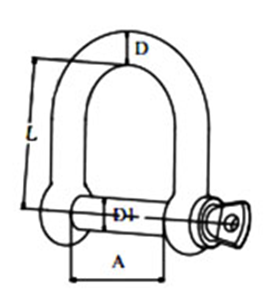

Part No. | D | A | L | D1 | Min.BL |
(mm) | (mm) | (mm) | (mm) | (KN) | |
CRSSWDSSP05 | 5 | 25 | 245 | 5 | 91 |
CRSSWDSSP06 | 6 | 24 | 360 | 6 | 132 |
CRSSWDSSP08 | 8 | 28 | 360 | 8 | 237 |
CRSSWDSSP10 | 10 | 40 | 600 | 10 | 373 |
CRSSWDSSP12 | 12 | 50 | 720 | 12 | 549 |
