CLGR® Captive Pin Long D Shackle Stainless Steel

Name: CLGR® Captive Pin Long D Shackle Stainless Steel
Brand: CLGR®

CLGR® Captive Pin Long D Shackle Stainless Steel also known as Stainless steel long D shackle, European type long D shackle, Shackle with non-removable pin and Electrophoretic coating 316 stainless steel long D shackle with captive pin for marine rigging.

This high-quality captive pin long D shackle features an innovative design where the pin remains permanently attached to the body even when fully open, locking securely into precision grooves to prevent accidental loosening under vibration. Engineered from marine-grade AISI 304/316 stainless steel through advanced forging and stamping processes, the CLGR® rated stainless steel shackles deliveroutstanding working and breaking loads with exceptional corrosion resistance for both indoor and outdoor applications.

Ideal for marine, offshore, and industrial rigging systems where reliability is critical, the long D-shape configuration of these rated stainless steel shackles accommodates straight-line load requirements while the captive pin mechanism ensures quick, secure connections.

Available in multiple sizes with customized options upon request, these rated stainless steel shackles maintain superior performance in harsh environments and vibration-intensive applications.

To Get A Quote >

captive pin long d shackle stainless steel

clgr captive pin long d shackle stainless steel

clgr captive pin long d shackle stainless steel china manufacturer

clgr captive pin long d shackle stainless steel china supplier

 

Overview of Captive Pin Long D Shackle Stainless Steel

Brand	CLGR®
Origin	China
Technical Notes	Stainless steel D shackle conform to European Type
Material	Stainless steel 304 or 316 D shackle
Pin	Captive Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	4mm, 5mm, 6mm, 8mm, 10mm, 12mm

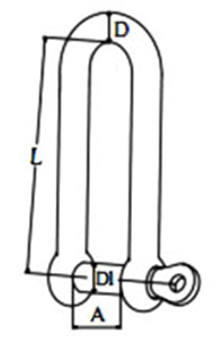

Specifications of Captive Pin Long D Shackle Stainless Steel

Part No.	D	A	L	D1	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSLDSCP04	4	8	32	35	52
CRSSLDSCP05	5	10	40	44	82
CRSSLDSCP06	6	12	48	53	119
CRSSLDSCP08	8	16	64	71	213
CRSSLDSCP10	10	20	80	89	336
CRSSLDSCP12	12	24	96	108	494
