CLGR® Bow Shackle Screw Pin JIS Type Stainless Steel

Name: CLGR® Bow Shackle Screw Pin JIS Type Stainless Steel
Brand: CLGR®

CLGR® Bow Shackle Screw Pin JIS Type Stainless Steel also known as Stainless Steel 316 JIS Type Bow Shackle, JIS Bow Shackle and Electrophoretic coating 316 stainless steel JIS bow shackle with screw pin for marine rigging.

Certified to Japanese Industrial Standards (JIS), these rated stainless steel shackles are forged from Type 304/316 stainless steel with molybdenum enhancement, delivering exceptional resistance to pitting and crevice corrosion in highly chlorinated marine environments.

Designed for superior performance in harsh conditions, these rated stainless steel shackles feature a practical screw pin with key hole for easy tightening and loosening, enabling quick installations and removals for both temporary connections and permanent applications. The screw pin can be completely removed from the shackle body, making these rated stainless steel shackles ideal for applications requiring repetitive or rapid connections and disconnections. Finished with high-polishing or electrophoretic coating, the rated stainless steel shackles provide enhanced durability and corrosion protection while maintaining a professional appearance.

Ideal for marine, offshore, and industrial rigging systems, the bow-shaped design of these rated stainless steel shackles accommodates multi-directional loads with minimal stress concentration.

Available in sizes from 4mm to 25mm, these JIS-certified rated stainless steel shackles offer reliable strength and corrosion resistance for demanding operations.

Custom specifications and markings can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

 

Overview of Bow Shackle Screw Pin JIS Type Stainless Steel

Brand	CLGR®
Origin	China
Material	Stainless steel 304 or 316 Bow shackle
Technical Notes	Stainless steel Bow shackle conform to JIS Type
Pin	Screw Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm

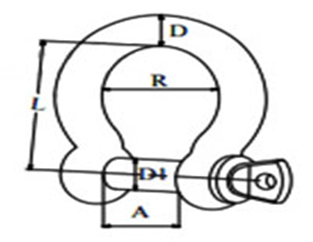

Specifications of Bow Shackle Screw Pin JIS Type Stainless Steel

Part No.	D	A	L	R	D1	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSJISBSSP05	5	10	20	15	5	91
CRSSJISBSSP06	6	12	24	18	6	132
CRSSJISBSSP08	8	16	32	24	8	237
CRSSJISBSSP10	10	20	40	30	10	373
CRSSJISBSSP12	12	24	48	36	12	549
CRSSJISBSSP16	16	32	64	48	16	977
CRSSJISBSSP19	19	38	76	57	19	1,526
CRSSJISBSSP22	22	44	88	66	22	1,847
CRSSJISBSSP25	25	50	100	75	25	2,238
