CLGR® Key Pin Shackle Long D Shackle Stainless Steel

Name: CLGR® Key Pin Shackle Long D Shackle Stainless Steel
Brand: CLGR®

CLGR® Key Pin Shackle Long D Shackle Stainless Steel also known as Stainless steel long shackle key pin, Stainless steel long D shackle and Electrophoretic coating 316 stainless steel long D shackle with key pin for marine rigging.

These long D rated stainless steel shackles feature an innovative key pin design that enables quick opening and closing with just a half-turn rotation, while ensuring the pin remains securely attached to prevent loss. Crafted from AISI 304/316 stainless steel through precision forging and stamping processes, these rated stainless steel shackles offer exceptional corrosion resistance, durability, and reliable load handling for demanding applications.

Ideal for lanyards, sailboat rigging, architectural installations, and industrial equipment requiring frequent operations, the long D-shape design of these rated stainless steel shackles accommodates larger connections and reduces wear on slings and ropes.

Available in sizes 5mm, 6mm, and 8mm, these key pin these rated stainless steel shackles deliver excellent working and breaking loads, combining security, efficiency, and corrosion resistance for both functional and decorative uses.

Custom specifications and markings can be provided by CLGR® to meet specialized project requirements.

To Get A Quote >

Key Pin Shackle Long D Shackle Stainless Steel

Key Pin Shackle Long D Shackle Stainless Steel China Supplier

Key Pin Shackle Long D Shackle Stainless Steel China Factory

Key Pin Shackle Long D Shackle Stainless Steel China Manufacturer

Key Pin Shackle Long D Shackle Stainless Steel China

 

Overview of Key Pin Shackle Long D Shackle Stainless Steel

Brand	CLGR®
Origin	China
Material	Stainless steel 304 or 316 long d shackle
Pin	Key Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	5mm, 6mm, 8mm

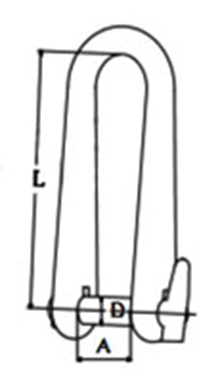

Specifications of Key Pin Shackle Long D Shackle Stainless Steel

Part No.	D	A	L	Min.BL
Part No.	(mm)	(mm)	(mm)	(KN)
CRSSLDSKP05	5	125	40	64
CRSSLDSKP06	6	150	48	101
CRSSLDSKP08	8	200	64	157
