CLGR® Captive Pin Bow Shackle Stainless Steel

Name: CLGR® Captive Pin Bow Shackle Stainless Steel
Brand: CLGR®

CLGR® Captive Pin Bow Shackle Stainless Steel also known as 316 Grade Stainless Steel Bow Shackle with Captive Pin, Bow shackle with captive pin, Shackle with non-removable pin, Fixed pin bow shackle and Electrophoretic coating 316 stainless steel bow shackle with captive pin for marine rigging.

Certified to European standards, these rated stainless steel shackles feature an innovative captive pin design that prevents accidental disengagement and loss during operation.

Crafted from AISI 304/316 stainless steel through forging and stamping processes, the rated stainless steel shackles offer exceptional corrosion resistance for marine, offshore, and industrial applications. These rated stainless steel shackles undergo highly polished or electrophoretic coating finishes for enhanced durability in harsh environments.

These rated stainless steel shackles are ideal for sailing, rigging, and lifting systems where safety is paramount. Their bow-shaped design accommodates multi-directional loads while the permanently attached pin enables secure one-handed operation.

Available in sizes from 4mm to 12mm, the European-type rated stainless steel shackles are designed for applications requiring reliable connections and corrosion resistance.

Custom specifications and markings can be provided by CLGR® to meet specialized requirements.

To Get A Quote >

Overview of Captive Pin Bow Shackle Stainless Steel

Brand	CLGR®
Origin	China
Technical Notes	Stainless steel Bow shackle conform to European Type
Material	Stainless steel 304 or 316 bow shackle
Pin Type	Captive Pin
Processing	Forged / Stamping
Finish	Highly Polishing / Electrophoretic Coating
Size	4mm, 5mm, 6mm, 8mm, 10mm, 12mm

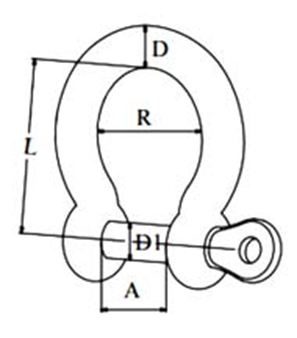

Specifications of Captive Pin Bow Shackle Stainless Steel

Part No.	D	A	L	R	D1	Min.BL
Part No.	(mm)	(mm)	(mm)	(mm)	(mm)	(KN)
CRSSBSCP04	4	8	16	14	35	52
CRSSBSCP05	5	10	20	17	44	82
CRSSBSCP06	6	12	24	21	53	119
CRSSBSCP08	8	16	32	28	71	213
CRSSBSCP10	10	20	40	35	89	336
CRSSBSCP12	12	24	48	42	108	494
