CLGR® AISI 304/316 Stainless Steel D Shackle Captive Pin for marine also known as Captive Pin D Shackle Stainless Steel, Stainless steel fixed pin shackle, AISI 316 stainless steel captive pin shackle for marine, Electrophoretic coating 316 stainless steel D shackle with captive pin for marine safety.
Crafted from AISI 304/316 stainless steel with molybdenum enhancement, this captive pin D shackle delivers outstanding corrosion resistance, ideal for harsh marine and chemical environments.
The unique captive pin design of these rated stainless steel shackles is permanently attached to the shackle body, preventing loss during operation and enabling one-hand use even when fully opened—eliminating the risk of pin drops in water.
Open-forged under strict quality control, the D-shape structure directs load strength along straight lines, providing secure connections for in-line loads in marine hardware and industrial applications. Finished with highly polished or electrophoretic coating, these rated stainless steel shackles ensure durability and reliability for both temporary and permanent installations.
Available in sizes from 5mm to 12mm, these CLGR® rated stainless steel shackles are offered as a wholesale solution for safety-critical settings where corrosion resistance and secure connections are paramount.
| Brand | CLGR® |
| Origin | China |
| Unique Design | Captive Pin |
| Material | Stainless steel AISI 304/316 D shackle |
| Processing | Forged / Stamping |
| Finish | Highly Polishing / Electrophoretic coating |
| Size | 5mm, 6mm, 8mm, 10mm, 12mm |

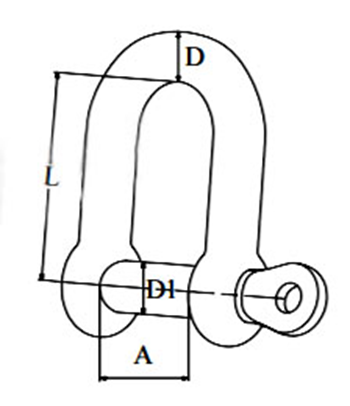

Part No. | D | A | L | D1 | Min.BL | Pin Type |
(mm) | (mm) | (mm) | (mm) | (KN) | ||
CRSSDSCP04 | 4 | 8 | 16 | 3.5 | 5.2 | Captive Pin |
CRSSDSCP05 | 5 | 10 | 20 | 44 | 82 | Captive Pin |
CRSSDSCP06 | 6 | 12 | 24 | 53 | 119 | Captive Pin |
CRSSDSCP08 | 8 | 16 | 32 | 71 | 213 | Captive Pin |
CRSSDSCP10 | 10 | 20 | 40 | 89 | 336 | Captive Pin |
CRSSDSCP12 | 12 | 24 | 48 | 108 | 494 | Captive Pin |
