CLGR® Swivel Eye Hoist Hook Grade 43

Name: CLGR® Swivel Eye Hoist Hook Grade 43
Brand: CLGR®

CLGR® Strip D Shackle with Flat Pin Stainless Steel also known as Swivel Hoist Hook, Swivel Lift Hook and 3 Ton Grade 43 Swivel Eye Hoist Hook with Latch.

Engineered for demanding lifting operations, our 3-Ton Grade 43 Swivel Eye Hoist Hook features a robust 360-degree rotating eye mechanism that prevents line twist during overhead lifting applications, while the integrated spring-loaded safety latch ensures secure load retention and operator safety.

Constructed from carbon steel with a durable red powder-coated finish, this hook meets international lifting standards and is ideal for construction, manufacturing, and warehouse environments where reliable load handling is critical.

The clearly marked 3-ton WLL capacity and Grade 43 certification provide verified performance specifications for professional rigging applications, making it an essential component for any industrial lifting system.

To Get A Quote >

grade 43 swivel eye hoist hook with latch

grade 43 swivel eye hoist hook with latch china supplier

 

Overview of Swivel Eye Hoist Hook Grade 43

Brand	CLGR®
Origin	China
Material	Super Carbon Steel
Finish	Durable powder coating (red)
Safety Factor	4:1
Rotation	360° swivel capability
Working Load Limit	3 Tons (6,000 lbs)
Safety Feature	Spring-loaded safety latch

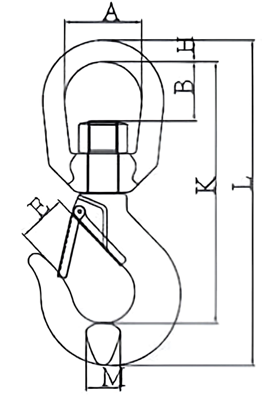

Specifications of Swivel Eye Hoist Hook Grade 43

Part No.	Weight (KG)	Carbon steel		A±1(mm)	E±2(mm)	B±2(mm)	H±0.6(mm)	K±3(mm)	L±3(mm)	M±1(mm)
Part No.	Weight (KG)	WLL(t)	B.L.(t)	A±1(mm)	E±2(mm)	B±2(mm)	H±0.6(mm)	K±3(mm)	L±3(mm)	M±1(mm)
CR-43-SEHH-01	0.3	0.5	2.5	31.5	17	22.5	9	110	137	15
CR-43-SEHH-02	0.34	0.75	3.75	32	17	22.5	9	108.3	137	16
CR-43-SEHH-03	0.57	1	5	37.5	22.5	29.5	12	133.5	163.5	16
CR-43-SEHH-04	1.02	1.5	7.5	42.5	26	33	15.8	150.5	192	17.5
CR-43-SEHH-05	1.24	2	10	42.5	26	33	15.8	163	209	23
CR-43-SEHH-06	2.25	3	15	48	32.5	39	18	191	246	31
CR-43-SEHH-07	4.66	5	25	64	43	53	25	243.5	313	34
CR-43-SEHH-08	7.4	7.5	37.5	70	49.5	53	28.5	277	364	41.5
CR-43-SEHH-09	10.6	10	50	79	54.5	62	32	332	431	55.7
CR-43-SEHH-10	21.4	15	75	105	81	108	40	427	543	70
CR-43-SEHH-11	32	20	100	105	100	96	40	465.3	596	76.2
