CLGR® Eye Hoist Hook with Latch Alloy Grade 70

Name: CLGR® Eye Hoist Hook with Latch Alloy Grade 70
Brand: CLGR®

CLGR® Eye Hoist Hook with Latch Alloy Grade 70 also known as G70 eye hoist hook with latch, Grade 70 alloy eye hook, Heavy duty eye hoist hook, Winch eye hook.

Certified to U.S. Federal Specification, this heavy-duty eye hoist hook is drop forged from superior alloy steel and undergoes quenched and tempered, delivering a 5:1 safety factor for heavy-duty lifting.

Integrated spring-loaded safety latch prevents accidental release during dynamic operations; its large eye enables secure connection to wire rope thimbles with excellent articulation. Multiple finishes for the hook body and Dacromet/self-color for the latch boost corrosion resistance, ideal for rigging, winch systems and industrial lifting.

Available in standard sizes, this Grade 70 alloy eye hoist hook combines robust construction with operational versatility.

Custom finishes, markings, and specifications can be provided to meet unique project requirements.

To Get A Quote >

eye hoist hook with latch alloy grade 70 china supplier

eye hoist hook with latch alloy grade 70 clgr factory

eye hoist hook with latch alloy grade 70

eye hoist hook with latch alloy grade 70 rigging hook

eye hoist hook with latch alloy grade 70 manufacturer

 

Overview of Eye Hoist Hook with Latch Alloy Grade 70

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Super Alloy Steel
Safety Factor	5: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacromet / Self-Color
Tips	Customized according to customers' requirements

Specifications of Eye Hoist Hook with Latch Alloy Grade 70

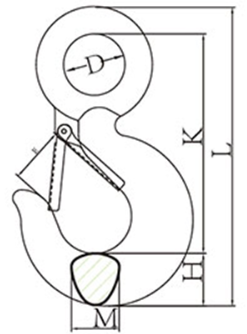

drawing-clgr-of-eye-hoist-hook-with-latch-alloy-grade-70-china-supplier

Part No.	Weight (KG)	Alloy Steel		D±0.6	E±2	H±1.5	K±2.5	M±5	L±3
Part No.	Weight (KG)	WLL(t)	B.L.(t)	D±0.6	E±2	H±1.5	K±2.5	M±5	L±3
CRAECH01	0.21	0.75	3.75	16.5	19	17	72	16	97
CRAECH02	0.28	1	5	19	22	19	82	16	110
CRAECH03	0.4	1.5	7.5	23	23	21	93.5	17.5	125
CRAECH04	0.65	2	10	28	24	26	103	21	140.5
CRAECH05	0.81	3	15	31	27.5	28	119	23	162
CRAECH06	1.75	5	25	39	33	37	146	30	201
CRAECH07	3.77	7	35	51	40	46.5	186.5	38	256
CRAECH08	6.8	11	55	62	51	57	231.5	46	317
CRAECH09	9.96	15	75	73	57	70	260	55	360
CRAECH10	15.33	22	110	89	75	76	318	68.5	434
CRAECH11	27.2	30	150	90	82	91	360	70	495.5
