CLGR® Clevis Grab Hook with Spring Latch Grade 70

Name: CLGR® Clevis Grab Hook with Spring Latch Grade 70
Brand: CLGR®

CLGR® Clevis Grab Hook with Spring Latch Grade 70 also known as Grade 70 grab hook, Heavy duty clevis grab hook, Forged grab hook with safety latch, Zinc plated G70 clevis grab hook with spring latch for transport chain 4:1 safety factor.

Drop-forged from superior alloy steel and heat-treated, this heavy-duty clevis grab hook features a 4:1 safety factor for durable, reliable transport tie-downs.

The hook features a spring-loaded safety latch that prevents accidental chain release during dynamic operations while enabling quick, secure connections. Specifically designed for heavy-duty tie-down, transport chain, and cargo securement applications. Available with zinc plated or powder coating finishes for enhanced corrosion resistance in harsh environments.

Available in sizes from 1/4" to 5/8", this Grade 70 clevis grab hook combines robust construction with operational efficiency.

Secure carton and pallet packaging ensures safe delivery, with custom options available to meet specific requirements.

To Get A Quote >

Clevis Grab Hook with Spring Latch Grade 70

Clevis Grab Hook with Spring Latch Grade 70 China China Supplier

Clevis Grab Hook with Spring Latch Grade 70 China Factory

Clevis Grab Hook with Spring Latch Grade 70 China

Clevis Grab Hook with Spring Latch Grade 70 China Manufacturer

 

Overview of Clevis Grab Hook with Spring Latch Grade 70

Brand	CLGR®
Origin	China
Material	Forged Alloy Steel
Processing	Forged Alloy Steel, Quenched & Tempered
Finish	Zinc Plated or Powder Coating.
Safety Factor	4:1
Size	1/4”, 5/16”, 3/8”, 1/2”, 5/8”.
Packing	In Carton then on Pallets.
Tips	Not for overhead lifting or vertical load operations.

Specifications of Clevis Grab Hook with Spring Latch Grade 70

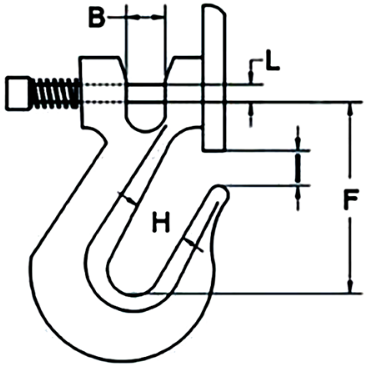

drawing-clgr-of-clevis-grab-hook-with-spring-latch-grade-70-china-supplier

Part NO.	Chain Size	Dimensions					W.L.L	N.W
Alloy Steel	inch	B	E	P	R	T		kgs
CRACGHSL01	1/4”	9	10	9.6	50	10	3500	0.28
CRACGHSL02	5/16”	10	11	11	57.4	12.5	4700	0.43
CRACGHSL03	3/8”	12	12.7	12	66.8	10.5	7100	0.58
CRACGHSL04	1/2”	19.1	16.8	16	81	17.8	12000	1.18
CRACGHSL05	5/8”	23.1	19.8	19.1	103.9	20.4	15800	2.12
