CLGR® Clevis Claw Hook Grade 70 Australia Standard

CLGR® Clevis Claw Hook Grade 70, Australia Standard also known as Grade 70 claw hook Australia, AS 4344 claw hook and Gold zinc plated G70 clevis claw hook AS 4344 batch tested for transport.


Certified to AS 4344 Australia Standard, this heavy-duty clevis claw hook is drop forged from superior alloy steel and undergoes quenching and tempering heat treatment, delivering exceptional strength and durability for demanding transport and load restraint applications.


Featuring a gold zinc plated finish for enhanced corrosion protection, it ensures reliable performance in heavy load lashing and transport operations with Grade 70 chain systems while providing full lashing capacity and in-line tension.


The hook is clearly marked with chain size, lashing capacity, grade, batch number, brand, load maximum for traceability and safe operation.


Each unit comes with available batch test certification upon request, ensuring compliance with international quality standards.


Available in 8mm and 10mm sizes, this Australian standard hook is ideal for transport chain applications, trucking, logistics, and heavy-duty cargo restraint scenarios.

To Get A Quote >
clgr clevis claw hook grade 70 australia standard china supplier
clgr clevis claw hook grade 70 australia standard china supplier

Overview of Clevis Claw Hook Grade 70 Australia Standard

Brand  CLGR®
OriginChina
Technical NotesComply with AS4344, Batch Test Certificate available upon request.
Material  Superior Alloy Steel
Processing  Drop Forged, Quenched & Tempered and Gold zinc plated.
Size8mm, 10mm


Specifications of Clevis Claw Hook Grade 70 Australia Standard

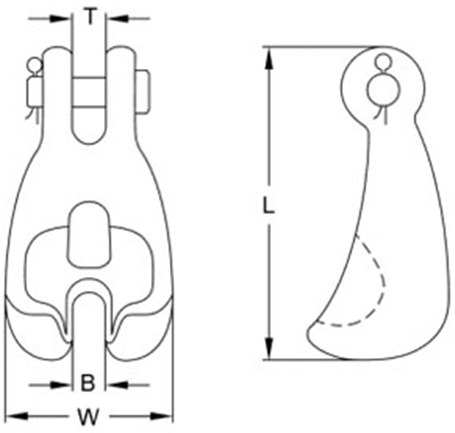

drawing-clgr-of-clevis-claw-hook-grade-70-australia-standard-china-supplier

No.

SIZE

LC

Wt.

B

T

W

L

mm

kg

kg

mm

mm

mm

mm

CRCCHG7001

8

3800

0.15

9.5

12.5

47

88.22

CRCCHG7001

10

6000

0.3

11.5

12.5

55

103.3

China CLGR Supply offers a wide variety of Regular Forged Hook.
