CLGR® Alloy Steel Eye Slip Hook Grade 70

Name: CLGR® Alloy Steel Eye Slip Hook Grade 70
Brand: CLGR®

CLGR® Alloy Steel Eye Slip Hook Grade 70 also known as G70 eye slip hook.

Certified to U.S. Federal Specification and ASME B30.10 standards, this heavy-duty eye slip hook is drop forged from superior Grade 70 alloy steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for the most demanding industrial applications.

Designed for Grade 70 chain, this hook ensures secure connections for critical rigging, towing and load-securing tasks. It offers multiple finishes (powder coating, galvanization, self-color) for superior corrosion protection across environments.

Available in sizes from 1/4" to 3/4", this Grade 70 eye slip hook combines maximum durability with operational efficiency.

Custom finishes, markings, and sizes can be provided to meet specific project requirements.

Note: This product is not rated for overhead lifting applications.

To Get A Quote >

clgr eye slip hook grade 70 high test china wholesale

clgr eye slip hook grade 70 high test china supplier

clgr eye slip hook grade 70 high test china manufacturer

 

Overview of Alloy Steel Eye Slip Hook Grade 70

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Superior Alloy Steel
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”
Tips	Customized according to customers' requirements

Specifications of Alloy Steel Eye Slip Hook Grade 70

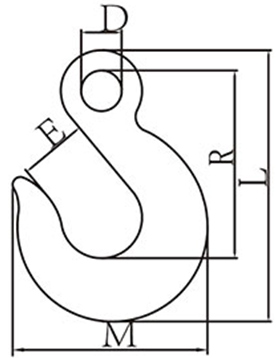

drawing-clgr-of-alloy-steel-eye-slip-hook-grade-70

Part No.	Weight lbs	WLL(lbs)	D±0.3 (mm)	R±1 (mm)	L±1 (mm)	M±1.2 (mm)	E±1 (mm)
		WLL(lbs)
		G70
CR-70-ESH-1/4	0.4	2750	12.7	65	92	68.5	23
CR-70-ESH-5/16	0.64	4300	16	72.5	106	76	26
CR-70-ESH-3/8	1.11	5250	18	86.5	124	89.5	33
CR-70-ESH-7/16	1.56	7000	20.5	98.5	142	108	40
CR-70-ESH-1/2	2.1	9000	23	109.5	156	116.5	43
CR-70-ESH-5/8	3.9	13500	28.8	132.5	195	143	52
CR-70-ESH-3/4	6.93	19250	35	147.5	222	169	55
