CLGR® Clevis Slip Hook with Latch Grade 43 High Test

Name: CLGR® Clevis Slip Hook with Latch Grade 43 High Test
Brand: CLGR®

CLGR® Clevis Slip Hook with Latch Grade 43 High Test also known as High Test Clevis Slip Hook with Latch and High test clevis slip hook.

Certified to U.S. Federal Specification, this heavy-duty clevis slip hook is drop forged from superior carbon steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for exceptional strength and impact resistance in demanding industrial applications.

Featuring an integrated spring-loaded safety latch, it prevents accidental release of loads even under dynamic conditions or over rough terrain, ensuring secure connections for Grade 43 high-test chains.

The hook body offers multiple finish options—powder coated, hot-dipped galvanized, electric galvanized, or self-color—while the safety latch is treated with Dacroment or stainless steel for enhanced corrosion protection.

Designed with a wide throat for easy chain attachment, it is ideal for load securement, industrial transport, and heavy-duty towing applications.

Available in sizes from 1/4" to 3/4", this Grade 43 slip hook combines robust performance with operational safety.

Custom finishes and markings can be provided to meet specific project requirements.

Note: This product is not suitable for overhead lifting.

To Get A Quote >

clgr clevis slip hook with latch grade 43 high test

clgr clevis slip hook with latch grade 43 high test china supplier

clgr clevis slip hook with latch grade 43 high test supplier

clgr clevis slip hook with latch grade 43 high test for sale

 

Overview of Clevis Slip Hook with Latch Grade 43 High Test

Brand	CLGR®
Origin	China
Technical Notes	Clevis slip hook comfrom to U.S. Federal Specification
Material	Superior Carbon Steel
Safety Factor	4: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacroment / Stainless steel
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4” Clevis Slip Hook
Tips	Customized according to customers' requirements

Specifications of Clevis Slip Hook with Latch Grade 43 High Test

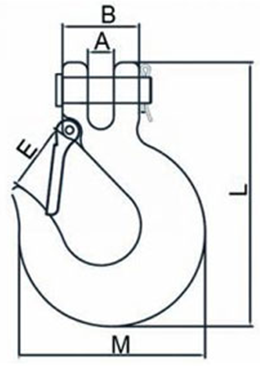

drawing-clgr-of-clevis-slip-hook-with-latch-grade-43-high-test

Part No.	Weight lbs	WLL(lbs)	A±1 (mm)	B±1.5 (mm)	L±3 (mm)	M±2 (mm)	E±2 (mm)
		WLL(lbs)
		G43
CR-43-CSH+L-1/4	0.53	2600	11.3	27	103.5	70.5	21.5
CR-43-CSH+L-5/16	0.77	3900	13	32	117	79	25.5
CR-43-CSH+L-3/8	1.26	5400	15.5	40	134	93.5	33.5
CR-43-CSH+L-7/16	2.25	7200	15	44	151.5	111	36
CR-43-CSH+L-1/2	3.06	9200	19	48	168	124.5	37.5
CR-43-CSH+L-5/8	5.18	13000	18.5	58.7	200.5	143	46.5
CR-43-CSH+L-3/4	12.4	20200	30	81	256	188	58
