CLGR® Grade 70 Eye Slip Hook with Latch

Name: CLGR® Grade 70 Eye Slip Hook with Latch
Brand: CLGR®

CLGR® Grade 70 Eye Slip Hook with Latch also known as G70 Alloy Steel Eye Slip Hook.

Certified to U.S. Federal Specification, this heavy-duty eye slip hook is drop forged from superior alloy steel and undergoes quenching and tempering heat treatment, delivering a 4:1 safety factor for demanding industrial applications.

Featuring a spring-loaded safety latch, it prevents accidental release during dynamic operations, while its wide throat design allows easy connection to shackles, eyes, and chain-tied loads. The hook body offers multiple finish options—powder coated, hot-dipped galvanized, electric galvanized, or self-color—while the safety latch is treated with Dacroment or stainless steel for enhanced corrosion protection.

Designed for towing, pulling, and load-securing applications with Grade 70 chain, it ensures reliable performance in construction, marine, and heavy transport scenarios.

Available in sizes from 1/4" to 1/2" , this Grade 70 eye slip hook combines robust construction with operational security.

To Get A Quote >

clgr grade 70 eye slip hook with latch china supplier

g70 alloy steel eye slip hook china manufacturer

g70 alloy steel eye slip hook clgr rigging

 

Overview of Grade 70 Eye Slip Hook with Latch

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Super Alloy Steel
Safety Factor	4: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacroment / Stainless steel
Size	1/4”, 5/16”, 3/8”, 7/16”, 1/2”
Tips	Customized according to customers' requirements

Specifications of Grade 70 Eye Slip Hook with Latch

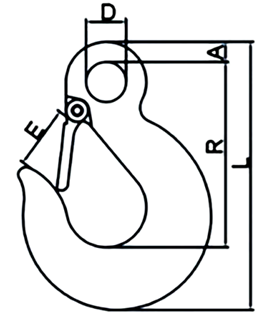

drawing-clgr-of-grade-70-eye-slip-hook-with-latch-china-supplier

Part No.	Size	WEIGHT	WLL	A±0.3 (mm)	D±0.5 (mm)	R±1 (mm)	E±1 (mm)	L±1 (mm)
		WEIGHT	WLL
		lbs	lbs
CR-70-ESH+L-1/4	1/4″	0.22	2750	8.5	13	65.5	18.5	93
CR-70-ESH+L-5/16	5/16″	0.3	4300	9	16	74	24.5	107
CR-70-ESH+L-3/8	3/8″	0.67	5250	10.25	18	86.5	32.5	123.8
CR-70-ESH+L-7/16	7/16″	0.71	7000	12.7	20.6	98.8	32	142.5
CR-70-ESH+L-1/2	1/2″	0.95	9000	14.5	23	109.5	41.5	156

Warning!!!

Do not exceed the working load limit.

Not to be used for overhead lifting.

The latch is only designed to retain slings and rigging attachments. The latch must not support the load.

Also available in Eye Slip Hook with Latch Grade 43.
