CLGR® Eye Hoist Hook with Latch Carbon Steel Grade 43

Name: CLGR® Eye Hoist Hook with Latch Carbon Steel Grade 43
Brand: CLGR®

CLGR® Eye Hoist Hook with Latch Carbon Steel Grade 43 also known as G43 eye hoist hook with latch, eye cargo hook and Hot dipped galvanized G43 eye hoist hook with spring latch for winch.

Certified to U.S. Federal Specification, this drop-forged carbon steel eye hoist hook is quenched and tempered, delivering a 5:1 safety factor for heavy-duty lifting.

Boasting an integrated spring-loaded safety latch to prevent accidental release during dynamic operations, this hook’s large eye design allows easy connection to wire rope thimbles for smooth articulation. It offers multiple body finishes, with the latch treated via Dacroment or self-color for superior corrosion resistance.

Designed for versatility, it is ideal as a lifting hook, fixed eye safety hook, winch hoist hook, towing hook, or general-purpose cargo hook in industrial, marine, and construction scenarios.

Available in sizes from 1/4" to 1/2" , this Grade 43 eye hoist hook combines robust construction with operational security.

Custom finishes, markings, and sizes can be provided to meet specific project requirements.

To Get A Quote >

eye hoist hook with latch carbon steel grade 43 china supplier

eye hoist hook with latch carbon steel grade 43 china manufacturer

eye hoist hook with latch carbon steel grade 43 china for sale

eye hoist hook with latch carbon steel grade 43 china clgr rigging

eye hoist hook with latch carbon steel grade 43 rigging hook

 

Overview of Eye Hoist Hook with Latch Carbon Steel Grade 43

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Super Carbon Steel
Safety Factor	5: 1
Processing	Body: Drop Forged / Quenched and Tempered Latch: Stamping
Finish	Body: Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color Latch: Dacroment / Self-Color
Tips	Customized according to customers' requirements

Specifications of Eye Hoist Hook with Latch Carbon Steel Grade 43

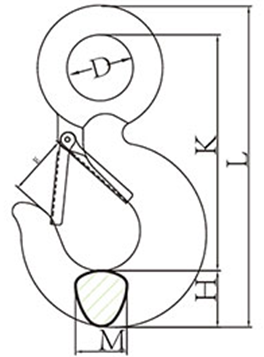

drawing-clgr-of-eye-hoist-hook-with-latch-carbon-steel-grade-43-china-supplier

Part No.	Weight (KG)	Carbon steel		D±0.6 (mm)	E±2 (mm)	H±1.5 (mm)	K±2.5 (mm)	M±5 (mm)	L±3 (mm)
		Carbon steel
		WLL(t)	B.L.(t)
CRCECH01	0.21	0.5	2.5	16.5	19	17	72	16	97
CRCECH02	0.28	0.75	3.75	19	22	19	82	16	110
CRCECH03	0.4	1	5	23	23	21	93.5	17.5	125
CRCECH04	0.65	1.5	7.5	28	24	26	103	21	140.5
CRCECH05	0.81	2	10	31	27.5	28	119	23	162
CRCECH06	1.75	3	15	39	33	37	146	30	201
CRCECH07	3.77	5	25	51	40	46.5	186.5	38	256
CRCECH08	6.8	7.5	37.5	62	51	57	231.5	46	317
CRCECH09	9.96	10	50	73	57	70	260	55	360
CRCECH10	15.33	15	75	89	75	76	318	68.5	434
CRCECH11	27.2	20	100	90	82	91	360	70	495.5

Warning!!!

Do not exceed the working load limit.

Not to be used for overhead lifting.

Also available in Eye Hoist Hook Grade 70.

CLGR® Are Expecting Your Inquiry!

We design, manufacture and distribute products and provide services for lifting and material handling applications, the construction metal industry, the trawl industry and the yacht accessories industry.
