CLGR® High Test Eye Slip Hook Grade 43

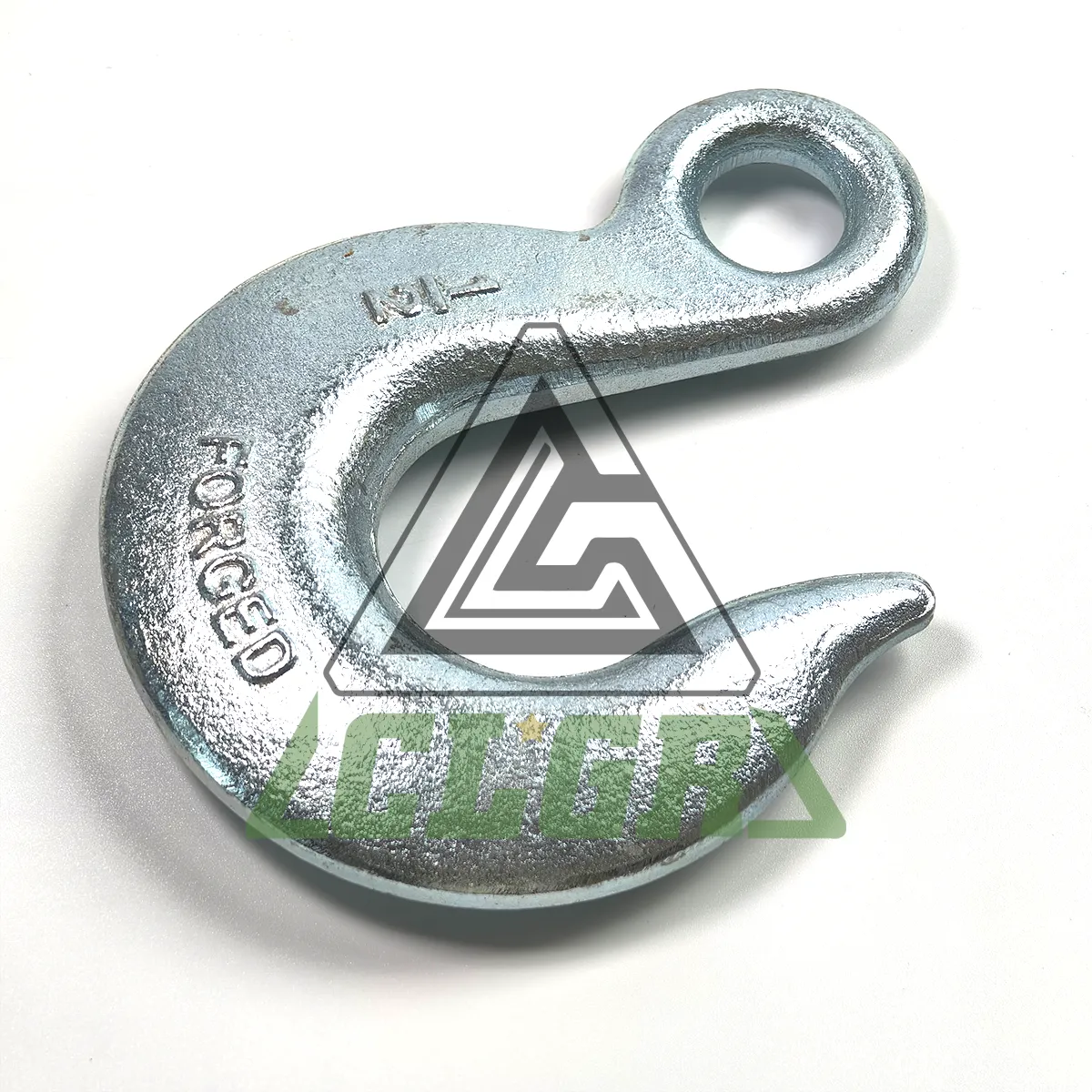

Name: CLGR® High Test Eye Slip Hook Grade 43
Brand: CLGR®

CLGR® High Test Eye Slip Hook Grade 43 also known as G43 eye slip hook, Grade 43 slip hook, High Test eye hook.

Our G43 High Test Eye Slip Hook is a drop-forged superior carbon steel hook that delivers exceptional strength and reliability for demanding lifting applications.

Manufactured to U.S. Federal Specifications with a 4:1 safety factor, this hook undergoes quenching and tempering processes for enhanced durability.

Available in sizes from 1/4" to 3/4", it comes in multiple finish options including powder coated, hot-dip galvanized, and electro-galvanized to meet various corrosion resistance requirements. This engineered eye slip hook is ideal for construction, manufacturing, and marine applications where safety and performance are critical.

We offer both standard sizes and customized solutions to meet specific operational needs.

Note: This product is not rated for overhead lifting applications.

To Get A Quote >

clgr high test eye slip hook grade 43 china supplier

clgr high test eye slip hook grade 43 china manufacturer

clgr high test eye slip hook grade 43 china for sale

 

Overview of High Test Eye Slip Hook Grade 43

Brand	CLGR®
Origin	China
Technical Notes	U.S. Federal Specification
Material	Superior Carbon Steel Eye Slip Hook
Safety Factor	4: 1
Processing	Drop Forged / Quenched and Tempered
Finish	Powder Coated / Hot Dipped Galvanized / Electric Galvanized / Self-Color
Size	1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4" eye slip hook
Tips	Customized according to customers' requirements

Specifications of High Test Eye Slip Hook Grade 43

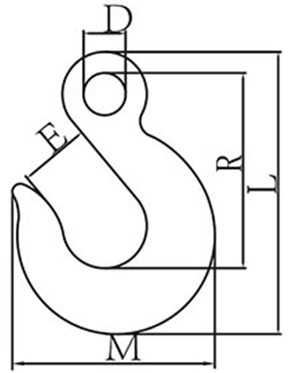

drawing-clgr-of-high-test-eye-slip-hook-grade-43-china-supplier

Part No.	Weight lbs	WLL (lbs)	D±0.3 (mm)	R±1 (mm)	L±1 (mm)	M±1.2 (mm)	E±1 (mm)
		WLL (lbs)
		G43
CR-43-ESH-1/4	0.4	2600	12.7	65	92	68.5	23
CR-43-ESH-5/16	0.64	3900	16	72.5	106	76	26
CR-43-ESH-3/8	1.11	5400	18	86.5	124	89.5	33
CR-43-ESH-7/16	1.56	7200	20.5	98.5	142	108	40
CR-43-ESH-1/2	2.1	9200	23	107	158	116.5	41
CR-43-ESH-5/8	3.9	13000	28.8	132.5	195	143	52
CR-43-ESH-3/4	6.93	20200	35	147.5	222	169	55
