CLGR® Round Pin Anchor Shackle U.S. Type

Name: CLGR® Round Pin Anchor Shackle U.S. Type
Brand: CLGR®

CLGR® Round Pin Anchor Shackle U.S. Type also known as Anchor bow shackle round pin, ASME B30.26 shackle, US federal spec shackle and Shackle with cotter pin.

This ASME B30.26-certified round pin anchor shackle is engineered for permanent or semi-permanent connections in rigging, mooring, and securing applications—note that it is not designed for lifting operations.

Featuring a superior carbon steel body and alloy steel round pin with a 6:1 safety factor, it is drop-forged, quenched, and tempered for maximum durability in demanding offshore, construction, and industrial environments.

The shackle provides hot-dip galvanized, powder-coated, or zinc-plated finishes for exceptional corrosion resistance and is ideal for marine mooring systems, equipment anchoring, and structural tie-downs.

Available in sizes from 3/16" to 4", with custom specifications and markings offered to meet specialized project requirements.

To Get A Quote >

clgr round pin anchor shackle u.s. type china supplier

clgr round pin anchor shackle u.s. type bow shackle

Overview of Round Pin Anchor Shackle U.S. Type

Brand	CLGR®
Origin	China
Standard	Meets the performance requirements of Federal Specification RR-C-271F, Type IVA, Grade A, Class 1
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel / Super Carbon Steel
Safety Factor	6 : 1/4 : 1
Processing	Body: Drop Forged / Quenched and Tempered Screw Pin:Cold/Hot Forged / Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin : Powder Coated / Zinc Plated
Size	3/16”,1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1/1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”, 2-1/2”, 3”, 3-1/2”, 4”
Tips	Special specification and marks can be made according to customers' requirements

Specifications of Round Pin Anchor Shackle U.S. Type

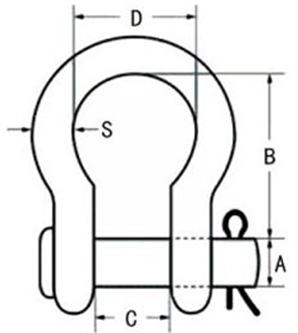

Part No.	Size	Pin Diameter	Dimensions in inches	WLL	Weight
Part No.	A	B(in)	C(in)	tons	lbs
CR-213-RPAS-1/4	1/4″	0.31	1.13	0.78	0.5
CR-213-RPAS-5/16	5/16″	0.38	1.22	0.84	0.75
CR-213-RPAS-3/8	3/8″	0.44	1.44	1.03	1
CR-213-RPAS-7/16	7/16″	0.5	1.69	1.16	1.5
CR-213-RPAS-1/2	1/2″	0.63	1.88	1.31	2
CR-213-RPAS-5/8	5/8″	0.75	2.38	1.69	3.75
CR-213-RPAS-3/4	3/4″	0.88	2.81	2	4.75
CR-213-RPAS-7/8	7/8″	1	3.31	2.28	6.5
CR-213-RPAS-1	1″	1.13	3.75	2.69	8.5
CR-213-RPAS-1-1/8	1 1/8″	1.25	4.24	2.91	9.5
CR-213-RPAS-1-1/4	1 1/4″	1.38	4.69	3.25	12
CR-213-RPAS-1-3/8	1 3/8″	1.5	5.25	3.63	13.5
CR-213-RPAS-1-1/2	1 1/2″	1.63	5.75	3.88	17
CR-213-RPAS-1-3/4	1 3/4″	2	7	5	25
CR-213-RPAS-2	2″	2.25	7.75	5.75	35
