CLGR® Commercial Dee Shackle with Screw Pin European Type

Name: CLGR® Commercial Dee Shackle with Screw Pin European Type
Brand: CLGR®

CLGR® Commercial Dee Shackle with Screw Pin European Type also known as European type dee shackle, D shackle with screw pin European type, Economical mild steel D shackle general purpose and Galvanized commercial shackle for construction.

This economical Dee shackle is forged from superior mild steel and features a stamped screw pin, making it ideal for general-purpose industrial, construction, and material handling applications.

Available in galvanized, electrophoretic coating, or self-color finishes to provide versatile corrosion protection for various environments.

With sizes ranging from M5 to M50, it offers reliable performance for non-critical lifting, tying, and securing tasks.

Custom specifications and markings are available to meet specific project requirements.

To Get A Quote >

clgr commercial dee shackle with screw pin european type

clgr commercial dee shackle with screw pin european type china manufacturer sale

commercial dee shackle with screw pin european type chain shackle

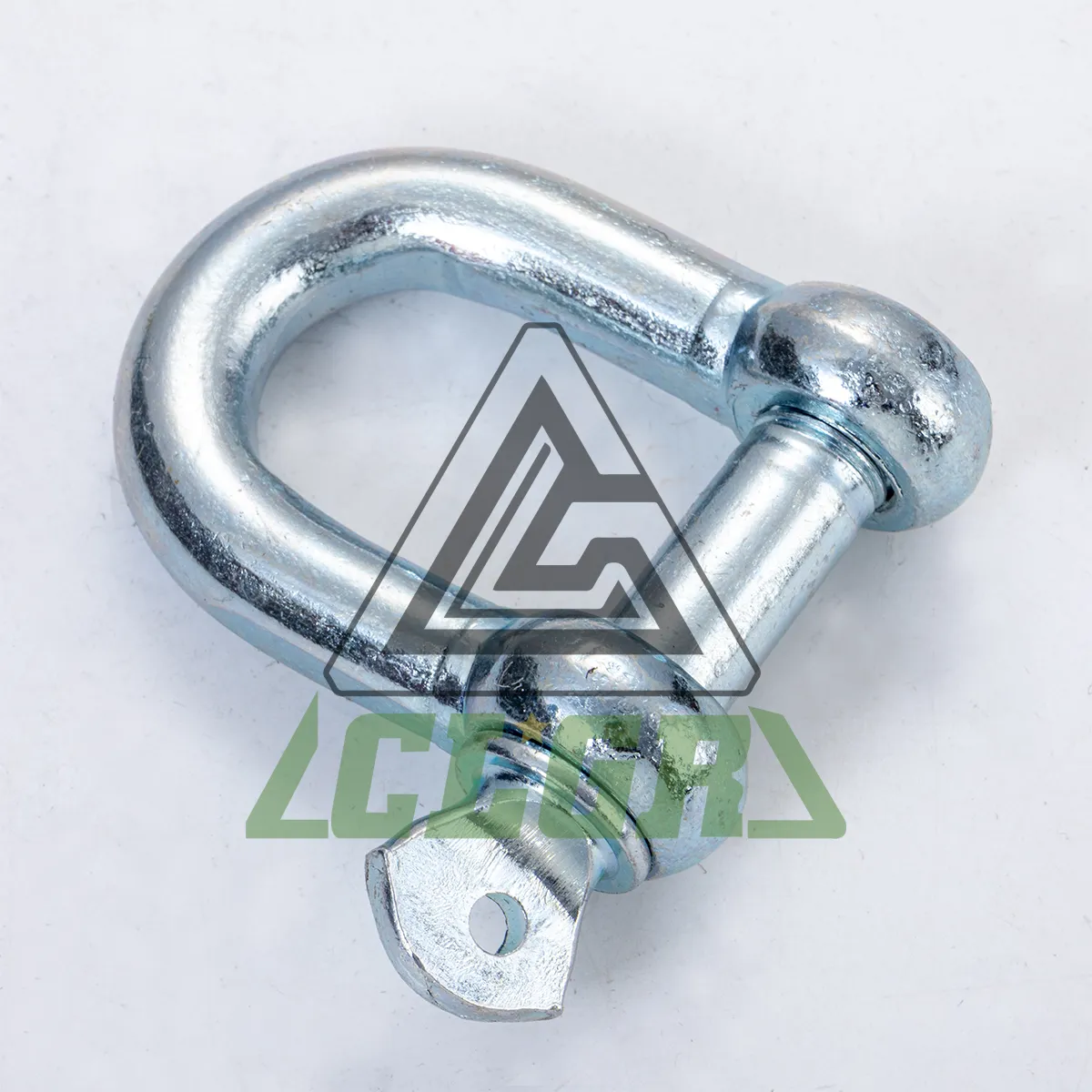

clgr commercial dee shackle with screw pin european type china supplier

 

Overview of Commercial Dee Shackle with Screw Pin European Type

Brand	CLGR®
Origin	China
Technical Notes	European Type
Material	Superior mild Steel
Processing	Body: Forged Screw Pin: Stamping
Finish	Galvanized / Electrophoretic Coating / Self-color
Size	M5, M6, M8, M10, M11, M12, M16, M20, M22, M25, M28, M32, M38, M45, M50
Tips	Special specification and marks according to customers’ requirements.

Specifications of Commercial Dee Shackle with Screw Pin European Type

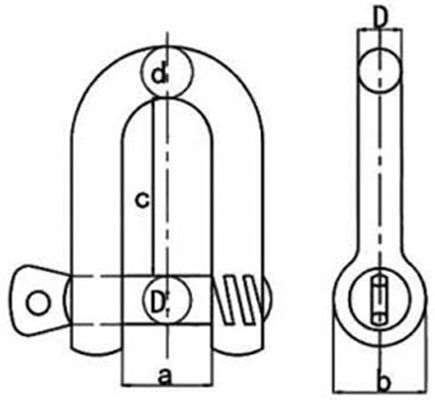

drawing-of-clgr-commercial-dee-shackle-with-screw-pin-european-type

Part No.	Size	D	d	a	c	b	S.W.L.	WT/100 pcs
Part No.	Size	mm					Kg	Kg
CR-DS+S-EU-05	M5	5	5	10	19	11	80	1.9
CR-DS+S-EU-06	M6	6	6	13	25	14	100	3.4
CR-DS+S-EU-08	M8	8	8	16	32	18	200	7
CR-DS+S-EU-10	M10	10	10	19	38	20	320	13
CR-DS+S-EU-11	M11	11	11	22	44	23	400	16.5
CR-DS+S-EU-12	M12	12	12	25	51	26	520	24
CR-DS+S-EU-16	M16	16	16	32	64	33	800	50
CR-DS+S-EU-20	M20	20	20	38	76	40	1100	80
CR-DS+S-EU-22	M22	22	22	44	89	50	1500	130
CR-DS+S-EU-25	M25	25	25	51	100	57	2100	200
CR-DS+S-EU-28	M28	28	28	57	115	68	3000	300
CR-DS+S-EU-32	M32	32	32	64	127	73	3500	430
CR-DS+S-EU-38	M38	38	38	76	152	85	5000	675
CR-DS+S-EU-45	M45	45	45	90	180	96	7000	1,250
CR-DS+S-EU-50	M50	50	50	102	200	108	8000	1,750
