CLGR® DIN 444 Eye Swing Bolts

Name: CLGR® DIN 444 Eye Swing Bolts
Brand: CLGR®

CLGR® DIN 444 Eye Swing Bolts also known as lifting eye bolt, DIN 444 Carbon Steel Eye Bolt and DIN 444 eye bolt supplier.

Our DIN 444 Eye Swing Bolts are forged from superior carbon steel with zinc plating, conforming to DIN 444 standards and available in sizes from M6 to M36 with right-hand metric coarse threads.

These swing eye bolts provide reliable lifting points for marine applications such as ship deck rigging and port equipment handling.

They are also ideal for industrial and construction sectors, including machinery installation, warehouse lifting systems, and structural component positioning.

The swing eye design allows for 360-degree rotation to prevent cable twisting during load handling.

Custom sizes and stainless steel options are available for specific project requirements.

To Get A Quote >

clgr din 444 eye swing bolts china supplier

clgr din 444 eye swing bolts china manufacturer

 

Overview of DIN 444 Eye Swing Bolts - The China Supplier

Brand	CLGR®
Origin	China
Technical Notes	Eye Swing Bolt Conform to DIN 444
Material	Superior Carbon Steel
Processing	Forged & Machining
Finish	Zinc Plated
Size	M690 , M8125 , M8140 , M10125 , M10150 , M12125 , M12200 , M12260 , M16125 M16200 , M16260 , M20125 , M20200 , M20260 , M24125 , M24200 , M24260 M30200 , M30300 , M36200 , M36300 , M36200 , M36*300
Tips	Right handed metric coarse thread.

Specifications of DIN 444 Eye Swing Bolts - The China Supplier

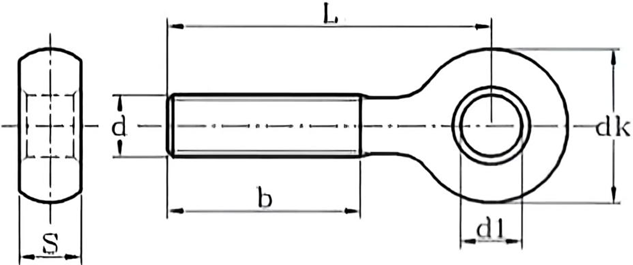

drawing-clgr-of-din-444-eye-swing-bolts

Part No.	SIZE	d	P	b			d1		dk				s
			Pitch	L≤125	125＜L≤200	L＞200	Max.	Min.	A type Max.	A type Min.	B&C type Max.	B&C type Min.,	A type Max.	A type Min.,	B&C type Max.	B&C type Min.,


CR-DIN444-M5	M5		0.8	16	/	/	5.03	5	12	10.9	12	11.57	8	7.52	6	5.88
CR-DIN444-M6	M6		1	18	/	/	6.03	6	14	12.9	14	13.57	9	8.52	7	6.85
CR-DIN444-M8	M8		1.25	22	28	/	8.036	8	18	16.9	18	17.57	11	10.3	9	8.85
CR-DIN444-M10	M10		1.5	26	32	/	10.036	10	20	18.7	20	19.48	14	13.3	12	11.82
CR-DIN444-M12	M12		1.75	30	36	49	12.043	12	25	23.7	25	24.48	17	16.3	14	13.82
CR-DIN444-M16	M16		2	38	44	57	16.043	16	32	30.4	32	31.38	19	18.16	17	16.82
CR-DIN444-M20	M20		2.5	46	52	65	18.043	18	40	38.4	40	39.38	24	23.16	22	21.79
CR-DIN444-M24	M24		3	54	60	73	22.052	22	45	43.4	45	44.38	28	27.16	25	24.79
CR-DIN444-M27-1	M27		3	60	66	79	24.052	24	50	48.4	50	49.38	30	29.16	27	26.79
CR-DIN444-M27-2	M27		3	60	66	79	25.052	25	50	48.4	50	49.38	30	29.16	27	26.79
CR-DIN444-M30-1	M30		3.5	66	72	85	27.052	27	55	53.1	55	54.26	34	33	30	29.79
CR-DIN444-M30-2	M30		3.5	66	72	85	28.052	28	55	53.1	55	54.26	34	33	30	29.79
CR-DIN444-M33	(M33)		3.5	/	78	91	30.052	30	60	58.1	60	59.26	38	37	34	33.75
CR-DIN444-M36-1	M36		4	/	84	97	32.062	32	65	63.1	65	64.26	41	40	38	37.75
CR-DIN444-M36-2	M36		4	/	84	97	33.062	33	65	63.1	65	64.26	41	40	38	37.75
CR-DIN444-M39-1	(M39)		4	/	90	103	35.062	35	70	68.1	70	69.26	46	45	41	40.75
CR-DIN444-M39-2	(M39)		4	/	90	103	36.062	36	70	68.1	70	69.26	46	45	41	40.75
