CLGR® Forged Shoulder Nut Eye Bolts LG-277

Name: CLGR® Forged Shoulder Nut Eye Bolts LG-277
Brand: CLGR®

CLGR® Forged Shoulder Nut Eye Bolts LG-277 also known as Shoulder Nut Eye Bolt, Eye Bolt with Shoulder Nut, Forged Shoulder Eye Bolt and Shoulder Pattern Hot Dipped Galvanized Eye Bolt with Hex Nut.

Our Forged Shoulder Nut Eye Bolts are manufactured to meet or exceed ASME B30.26 standards, featuring a 5:1 safety factor with ultimate load capacity at five times the working load limit.

Available in sizes from 1/4" × 2" to 1-1/2" × 15", these hot dip galvanized bolts come with heavy hex nuts and are designed for angular loading applications.

The shoulder nut design provides enhanced stability and resistance to bending deformation, while the fatigue-rated construction ensures reliable performance at 1.5 times the working load limit through 20,000 cycles.

These bolts are ideal for rigging and lifting applications requiring superior strength and durability.

To Get A Quote >

clgr forged shoulder nut eye bolts lg 277

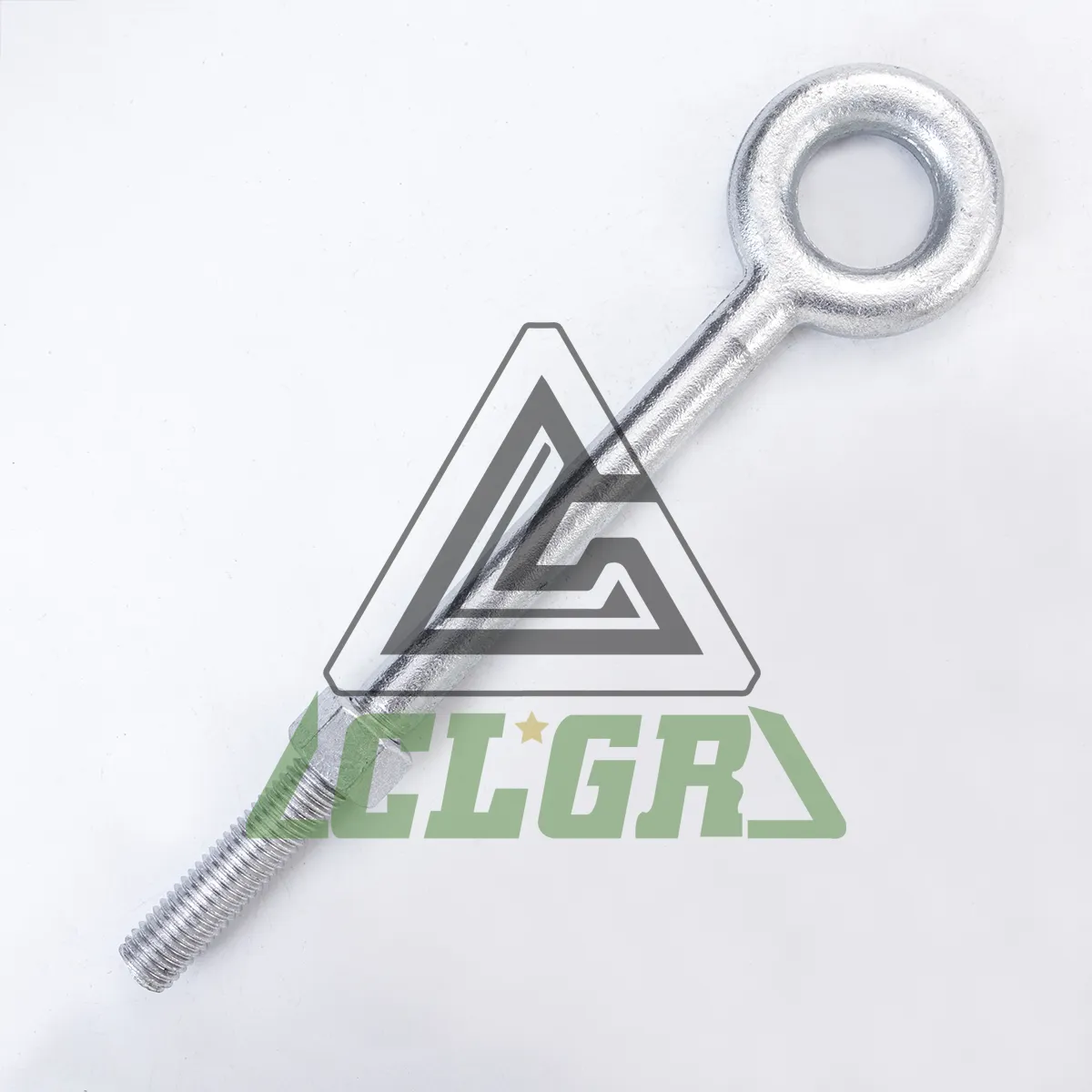

forged shoulder nut eye bolts lg 277 china manufacturer

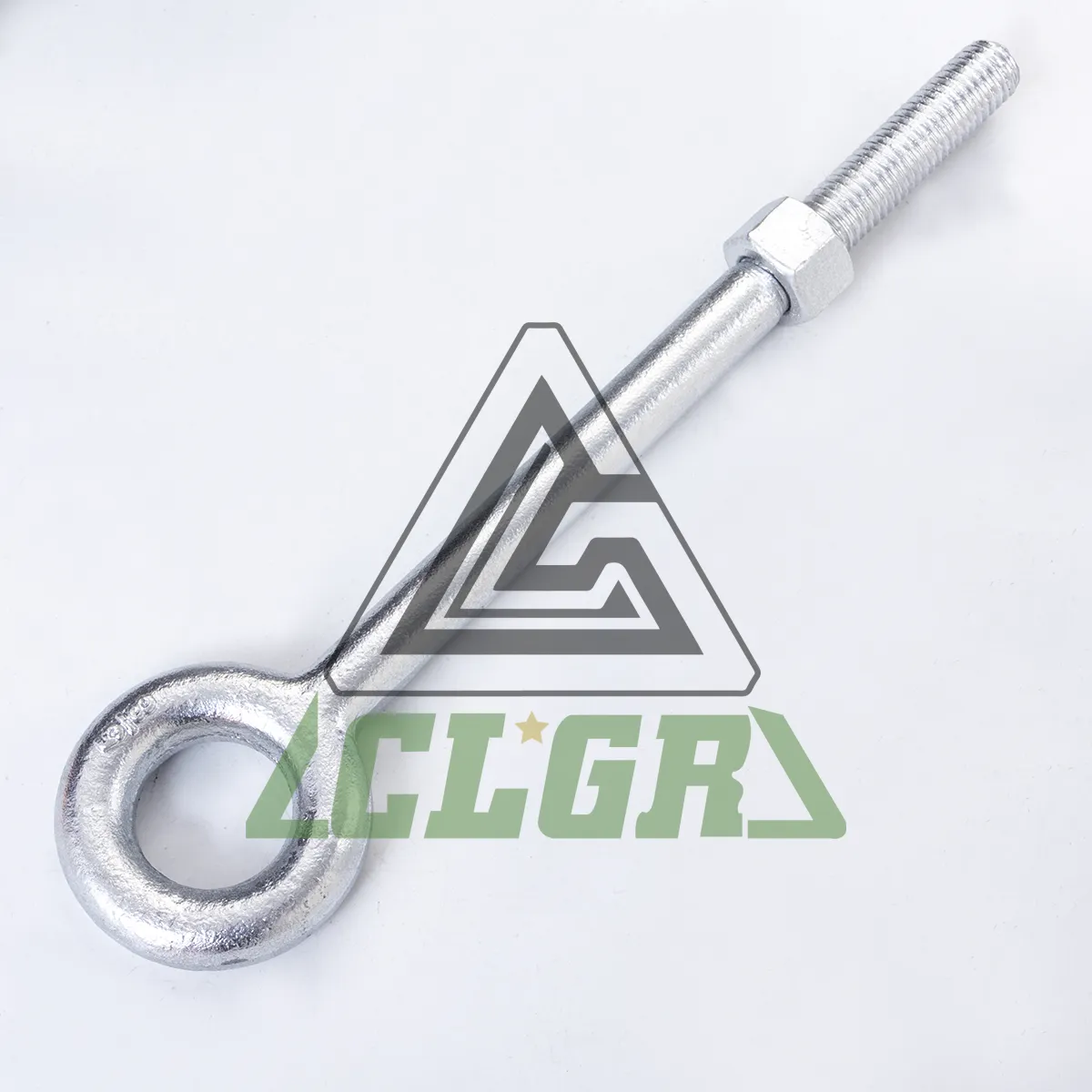

forged shoulder nut eye bolts lg 277 china factory

forged shoulder nut eye blts lg 277 china

 

Overview of Forged Shoulder Nut Eye Bolts LG-277

Brand	CLGR®
Origin	China
Technical Notes	Meets or exceeds all requirements of ASME B30.26
Material	Forged Steel
Processing	Drop Forged, Quenched and Tempered
Finish	Hot Dip Galvanized
Size	1/4 × 2″, 1/4 × 4″, 5/16 × 2 1/4″, 5/16 × 4 1/4″, 3/8 × 2 1/2″, 3/8 × 4 1/2″ 1/2 × 3 1/4″, /2 × 6″, 5/8 × 4″, 5/8 × 6″, 3/4 × 4 1/2″, 3/4 × 6″, 7/8 × 5″ 1 × 6″, 1 × 9″, 1 1/4 × 8″, 1 1/4 × 12″, 1 1/2 × 15″
Safety Factor	5:1
Tips	Furnished with standard Hot Dip galvanized hex nuts.

Specifications of Forged Shoulder Nut Eye Bolts LG-277

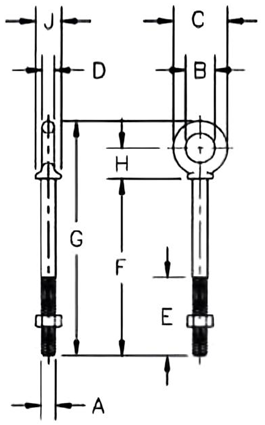

drawing-clgr-of-forged-shoulder-nut-eye-bolts-china-supplier

Part No.	Shank Dia & Length (in)	Working Load Limit (lbs)	Weight per 100 (lbs)	Dimensions (in)



				A	B	C	D	E	F	G	H	J
CRLG277EB101	1/4 × 2″	650	6.6	0.25	0.5	0.88	0.19	1.5	2	2.94	0.5	0.47
CRLG277EB102	1/4 × 4″	650	9.1	0.25	0.5	0.88	0.19	2.5	4	4.94	0.5	0.47
CRLG277EB103	5/16 × 2 1/4″	1200	12.5	0.31	0.62	1.12	0.25	1.5	2.25	3.5	0.69	0.56
CRLG277EB104	5/16 × 4 1/4″	1200	18.8	0.31	0.62	1.12	0.25	2.5	4.25	5.5	0.69	0.56
CRLG277EB105	3/8 × 2 1/2″	1550	21.4	0.38	0.75	1.38	0.31	1.5	2.5	3.97	0.78	0.66
CRLG277EB106	3/8 × 4 1/2″	1550	25.3	0.38	0.75	1.38	0.31	2.5	4.5	5.97	0.78	0.66
CRLG277EB107	1/2 × 3 1/4″	2600	42.6	0.5	1	1.75	0.38	1.5	3.25	5.12	1	0.91
CRLG277EB108	1/2 × 6″	2600	56.8	0.5	1	1.75	0.38	3	6	7.88	1	0.91
CRLG277EB109	5/8 × 4″	5200	68.6	0.62	1.25	2.25	0.5	2	4	6.44	1.31	1.12
CRLG277EB110	5/8 × 6″	5200	102.4	0.62	1.25	2.25	0.5	3	6	8.44	1.31	1.12
CRLG277EB111	3/4 × 4 1/2″	7200	144.5	0.75	1.5	2.75	0.62	2	4.5	7.44	1.56	1.38
CRLG277EB112	3/4 × 6″	7200	167.5	0.75	1.5	2.75	0.62	3	6	8.94	1.56	1.38
CRLG277EB113	7/8 × 5″	10600	225	0.88	1.75	3.25	0.75	2.5	5	8.46	1.84	1.56
CRLG277EB114	1 × 6″	13300	366.3	1	2	3.75	0.88	3	6	9.97	2.09	1.81
CRLG277EB115	1 × 9″	13300	422.5	1	2	3.75	0.88	4	9	12.97	2.09	1.81
CRLG277EB116	1 1/4 × 8″	21000	650	1.25	2.5	4.5	1	4	8	12.72	2.47	2.28
CRLG277EB117	1 1/4 × 12″	21000	795	1.25	2.5	4.5	1	4	12	16.72	2.47	2.28
CRLG277EB118	1 1/2 × 15″	24000	1425	1.5	3	5.5	1.25	6	15	20.75	3	2.75

Warning:

Always inspect eye bolt before use.

Never use eye bolt that shows signs of wear or damage.

Never machine, grind, or cut eye bolt.

Always screw eye bolt down completely for proper seating.
