CLGR® Grade 80 Alloy Screw Pin Chain Shackle

Name: CLGR® Grade 80 Alloy Screw Pin Chain Shackle
Brand: CLGR®

CLGR® Grade 80 Alloy Screw Pin Chain Shackle also known as Dee shackle with screw pin.

Featuring a 5:1 safety factor and a secure screw pin design, it ensures reliable performance under extreme loads.

The shackle is drop-forged, quenched, and tempered for maximum durability, with a hot-dip galvanized body and powder-coated pin providing exceptional corrosion resistance.

This Grade 80 alloy steel chain shackle is engineered for superior strength and safety in heavy-duty lifting, rigging, and marine applications.

Available in sizes from 5/16" to 2", with custom specifications and markings supported to meet project requirements.

To Get A Quote >

clgr grade 80 alloy screw pin chain shackle

clgr grade 80 alloy screw pin chain shackle china factory

clgr grade 80 alloy screw pin chain shackle china supplier

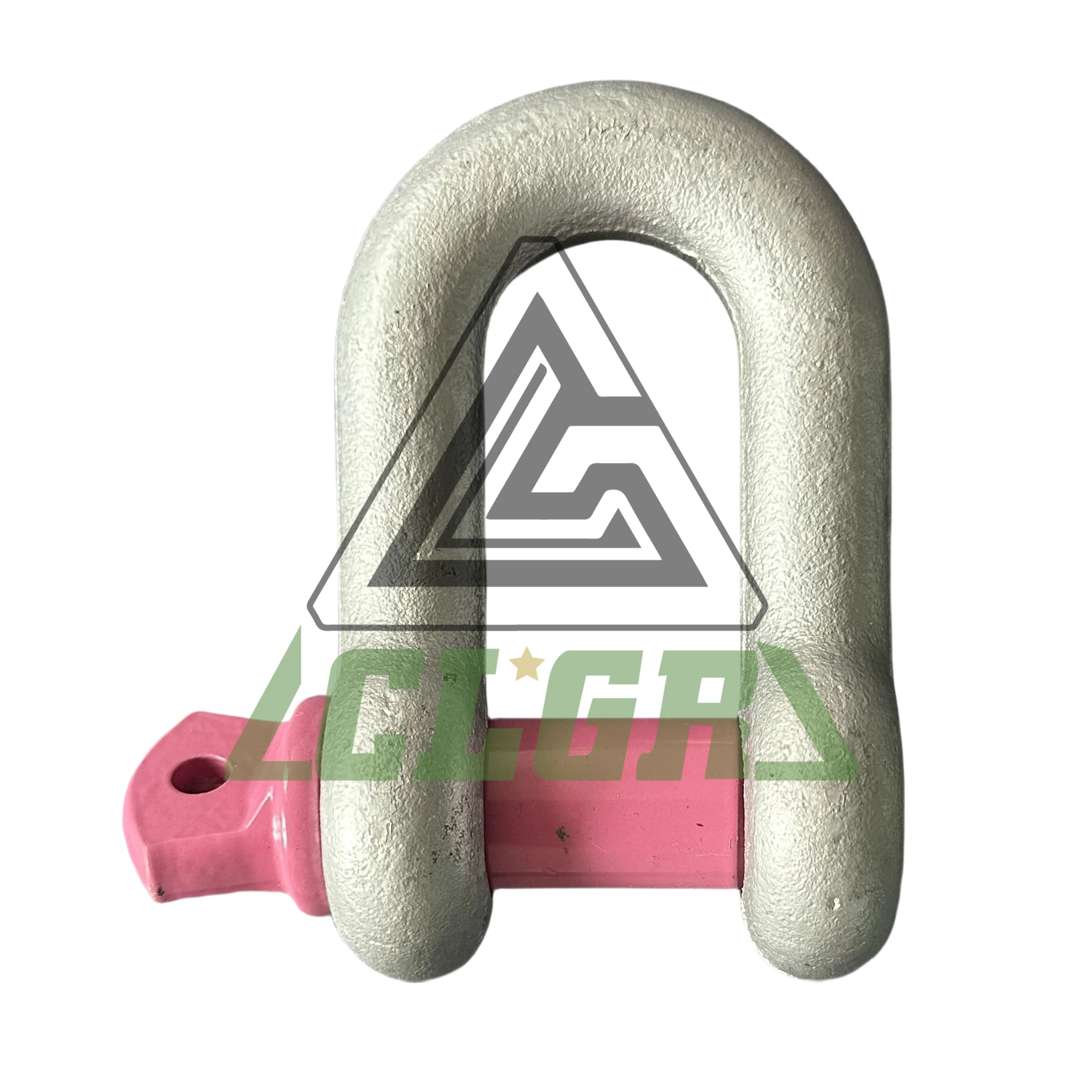

clgr grade 80 alloy screw pin chain shackle d shackle

 

Overview of Grade 80 Alloy Screw Pin Chain Shackle

Brand	CLGR®
Origin	China
Grade	Grade 80
Technical Notes	Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Safety Factor	5: 1
Material	Superior Alloy Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized Pin: Powder Coated
Size	5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”
Tips	Special specification and marks can be made according to customers' requirements

Specifications of Grade 80 Alloy Screw Pin Chain Shackle

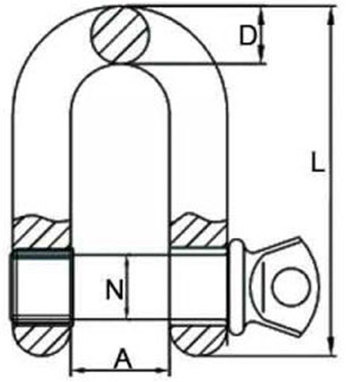

Part No.	Size	Weight/LBS	WLL/T	B.L/T	A±1.5	D±1	L±3	N
CR-8-CS+S-5/16	5/16″	0.17	1.2	6	13.5	8	48.5	9.5
CR-8-CS+S-3/8	3/8″	0.28	1.6	8	16.8	9.7	58.4	11
CR-8-CS+S-7/16	7/16″	0.43	2.5	12.5	19	11.2	67.6	13
CR-8-CS+S-1/2	1/2′	0.59	3.3	16.5	20.6	12.7	77	16
CR-8-CS+S-5/8	5/8″	1.25	5	25	27	17.5	97.3	19
CR-8-CS+S-3/4	3/4″	2.63	7	35	32	20.6	116.6	22
CR-8-CS+S-7/8	7/8″	3.16	9.5	47.5	36.6	24.6	135.4	25
CR-8-CS+S-1/1	1″	4.75	12.5	62.5	43	27	152.4	28
CR-8-CS+S-1-1/8	1-1/8″	6.75	15	75	46	31.8	172.4	32
CR-8-CS+S-1-1/4	1-1/4″	9.06	18	90	51.6	35	190.5	35
CR-8-CS+S-1-3/8	1-3/8″	11.63	21	105	57	35	206.8	38
CR-8-CS+S-1-1/2	1-1/2″	15.95	30	150	60.5	41	230.1	42
CR-8-CS+S-1-3/4	1/3/4″	26.75	40	200	73.2	53.8	279	51
CR-8-CS+S-2/1	2″	42.31	55	275	82.5	61	324.6	57
