CLGR® Grade 80 Alloy Bolt Type Chain Shackle

Name: CLGR® Grade 80 Alloy Bolt Type Chain Shackle
Brand: CLGR®

CLGR® Grade 80 Alloy Bolt Type Chain Shackle also known as G80 safety pin D shackle, Alloy steel lifting shackle, Bolt type chain shackle, Bolt shackle, G-209 shackle and Chain shackle with bolt pin.

Certified to U.S. Federal Specifications, this Grade 80 alloy steel chain shackle is engineered for superior strength and safety in heavy-duty lifting, rigging, and marine applications.

Featuring a 5:1 safety factor and a bolt-type pin design, it ensures secure, reliable connections under extreme loads.

The shackle is drop-forged, quenched, and tempered for maximum durability, with a hot-dip galvanized body and powder-coated pin providing exceptional corrosion resistance.

Ideal for construction, offshore, and industrial use, it is available in sizes from 5/16" to 2".

Custom specifications and markings are supported to meet project requirements.

To Get A Quote >

CLGR® Grade 80 Alloy Bolt Type Chain Shackle

clgr grade 80 alloy bolt type chain shackle for sale

clgr grade 80 alloy bolt type chain shackle china factory

clgr grade 80 alloy bolt type chain shackle china manufacturer

clgr grade 80 alloy bolt type chain shackle china supplier

 

Overview of Grade 80 Alloy Bolt Type Chain Shackle

Brand	CLGR®
Origin	China
Grade	G80
Technical Notes	Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Safety Factor	5: 1
Material	Superior Alloy Steel
Processing	Drop Forged / Quenched and Tempered
Finish	Body: Hot Dipped Galvanized Pin: Powder Coated
Size	5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”, 7/8”, 1”, 1-1/8”, 1-1/4”, 1-3/8”, 1-1/2”, 1-3/4”, 2”
Tips	Special specification and marks can be made according to customers’ requirements

Specifications of Grade 80 Alloy Bolt Type Chain Shackle

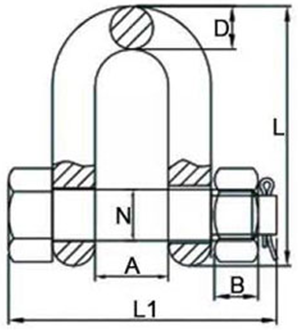

drawing-clgr-of-grade-80-alloy-bolt-type-chain-shackle

Part No.	Size	Wight/LBS	WLL/T	B.L/T	A±1.5	D±1	N	L±3	L1±3	B
CR-8-CS+B-5/16	5/16″	0.23	1.2	6	13.5	8	9.5	48.5	50.5	8.4
CR-8-CS+B-3/8	3/8″	0.33	1.6	8	16.8	9.7	11	58.4	62	10.8
CR-8-CS+B-7/16	7/16″	0.49	2.5	12.5	19	11.2	13	67.6	70	12.8
CR-8-CS+B-1/2	1/2″	0.75	3.3	16.5	20.6	12.7	16	77	79.9	14.8
CR-8-CS+B-5/8	5/8″	1.47	5	25	27	17.5	19	97.3	1101.5	18
CR-8-CS+B-3/4	3/4″	2.52	7	35	32	20.6	22	116.6	117.5	19.4
CR-8-CS+B-7/8	7/8″	3.85	9.5	47.5	36.6	24.6	25	135.4	136	21.5
CR-8-CS+B-1/1	1″	5.55	12.5	62.5	43	27	28	152.4	153.5	23.8
CR-8-CS+B-1-1/8	1-1/8″	7.6	15	75	46	31.8	32	172.4	171.5	25.6
CR-8-CS+B-1-1/4	1-1/4″	10.81	18	90	51.6	35	35	190.5	192	31
CR-8-CS+B-1-3/8	1-3/8″	13.75	21	105	57	35	38	206.8	202	33.4
CR-8-CS+B-1-1/2	1-1/2″	18.5	30	150	60.5	41	42	230.1	222	34
CR-8-CS+B-1-3/4	1-3/4″	31.4	40	200	73.2	53.8	51	279	278	38
CR-8-CS+B-2/1	2″	46.75	55	275	82.5	61	57	324.6	307	45
