CLGR® Nonrated Screw Pin Anchor Shackle U.S. Type

Name: CLGR® Nonrated Screw Pin Anchor Shackle U.S. Type
Brand: CLGR®

CLGR® Nonrated Screw Pin Anchor Shackle U.S. Type also known as Non-rated bow shackle screw pin, Unrated anchor shackle, ASME B30.26 shackle, Schraubbolzen-Ankerschäkel and Grillete de anclaje con pasador de rosca.

This nonrated screw pin anchor shackle complies with U.S. Federal Specifications and is crafted from superior carbon steel with an alloy steel screw pin for enhanced durability.

Forged and heat-treated through quenching and tempering, it delivers reliable performance for general-purpose lifting, rigging, and marine applications.

Available in hot-dip galvanized, powder-coated, or zinc-plated finishes to withstand corrosive environments.

Sizes range from 3/16" to 2-1/2" to accommodate diverse project needs. Custom specifications and markings are offered to meet unique customer requirements.

To Get A Quote >

Overview of Nonrated Screw Pin Anchor Shackle U.S. Type

Brand	CLGR®
Origin	China
Technical Notes	Anchor shackle conform to U.S. Federal Specification
Material	Body: Superior Carbon Steel Screw Pin: Alloy Steel / Superior Carbon Steel
Safety Factor	6 : 1 / 4 : 1
Processing	Body: Forged / Quenched and Tempered Screw Pin: hot/cold forging /Quenched and Tempered
Finish	Body: Hot Dipped Galvanized / Powder Coated / Zinc Plated Screw Pin: Powder Coated / Zinc Plated
Size	3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8", 1/1/4", 1-3/8", 1-1/2", 1-3/4", 2", 2-1/2" anchor shackle screw pin
Tips	Special specification and marks can be made according to customers' requirements

Specifications of Nonrated Screw Pin Anchor Shackle U.S. Type

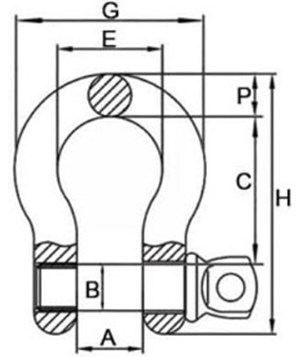

drawing-of-clgr-nonrated-screw-pin-anchor-shackle-u.s.-type

Part No.	Size	WLL	Weight	Dimensions (in.)							Tolerance +/-
Part No.	(in.)	(t)	(lbs)	A	B	C	E	G	H	P	C	A
CR-NR-SPBS-3/16	3/16	1/3	0.06	0.38	0.25	0.88	0.6	0.98	1.47	0.19	0.06	0.06
CR-NR-SPBS-1/4	1/4	1/2	0.1	0.47	0.31	1.13	0.78	1.28	1.84	0.25	0.06	0.06
CR-NR-SPBS-5/16	5/16	3/4	0.19	0.53	0.38	1.22	0.84	1.47	2.09	0.31	0.06	0.06
CR-NR-SPBS-3/8	3/8	1	0.31	0.66	0.44	1.44	1.03	1.78	2.49	0.38	0.13	0.06
CR-NR-SPBS-7/16	7/16	1-1/2	0.38	0.75	0.5	1.69	1.16	2.03	2.91	0.44	0.13	0.06
CR-NR-SPBS-1/2	1/2	2	0.72	0.81	0.63	1.88	1.31	2.31	3.28	0.5	0.13	0.06
CR-NR-SPBS-5/8	5/8	3-1/4	1.37	1.06	0.75	2.38	1.69	2.94	4.19	0.69	0.13	0.06
CR-NR-SPBS-3/4	3/4	4-3/4	2.35	1.25	0.88	2.81	2	3.5	4.97	0.81	0.25	0.06
CR-NR-SPBS-7/8	7/8	6-1/2	3.62	1.44	1	3.31	2.28	4.03	5.83	0.97	0.25	0.06
CR-NR-SPBS-1/1	1	8-1/2	5.03	1.69	1.13	3.75	2.69	4.69	6.56	1.06	0.25	0.06
CR-NR-SPBS-1-1/8	1-1/8	9-1/2	7.41	1.81	1.25	4.25	2.91	5.16	7.47	1.25	0.25	0.06
CR-NR-SPBS-1-1/4	1-1/4	12	9.5	2.03	1.38	4.69	3.25	5.75	8.25	1.38	0.25	0.06
CR-NR-SPBS-1-3/8	1-3/8	13-1/2	13.53	2.25	1.5	5.25	3.63	6.38	9.16	1.5	0.25	0.13
CR-NR-SPBS-1-1/2	1-1/2	17	17.2	2.38	1.63	5.75	3.88	6.88	10	1.62	0.25	0.13
CR-NR-SPBS-1-3/4	1-3/4	25	27.78	2.88	2	7	5	8.86	12.34	2.25	0.25	0.13
CR-NR-SPBS-2/1	2	35	45	3.25	2.25	7.75	5.75	9.97	13.68	2.4	0.25	0.13
CR-NR-SPBS-2-1/2	2-1/2	55	85.75	4.13	2.75	10.5	7.25	12.87	17.84	3.13	0.25	0.25
