CLGR® JIS Type Screw Pin D Commercial Shackle

Name: CLGR® JIS Type Screw Pin D Commercial Shackle
Brand: CLGR®

CLGR® JIS Type Screw Pin D Commercial Shackle also known as JIS type D shackle, JIS standard commercial type shackle, JIS B2801 shackle, Electric galvanized shackle for construction and JIS Schraubbolzen-D-Schäkel.

Manufactured in compliance with JIS B2801-1977 standards, this commercial shackle is open die forged from mild steel and finished with electric galvanizing for durable corrosion resistance.

Designed for general-purpose industrial, marine, and construction applications, it is available in multiple types including:

• Screw Pin Chain Shackle “D” Type (with/without collar)

• Screw Pin Anchor Shackle (with/without collar)

• Oval Pin Chain Shackle

• Carver Shackle with counter sunk slotted head

• Trawling Chain Shackle

Sizes range from 4.8mm to 75mm (3/16" to 3") to meet diverse project requirements. Custom specifications and markings are available upon request.

To Get A Quote >

clgr® jis type screw pin d commercial shackle

clgr® jis type screw pin d commercial shackle china manufacturer

clgr jis type screw pin d commercial shackle china supplier

 

Overview of JIS Type Screw Pin D Commercial Shackle

Brand	CLGR®
Origin	China
Technical Notes	JIS B2801-1977
Material	Mild steel
Processing	Open Die Forged
Finish	Electric Galvanized
Size	4.8mm, 6mm, 8mm, 9mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 32mm, 38mm, 44mm, 50mm, 65mm, 75mm 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″, 1-1/4″, 1-1/2″, 1-3/4″, 2″, 2-1/2″, 3″

Specifications of JIS Type Screw Pin D Commercial Shackle

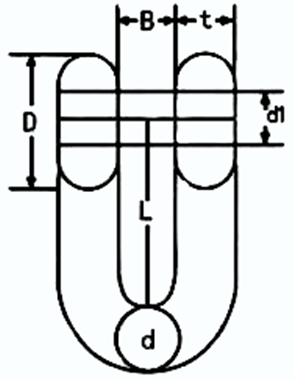

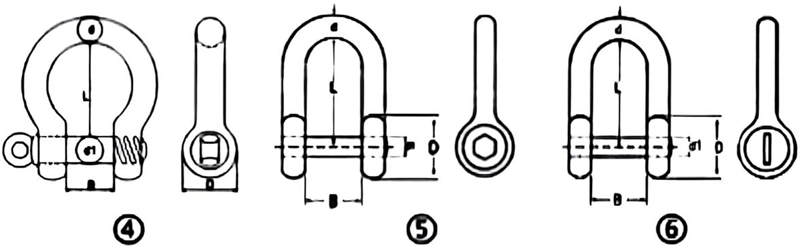

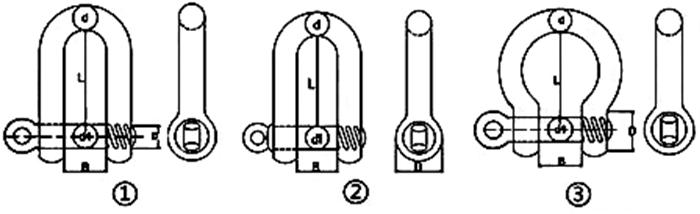

drawing-of-jis-type-screw-pin-d-commercial-shackle

Part No.	Size		B	D	L	d1	SWL	①	②	③	④	⑤	⑥	⑦
Part No.	mm	in	mm				ton	kg	kg	kg	kg	kg	kg	kg
CRJIS101	4.8	3/16	10	10	18.5	5	0.09	0.013	0.014	0.024	0.026	——	——	——
CRJIS102	6	1/4	12	11	25	6.5	0.15	0.026	0.028	0.062	0.028	——	——	——
CRJIS103	8	5/16	14	15	31	8.5	0.25	0.046	0.049	0.062	0.065	——	——	——
CRJIS104	9	3/8	18	17	36	10	0.4	0.07	0.049	0.077	0.08	0.073	0.065	0.075
CRJIS105	12	1/2	24	23	46	13	0.6	0.17	0.18	0.19	0.2	0.15	0.17	0.186
CRJIS106	16	5/8	30	32	59	17	0.8	0.4	0.42	0.475	0.495	0.37	0.41	0.455
CRJIS107	19	3/4	36	37	74	20	1	0.7	0.72	0.78	0.8	0.62	0.67	0.78
CRJIS108	22	7/8	43	43	86	23	1.5	1.1	1.18	1.18	1.26	1	1.1	1.4
CRJIS109	25	1	47	50	95	27	2	1.7	1.8	1.8	1.9	1.53	1.6	1.75
CRJIS110	28	11/8	55	56	110	30	2.5	2.4	2.5	2.55	2.65	2.2	2.35	2.4
CRJIS111	32	11/4	64	64	130	34	3.2	3.6	3.7	3.9	4	3.2	3.35	3.6
CRJIS112	38	11/2	76	76	145	40	4.2	6	6.1	6.9	7	5.25	5.7	6
CRJIS113	44	13/4	80	90	160	47	6.5	10	——	——	10	——	——	——
CRJIS114	50	2	90	100	185	53	8	12	——	——	12.5	——	——	——
CRJIS115	65	21/2	110	130	240	68	15	28	——	——	——	——	——	——
CRJIS116	75	3	120	150	300	78	20	44	——	——	——	——	——	——
