CLGR® Japanese Type Wire Rope Cable Grip

Name: CLGR® Japanese Type Wire Rope Cable Grip
Brand: CLGR®

CLGR® Japanese Type Wire Rope Cable Grip also known as Wire Rope Self-Gripping Pliers, Cable wire rope grip puller and Wire Rope Grip Puller, parallel jaws.

Our Japanese Type Wire Rope Cable Grip is manufactured from specially heat-treated forged steel with yellow zinc finish, available in 1-ton, 2-ton and 3-ton load capacities for precision cable pulling operations.

These self-gripping pliers feature parallel jaw design that prevents cable damage during telecommunications fiber optic installation and power line stringing projects where surface protection is critical.

The guide mechanism ensures secure operation when tensioning agricultural fence wires and industrial control cables, allowing instant release after completing electrical conduit pulling tasks.

Suitable for JIS standard applications including overhead communication cable installation and factory machinery wiring maintenance.

All grips undergo rigorous testing to ensure reliable performance in construction and utility projects requiring precise tension control.

To Get A Quote >

clgr japanese type wire rope cable grip china manufacturer supplier factory

Overview of Japanese Type Wire Rope Cable Grip

Brand	CLGR®
Origin	China
Material	Forged Steel
Technical Notes	Japanese Type
Processing	Forged / Stamped
Finish	Yellow Zinc
Size	1ton, 2ton, 3ton

Specifications of Japanese Type Wire Rope Cable Grip

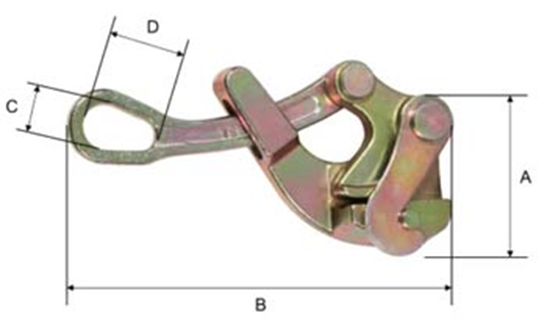

drawing-of-japanese-type-wire-rope-cable-grip

Part No.	Rated Load	Grip Range(mm)	Main Size(mm)				N.W. (kg)
Part No.	Rated Load	Grip Range(mm)	A	B	C	D	N.W. (kg)
CRWRCGJT1000	1 Ton	2.5-16	71	189	25	37	0.75
CRWRCGJT2000	2 Ton	4-22	91	248	25	42	1.4
CRWRCGJT3000	3 Ton	16-32	129	296	30	50	2.5
